4.3 Dielectric Strength (HIPOT) Testing

For dielectric strength (HIPOT) testing in the field, users must remove the metal jumper located on

terminal 2, 4, and 6 of the power supply terminal block. This metal jumper connects transient

suppression circuitry to chassis ground and must be removed in order to avoid damage to transient

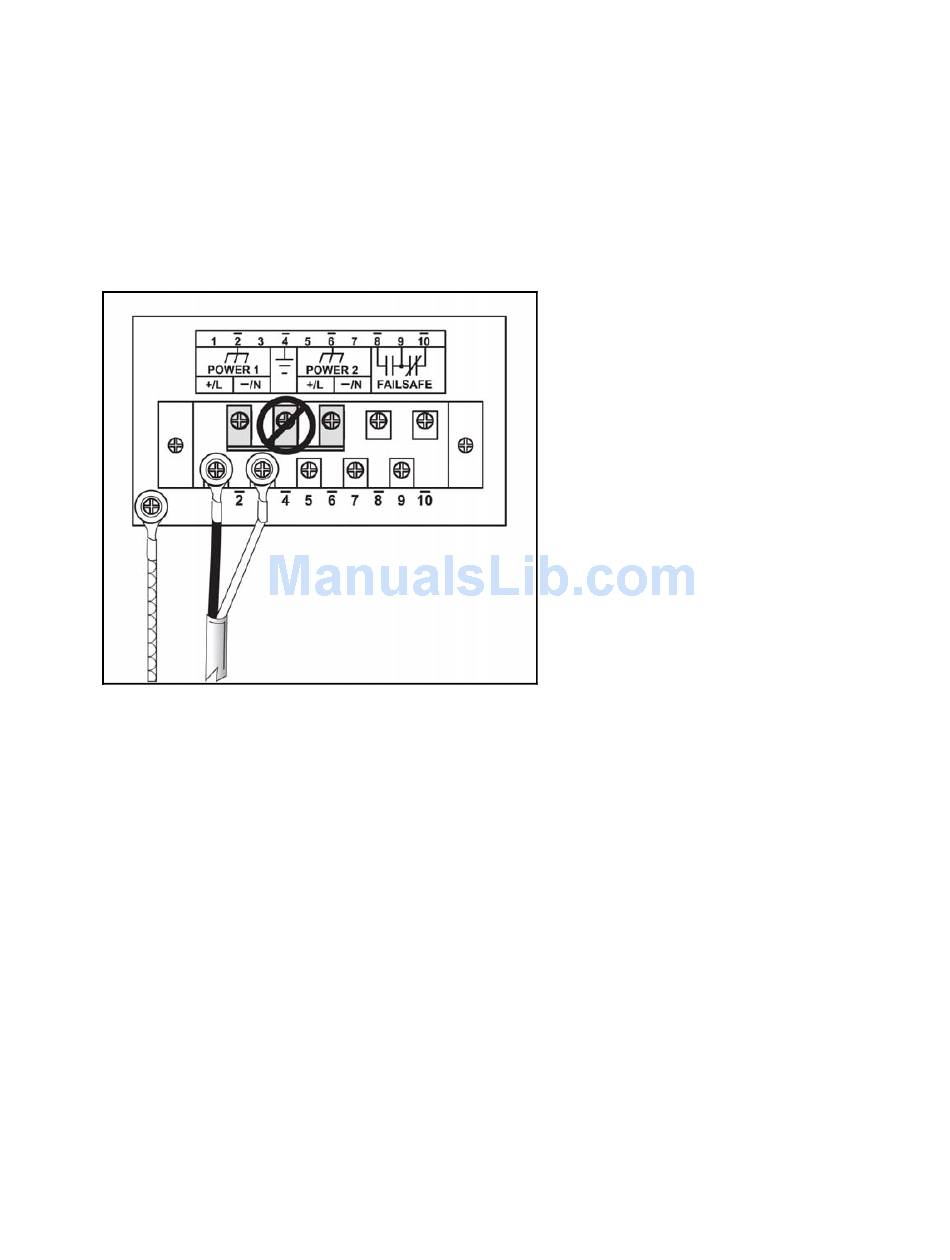

suppression circuitry during HIPOT testing. Figure 9 shows the proper HIPOT test connections

and should be followed to avoid damage to the device.
