Energy recovery device disassembling and assembling

Hide thumbs Also See for iSave 21:

Service guide

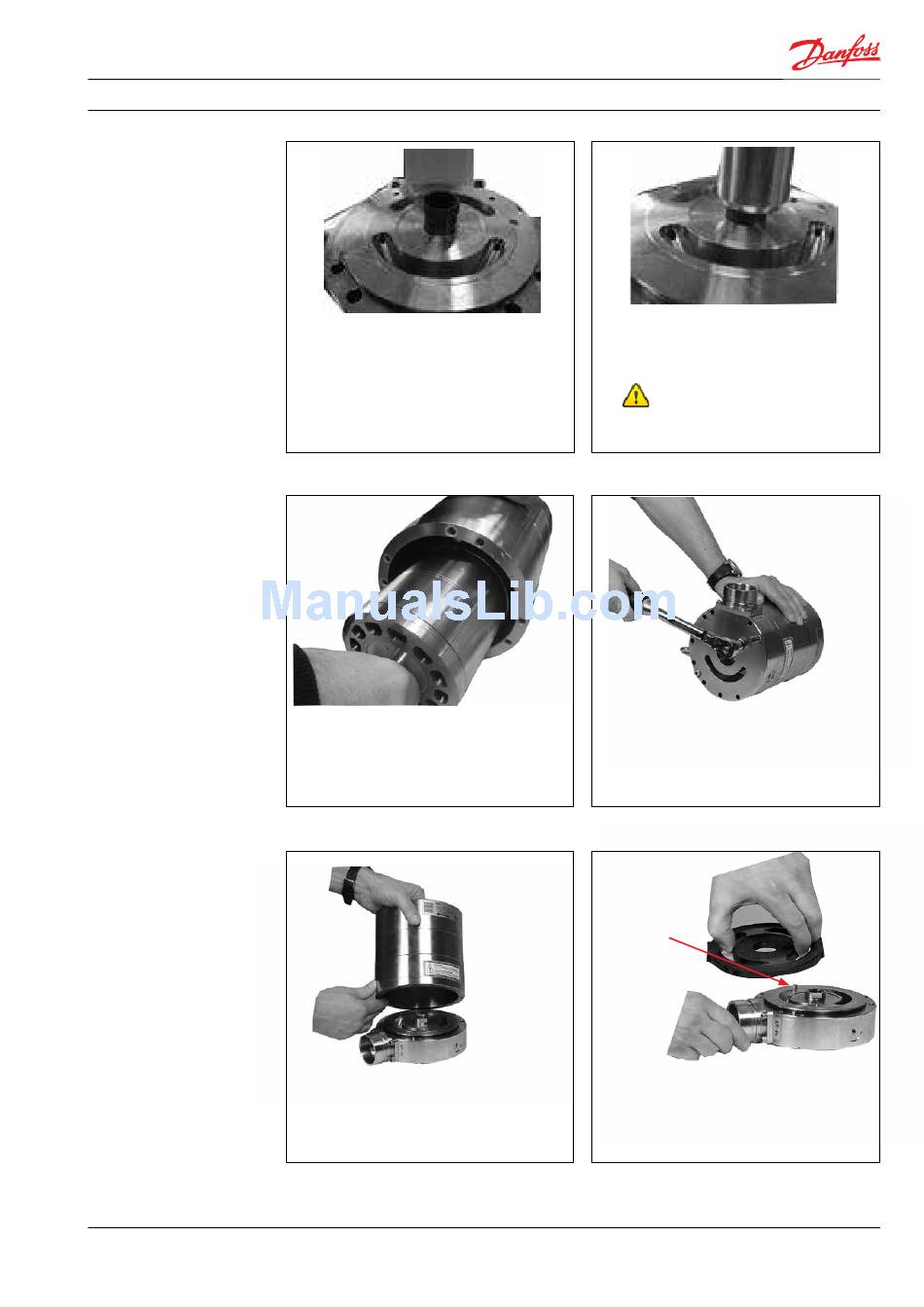

Disassembling and assembling iSave 21

If bearing in flange need to be changed

gently press the bearing out from the

back side with a tube or a drift.

Place the new bearing in the hole in the

flange.

Gently remove the cylinder barrel.

11.

Gently remove the housing.

Note: Loose parts on the inside of the flange.

180R9219 | 521B1171 | DKCFN.PI.003.K4.02 | 03.2016

Lubricate the new bearing with clean

filtered water. With use of a hand press

gently press the new bearing in place

until it is in line with the flange surface.

Do not use a hammer!

10.

Unscrew the bolts in the flange.

12.

Remove port plate and pin.
