Service guide

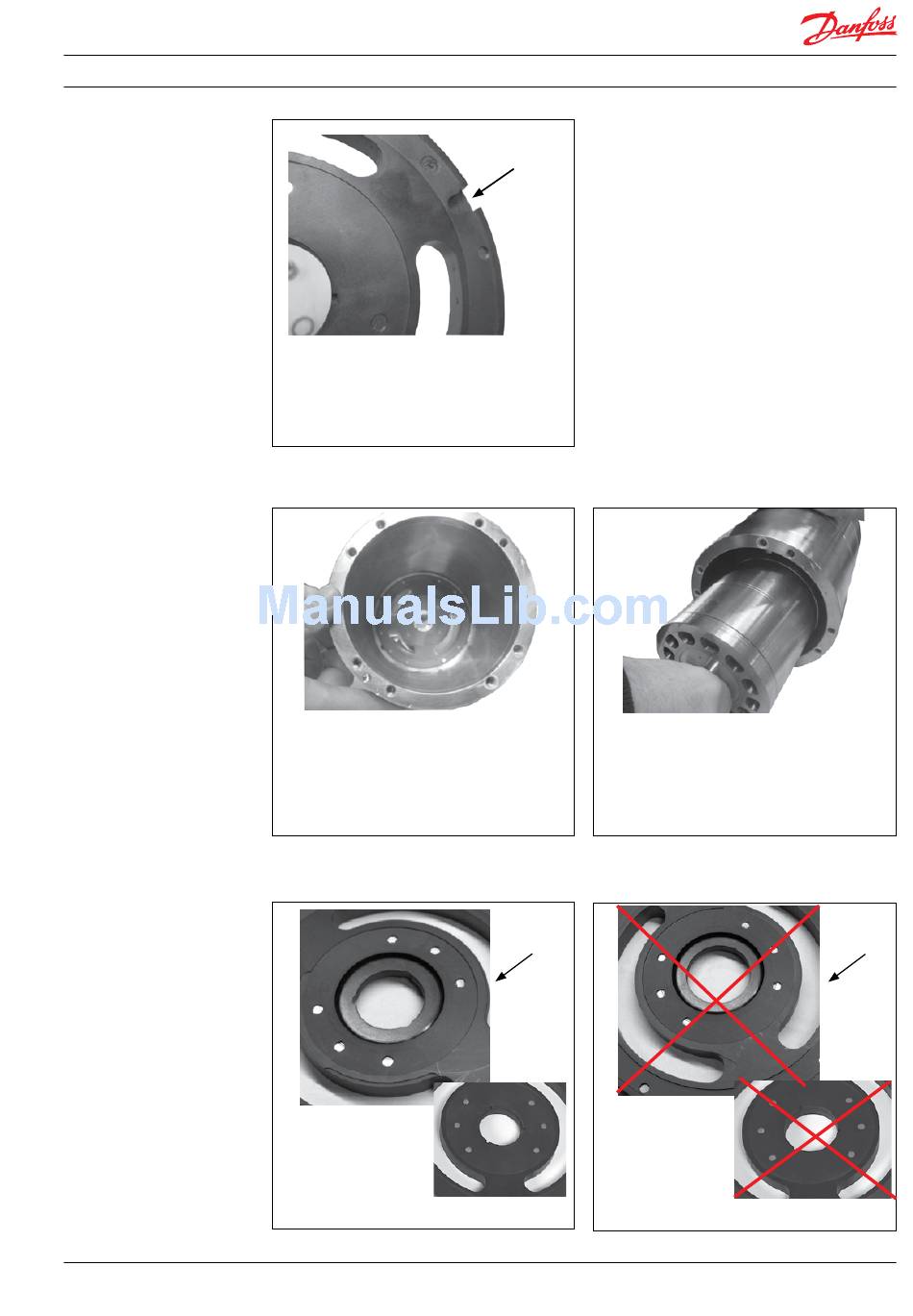

Disassembling and assembling iSave 21
11.
Location hole in port plate.
There are two different port plates in the iSave. One of them can be mounted on both flanges in
the pressure exchanger. Make sure that they are assembled on the right flange.
12.
Position the port plate over the guide pin.
Note: Make sure that the guide pin is
located in the locating hole in the port
plate.
Correct - small
center hole
14.
Check the port
plate is correct -
small center hole.
180R9219 | 521B1171 | DKCFN.PI.003.K4.02 | 03.2016
13.
Gently guide the cylinder barrel into the
bearing in the flange.
New design
Old design
15.
Wrong! large
center hole.
New design
Old design
9
