2.1 Preparing Before Use

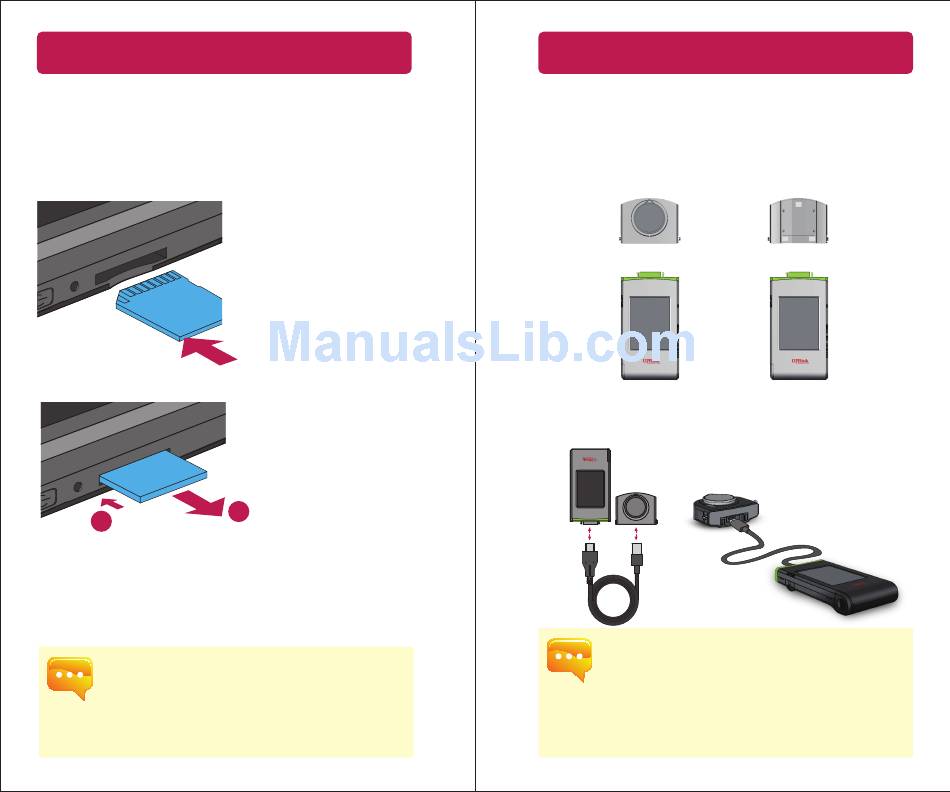

Install SD card ：
You may save measurement data in file of Excel (xls) format and
image data (spectrum and chromaticity coordinates diagram)
in format of (JPG) in SD card with capacity at 1GB or more.
※ Insert SD card in direction as indicated
※ Press to remove SD card
1
1. The SD card features a card latch design to prevent it from
loosening You may feel that the SD card is stuck when it is
inserted in or removed. In case it is like this, pull or push it a little
harder to get it in place or removed. To remove SD card: Press it
as shown in step ①, pull it out after it ejecting a little as shown in
step ②.
07
2
2.1 Preparing Before Use
Connect optical sensor to host ：
See diagram below for reverse installing your optical sensor.
Please power off this product before removing optical sensor
from host then turn around before inserting in host. Power on
this product again after it is fully installed.
+
or
Use Type-C USB cable for remote measurement as shown in
diagram below. Power off product before connecting Type-C
USB cable to it. Power it on again afterwards.
Female
Male
Port
Port
Optical sensor and host are paired before shipment to you. DO
1.
NOT use either of the two with any other PG100N device. If you
have more than one PG100N product, DO NOT mix using these
two.
Please power off this product before getting optical sensor
2.
installed to or uninstalled from host.
Please run background calibration before using it after power on.
3.
+
