Table of Contents
Operations

Assembly Instructions

Safety Latch
Wand
High
Pressure
Hose

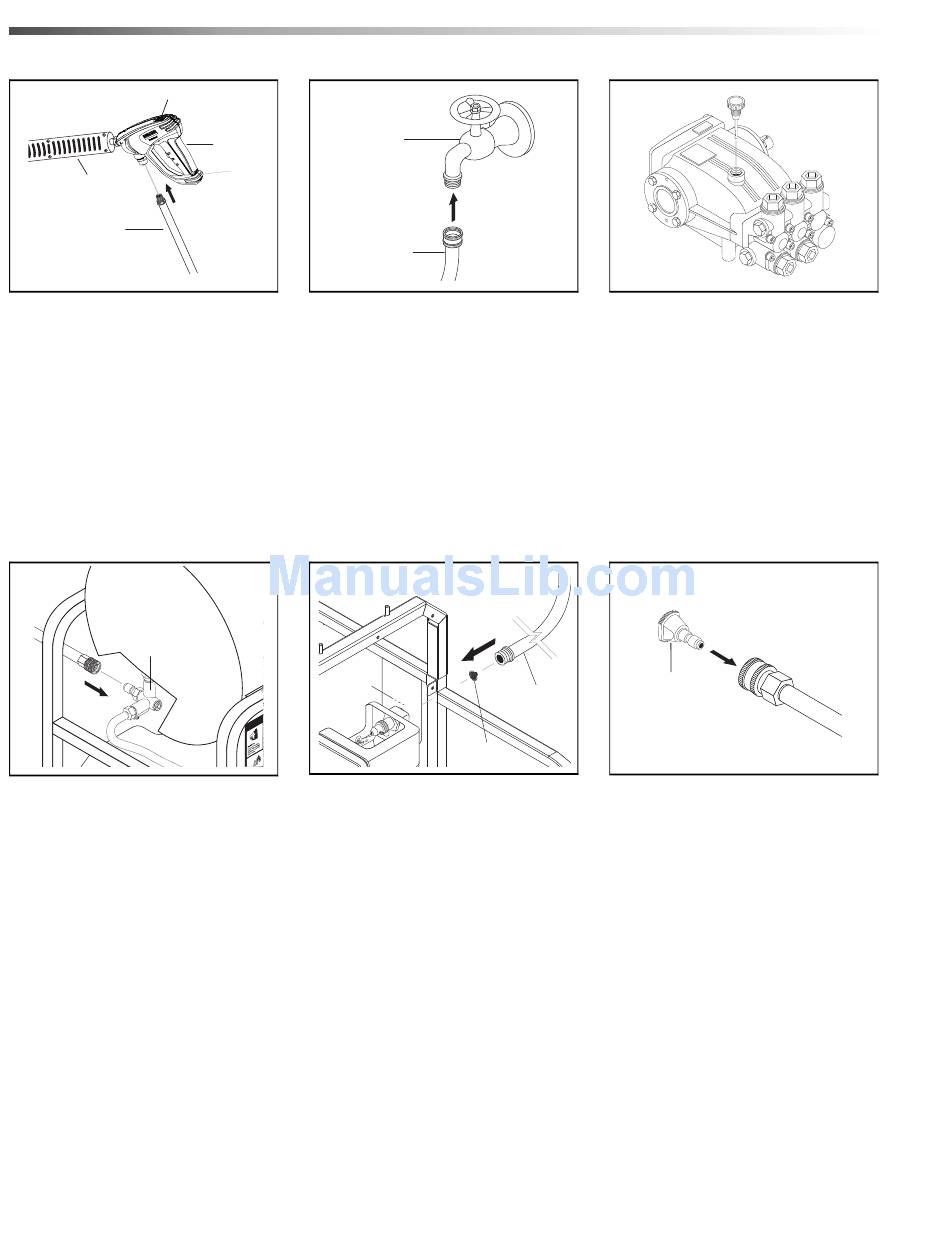

STEP 1: Attach wand and hose to
the spray gun using teflon tape on
threads to prevent leakage.
CAUTION: Never replace nozzles
without engaging the safety
latch on the spray gun trigger.
ATTENTION: Ne jamais
remplacer les buses sans
d'abord mettre le dispositif de
sécurité sur la détente du
pistolet pulvérisateur.
Pump
Discharge
STEP 4: Connect the high pressure
hose to the pump discharge fitting.
Thread twist connect to discharge
fitting by turning clockwise.
10
Cold
Spray
Water
Gun
Source
Garden
Hose
STEP 2: Connect garden hose to
the cold water source.
Water
Inlet
STEP 5: Check inlet filters, remove
debris, then connect the water
supply hose to the float tank inlet
swivel connector and turn on water
supply.
CAUTION: Do not run the pump
without water or pump damage
will result.
ATTENTION: Ne pas faire
fonctionner la pompe sans eau
ou des dégâts de pompe se
produiront
Karcher HDS 600-606 Operator's Manual 9.800-080.0-AC
STEP 3: Remove shipping cap and
install oil dipstick (Depending on
type of shipping, dipstick may
already be installed). Check pump
oil level by using dipstick or
observe oil level in oil window (if
equipped). Use SAE 10W-40
weight oil, non-foaming oil.
High Pressure
Garden
Nozzle
Hose
Inlet
Filter
Note: Before installing pressure
nozzle in wand coupler, run
machine allowing water to flush
through the system until clear.
STEP 6: Remove wand end and
first place the o-ring followed by the
high pressure nozzle as shown.
Replace end of wand.
Wand
