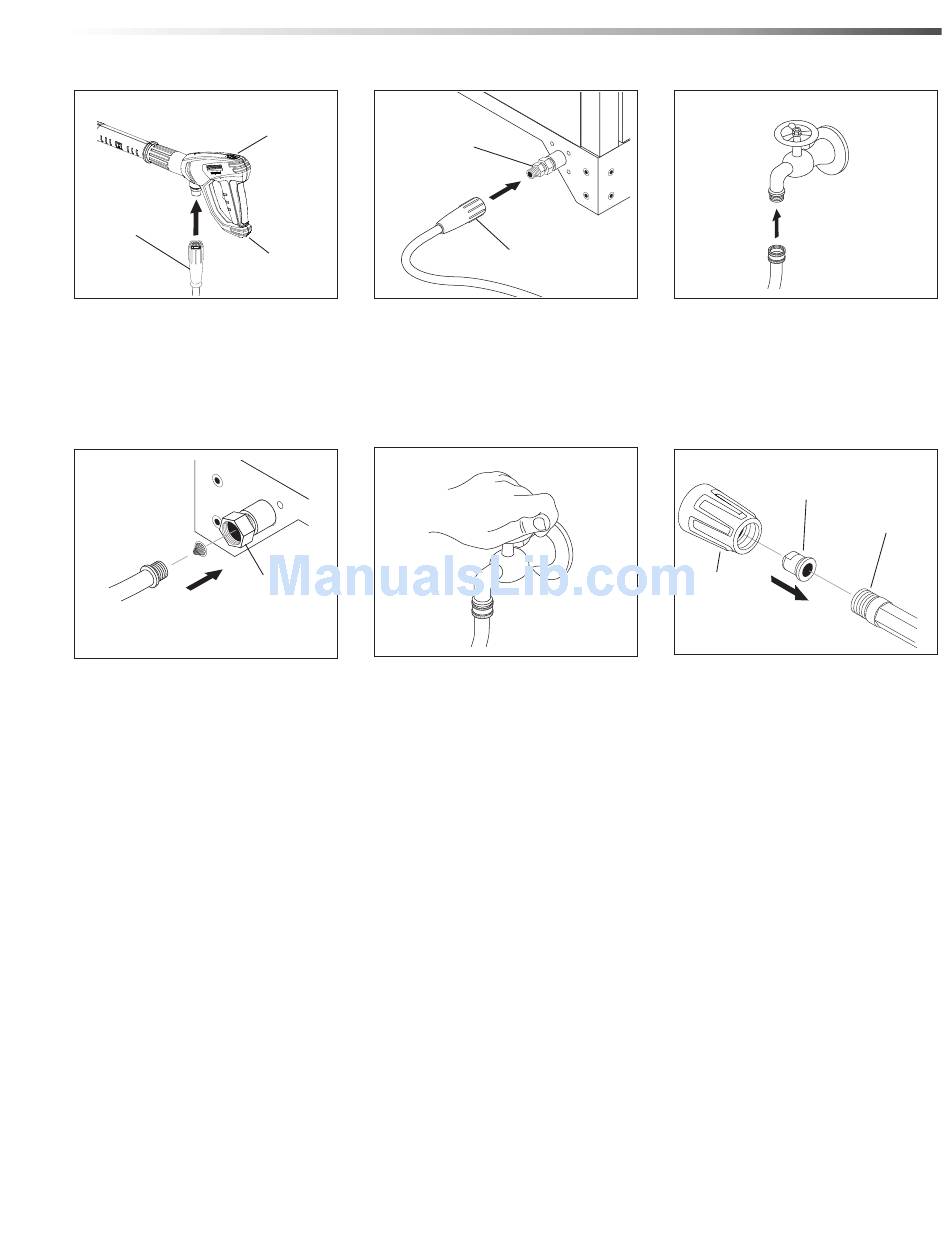

Assembly Instructions

High Pressure
Hose
STEP 1: Attach the high pressure
hose to the spray gun using teflon
tape on hose threads.
Water Inlet
Garden
Hose
STEP 4: Connect the garden hose
to pump water inlet. Inspect inlets.
CAUTION: Do not run the pump
without water or pump damage
will result.
Karcher Liberty HDS Stationary Dealer's Manual 9.801-508.0 - AY
Pump Discharge
Safety
Thread Fitting
Latch
M22
Spray
Gun
STEP 2: Connect the high pressure
hose to the discharge fitting. Twist
hose connector clockwise until tight
on thread fitting.
Pump
STEP 5: Before installing nozzle,
turn on the water supply and run
machine allowing water to run from
the end of the wand until clear.
Turn off machine.
High
Pressure
Hose
STEP 3: Connect garden hose to
the cold water source.
STEP 6: Attach the Power Nozzle
to end of the wand as shown in
picture.
Operations
Cold
Water
Source
Garden
Hose
Pressure
Nozzle
Wand
Guard
21
