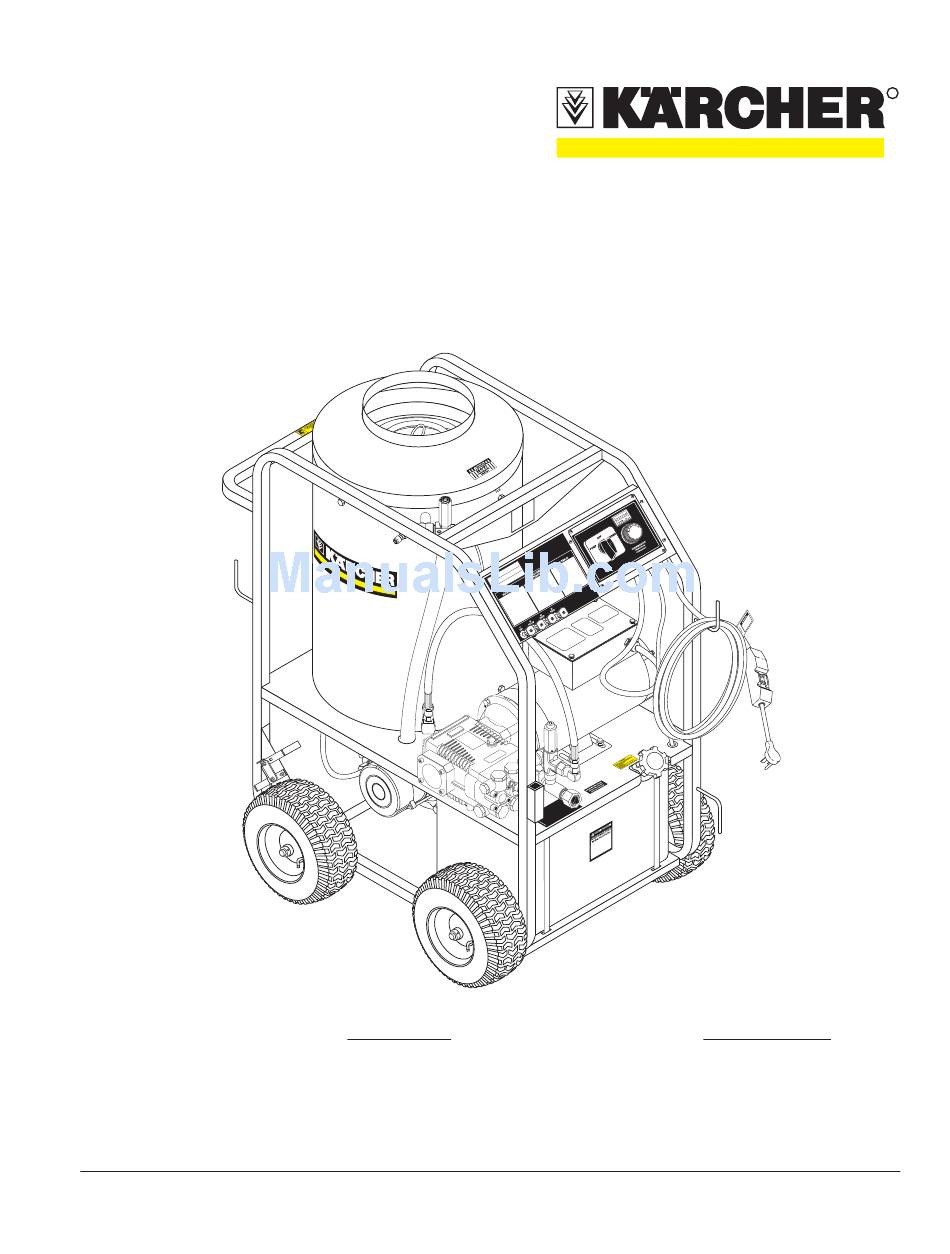

OPERATOR'S MANUAL
HDS 2.0/10 E
HDS 1.9/15 E
HDS 3.5/20 E
To locate your local Kärcher Commercial Pressure Washer Dealer nearest you,
MODEL
Cage
d
Cage
d
Cage
a
visit www.karchercommercial.com
ORDER #
1.575-511.0
1.575-512.0
1.575-513.0
9.800-191.0
R

Advertisement

   Summary of Contents for Kärcher HDS 2.0/10 Ed Cage

  • Page 1 OPERATOR’S MANUAL MODEL ORDER # HDS 2.0/10 E Cage 1.575-511.0 HDS 1.9/15 E Cage 1.575-512.0 HDS 3.5/20 E Cage 1.575-513.0 To locate your local Kärcher Commercial Pressure Washer Dealer nearest you, visit www.karchercommercial.com 9.800-191.0...
  • Page 2: Table Of Contents

    CONTENTS Introduction and Safety Information Component Identification Operating Instructions Preventative Maintenance and Service 9-11 Exploded Views 12-13 Exploded Views Parts List 14-15 Control Panel Exploded View and Parts List 16-18 Hose & Spray Gun Assembly and Parts List Downstream Injector Assembly and Parts List UU1 Unloader Exploded View and Parts List Pump Exploded View and Parts List 20-21...
  • Page 3: Introduction And Safety Information

    INTRODUCTION & IMPORTANT SAFETY INFORMATION DANGER: Improper connection of the equipment- Thank you for purchasing this Pressure Washer. grounding conductor can result in a risk of elec- We reserve the right to make changes at any time trocution. Check with a qualified electrician or without incurring any obligation.
  • Page 4: Important Safety Information

    IMPORTANT SAFETY INFORMATION WARNING: High pressure devel- 10. Keep operating area clear of all persons. WARNING oped by these machines will WARNING: High pressure spray WARNING cause personal injury or equip- can cause paint chips or other ment damage. Keep clear of particles to become airborne nozzle.
  • Page 5 IMPORTANT SAFETY INFORMATION INSTALLATION Place machine in a convenient location providing ample support, draining and room for maintenance. This machine is intended for indoor use. Machine must be stored indoors when not in use. Location: The location should protect the machine from damag- ing environmental conditions, such as wind, rain, and freezing.
  • Page 6: Component Identification

    COMPONENT IDENTIFICATION C AU T I O N H O T WAT E R : Must use insulated spray gun and wand. Nozzle ON - OFF Switch Hour Meter Adjustable Thermostat Downstream Detergent Injector GFCI Wand Holder Fresh Water Faucet (not included) Discharge Nipple...
  • Page 7: Operating Instructions

    OPERATING INSTRUCTIONS Electrical: 5. Insert quick coupler onto discharge nipple and secure by pushing quick coupler collar forward. This machine, when installed, must be electrically 6. Securely attach the desired high pressure nozzle grounded in accordance to local codes. Check for into wand coupler as described in steps 4 and 5.
  • Page 8 OPERATING INSTRUCTIONS 4. Place detergent pick-up tube into container of HOW TO USE THE detergent solution. DETERGENT INJECTOR 5. Turn pressure control handle counterclockwise on the variable pressure wand. This lowers the pres- WARNING: Some detergents sure by directing the water flow through the soap WARNING may be harmful if inhaled or in- nozzle and allows the detergent injector to siphon...
  • Page 9: Preventative Maintenance And Service

    PREVENTATIVE MAINTENANCE AND SERVICE solution of anti-freeze/water into a 5 gallon bucket. PREVENTATIVE MAINTENANCE Place a short section of garden hose into bucket and connect it to machine. Elevate bucket and turn pump on 1. Use clean fuel - kerosene, No. 1 home hearing to siphon anti-freeze through machine.
  • Page 10: Fuel Pressure Adjustment

    PREVENTATIVE MAINTENANCE AND SERVICE Burner Nozzle: the soot on the coil must be washed off after coil has been removed using the following steps: Keep the tip free of surface deposits by wiping it with a clean, solvent-saturated cloth, being careful not to plug 1.
  • Page 11: Preventative Maintenance And Service

    CAUTION: If white smoke appears from burner exhaust vent during start-up or operation, discon- tinue use and readjust air bands. Karcher Clear Fire Oil Burner Burner Air Adjustment: The oil burner on this machine is preset for operation at altitudes below 1000 feet. If...
  • Page 12: Exploded Views

    EXPLODED VIEW - LEFT (Reversed View of Labels) (Reversed View of Label) Detail See Control Panel Illus. To Fuel Tank Fuel Tank 9.800-191.0 • Rev. 05/14...
  • Page 13: Exploded Views

    EXPLODED VIEW - RIGHT 28,29 D EP Enlarged O SI TI VO R ES R EP O SI C IO View Overload Button 9.800-191.0 • Rev. 05/14...
  • Page 14: Exploded Views Parts List

    Clip, Retaining U-Type KE2020S (511.0, 512.0) 9.802-042.0 Elbow, 1/2" JIC x 3/8" 9.803-818.0 Pump, Kärcher Fem, 90° KE3525F (513.0) 9.801-263.0 Label, Karcher Clear Fire 9.802-458.0 Switch, Pressure, N/O, 1/4" NPT SS 9.803-108.0 Retainer Ring, Insulation 9.804-516.0 Motor, 1.5 HP 120V 9.802-900.0 Insulation, Tank Bottom, 1725 RPM (511.0)
  • Page 15: Exploded Views Parts List

    EXPLODED VIEWS PARTS LIST ITEM PART NO. DESCRIPTION 9.802-583.0 Nozzle, Oil, HOL 1.00 A, 90° (511.0, 512.0) 8.717-272.0 Nozzle, Burner, 1.75 B 90° (513.0) 9.802-781.0 Nut, 3/8" Flange, Whiz Loc, NC 9.802-424.0 Cord, Service, SEO, 16/4, Coleman 64" 9.802-519.0 Strain Relief, 1/2" Metal, Two Screw 9.803-264.0 Nipple, 1/4"...
  • Page 16: Control Panel Exploded View And Parts List

    CONTROL PANEL EXPLODED VIEW Thermostat To Burner Motor To Power Pressure Source Switch To Motor CONTROL PANEL EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 8.750-094.0 Thermostat, 150C/302F 9.802-514.0 Strain Relief, STRT LQ TITE 2 9.802-449.0 Switch, 3 PS, 9.802-447.0 Conduit, Corr, Tubing, 1/4"...
  • Page 17: Hose & Spray Gun Assembly And Parts List

    HOSE AND SPRAY GUN EXPLODED VIEW HOSE AND SPRAY GUN PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.802-287.0 Nozzle SAQMEG 0003, 9.802-166.0 Coupler, 3/8" Female Red (512.0) 9.802-100.0 ▲ Quick Coupler O-Ring LG 1 9.802-288.0 Nozzle, SAQMEG 1503, 8.739-314.0 Hose, 3/8"...
  • Page 18: Downstream Injector Assembly And Parts List

    DOWNSTREAM INJECTOR EXPLODED VIEW DOWNSTREAM INJECTOR PARTS LIST ITEM PART NO. DESCRIPTION 9.802-215.0 Injector, Detergent, Non-Adjust #2 (511.0, 512.0) 9.802-216.0 Injector, Detergent, Non-Adjust #3 (513.0) 6.390-126.0 Clamp, Hose, UNI .46 - .54 9.802-251.0 Tube, 1/4" x 1/2", Clear Vinyl 6 ft. 9.802-160.0 Strainer, 1/4"...
  • Page 19: Uu1 Unloader Exploded View And Parts List

    UU1 UNLOADER EXPLODED VIEW 9.175-018.0 UU1 3500PSI, UNIVERSAL UNLOADER (SPARE) UU1 UNLOADER EXPLODED VIEW PARTS LIST ITEM PART # DESCRIPTION KIT QTY ITEM PART # DESCRIPTION KIT QTY 8.751-394.0 Piston Housing 9.149-006.0 Sliding Connector Guide Piston C, D O-Ring Backup A, D 6 x 1.45 x 1.68 Piston O-Ring Back Up...
  • Page 20: Pump Exploded View And Parts List

    KE.1 SERIES PUMP EXPLODED VIEW 9.803-814.0 KE 2020F 9.803-815.0 KE 2020S 9.803-816.0 KE 2825F 9.803-817.0 KE 2825S 9.803-818.0 KE 3525F TORQUE SPECS Item # Ft.-lbs KE.1 SERIES PUMP PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.803-938.0 Crankcase 9.803-951.0 Brass Plug G1/4 9.804-586.0...
  • Page 21 KE.1 SERIES PUMP PARTS LIST ITEM PART NO. DESCRIPTION 9.804-584.0 Flange Screw 9.804-585.0 Crankshaft Seal See Kit Below Plunger Nut See Kit Below Copper Spacer See Kit Below Plunger 15mm (2020F, 2825F, 3525F) See Kit Below Plunger 18mm (2020S, 2825S) See Kit Below Copper Spacer See Kit Below O-Ring Ø1.78 x 5.28 See Kit Below Teflon Ring...
  • Page 22: Burner Clear Fire Exploded View And Parts List

    Replacement Parts For best performance specify genuine KNA replacement parts 9.800-191.0 • Rev. 05/14...
  • Page 23 Replacement Parts For best performance specify genuine KNA replacement parts 9.800-191.0 • Rev. 05/14...
  • Page 24: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION LOW OPERATING Faulty pressure gauge Install new gauge. PRESSURE Insufficient water supply Use larger garden hose; clean filter washer at water inlet. Old, worn or incorrect spray nozzle Match nozzle number to machine and/or replace with new nozzle.
  • Page 25: Maintenance Schedule

    MAINTENANCE SCHEDULE PREVENTATIVE MAINTENANCE This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventative maintenance procedures will assist in preserving the performance of your equipment. Contact your local pres- sure washer dealer for maintenance.
  • Page 27 www.karchercommercial.com Form # 9.800-191.0 • Revised 05/14 • Printed in U.S.A. or Mexico...
