Adding one or more storage shelves to an operating 4TB appliance that does not have any storage shelves
Understanding appliance and storage shelf
connections
4

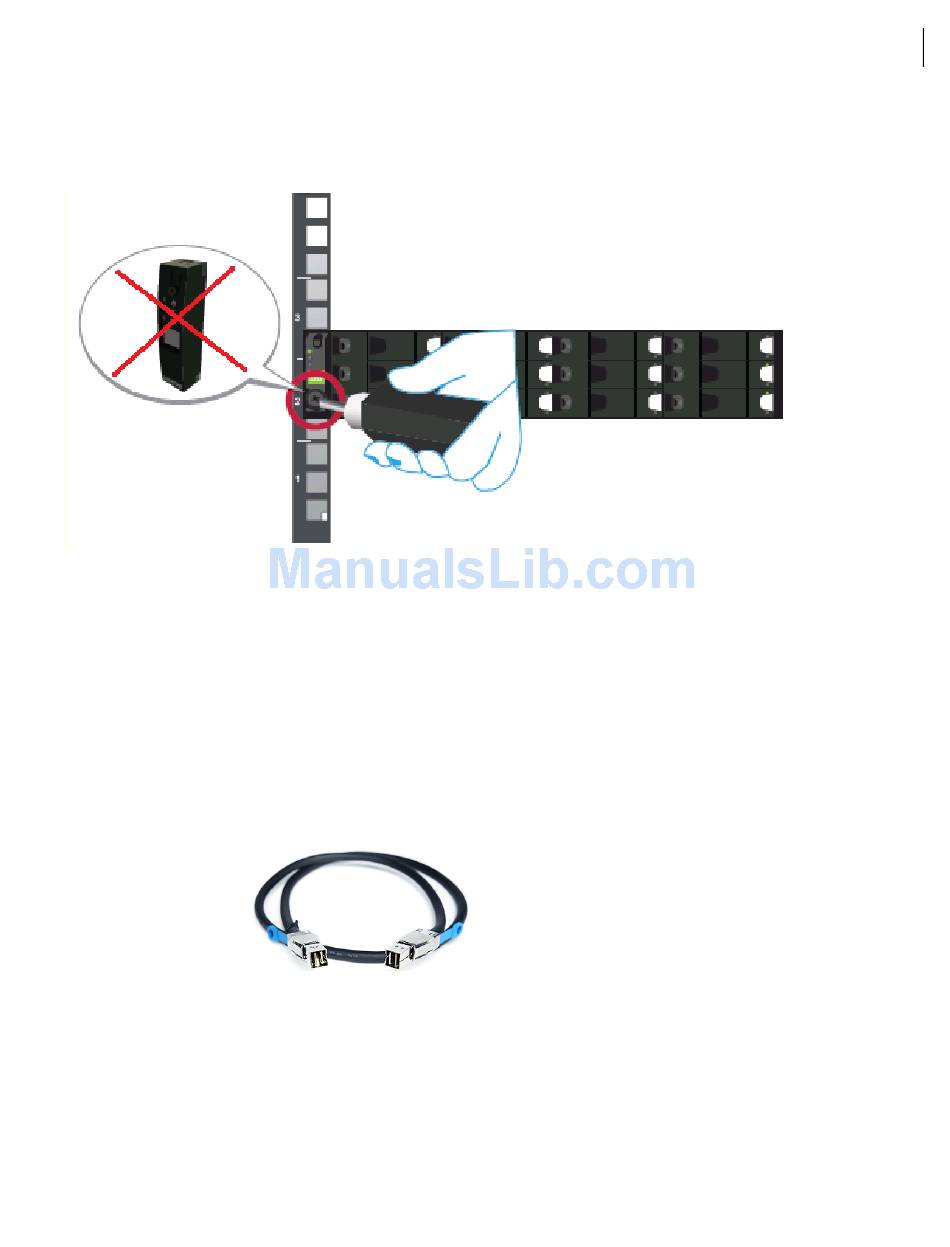

Verify that the end cap is not attached to the left and the right sides of the front
of the shelf.
5
Insert one screw into the rack, on the left and the right front of the shelf.
6
Replace the end caps or attach the bezel to the front of the shelf.
You cannot use SAS-2 cables with the storage shelf. You must use the SAS-3
cables that are provided with the product.
The blue clip on each SAS-3 connector must be oriented correctly as follows:
Both SAS-3 connectors in the ports in the External RAID PCIe card of the
■
appliance must be installed with the blue clip pointing down.

Understanding appliance and storage shelf connections

91
