Appliance disk drives

Appliance disk drives

Appliance control panel

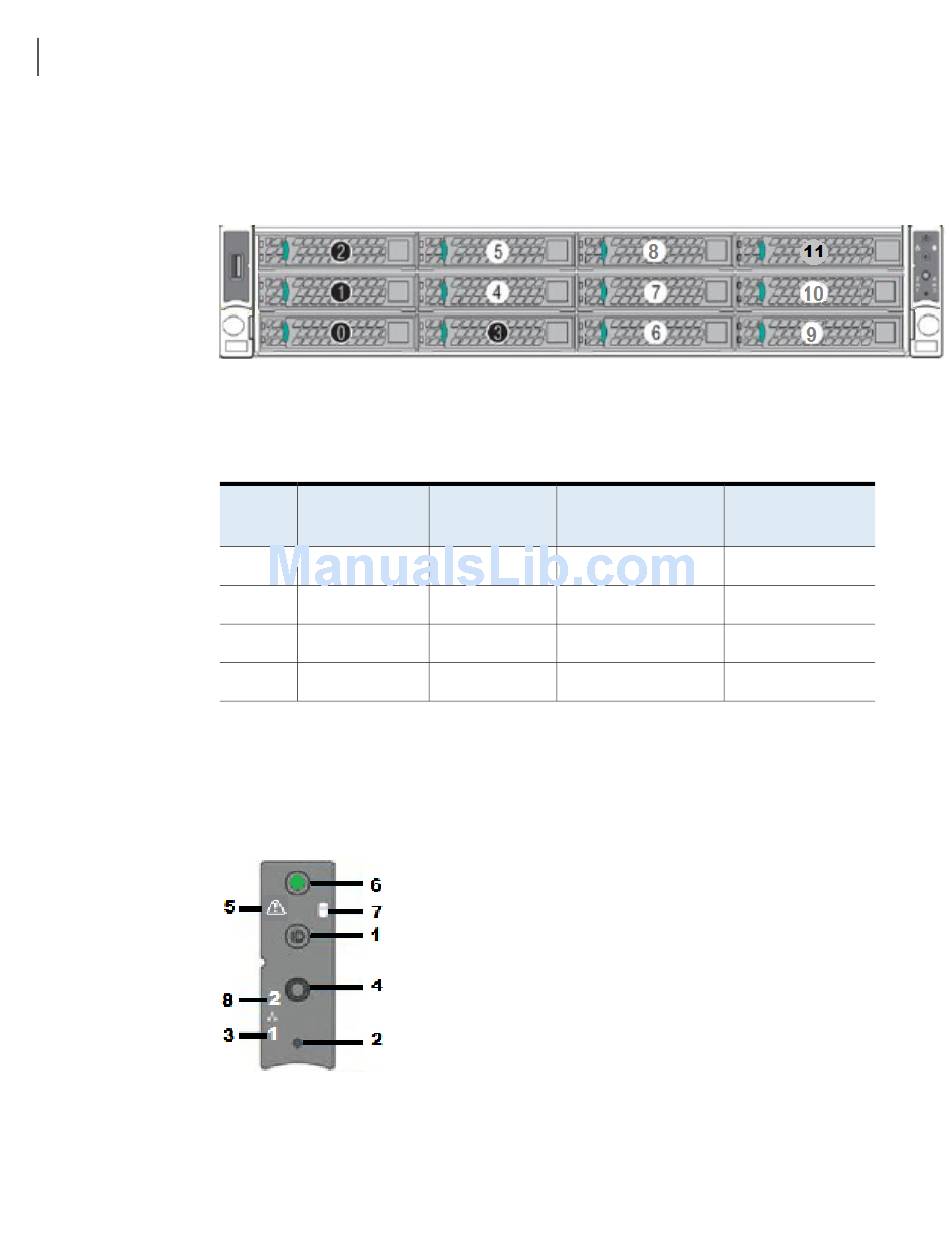

The front panel of the appliance contains 12 disk drives.
Slot designations are as follows. Do not rearrange the disk drives from the factory
configuration.
NetBackup 5240 Appliance disk drive slots
Table 1-1
Slot RAID
configuration
0, 1 RAID 1
2, 3 RAID 1
4 - 10 RAID 6
11 RAID 6
The front panel of the NetBackup 5240 Appliance includes a small panel that is
attached to the right side of the device.
Disk drive Appliance storage
size capacity
1TB N/A
1TB N/A
1TB, 3TB, 6TB 4TB, 14TB, 27TB
1TB, 3TB, 6TB N/A
Disk drive role
Boot/swap
Log files
User storage data
Hot spare
