Connecting the power cords

Connecting the power cords

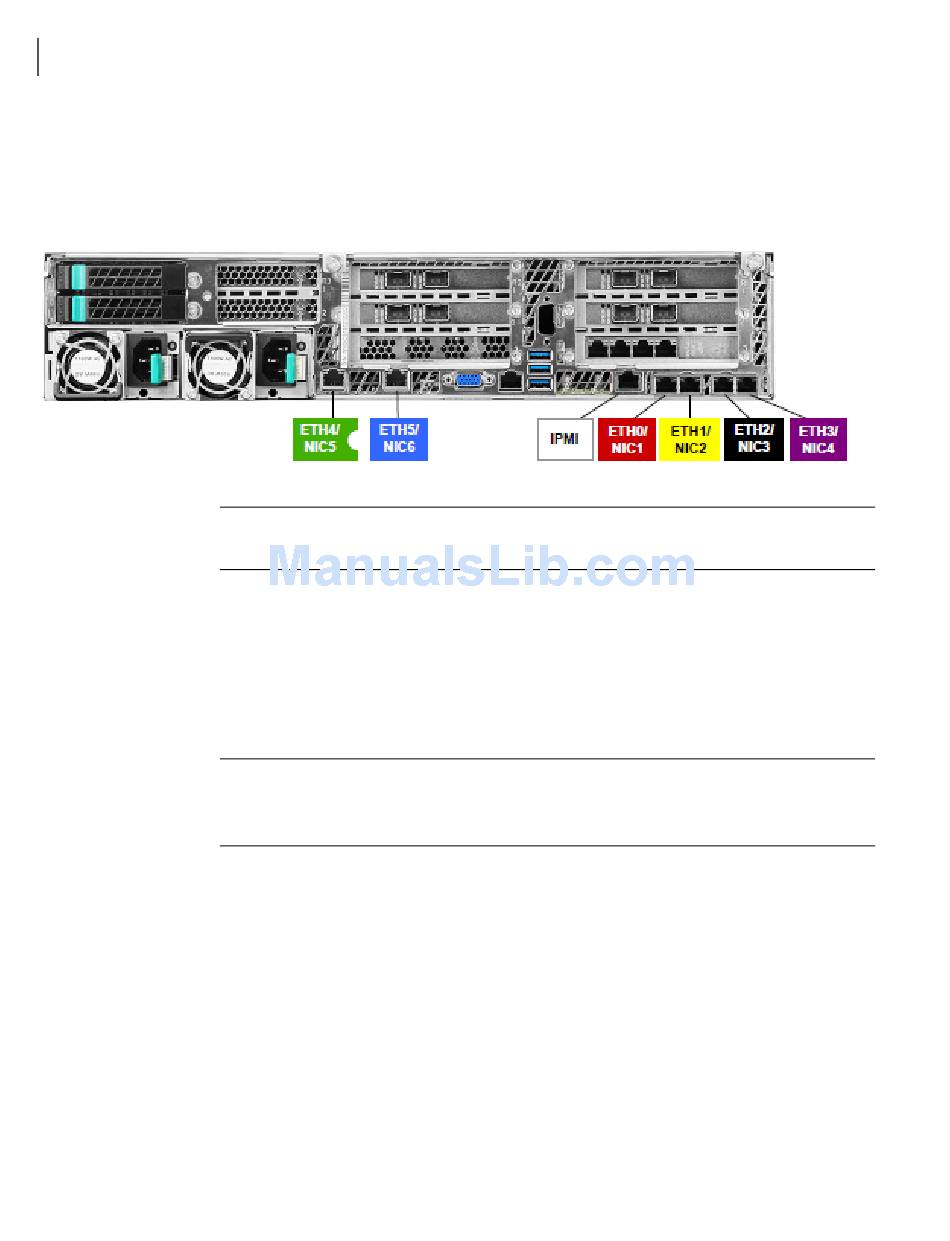

service technicians. The following picture shows the layout of the network ports. It
includes the four 1 Gb Ethernet ports on the right and the two 10 Gb Ethernet ports
on the left. The remote management (IPMI) port is located to the left of the 1 Gb
Ethernet ports.
Note: You cannot bond the copper 1 GbE or the 10-GbE ports that are installed in
the appliance chassis with the ports on PCIe 10-GbE cards.
Each appliance and each storage shelf contain two AC power supplies. To ensure
power redundancy, connect the power supplies on each component to separate
AC power sources.
Caution: Do not turn on the power to any components while connecting the power
cords. The components must be turned on in a specific sequence to ensure correct
communication.
To connect the power cables
1
Verify that the AC power supply input for the appliance and for the storage
shelf is within one of these ranges.
100 - 127 VAC at 50/60 Hz
■
200 - 240 VAC at 50/60 Hz
■
2 For each device, obtain two power cords that are appropriate for your region
and equipment.
