Installing the appliance into a rack

After the storage shelves and the appliance rails have been installed, you can install
the appliance into the rack.
To install the appliance into the rack
1
2
Separate the inner rail from the other rail components in the rack.

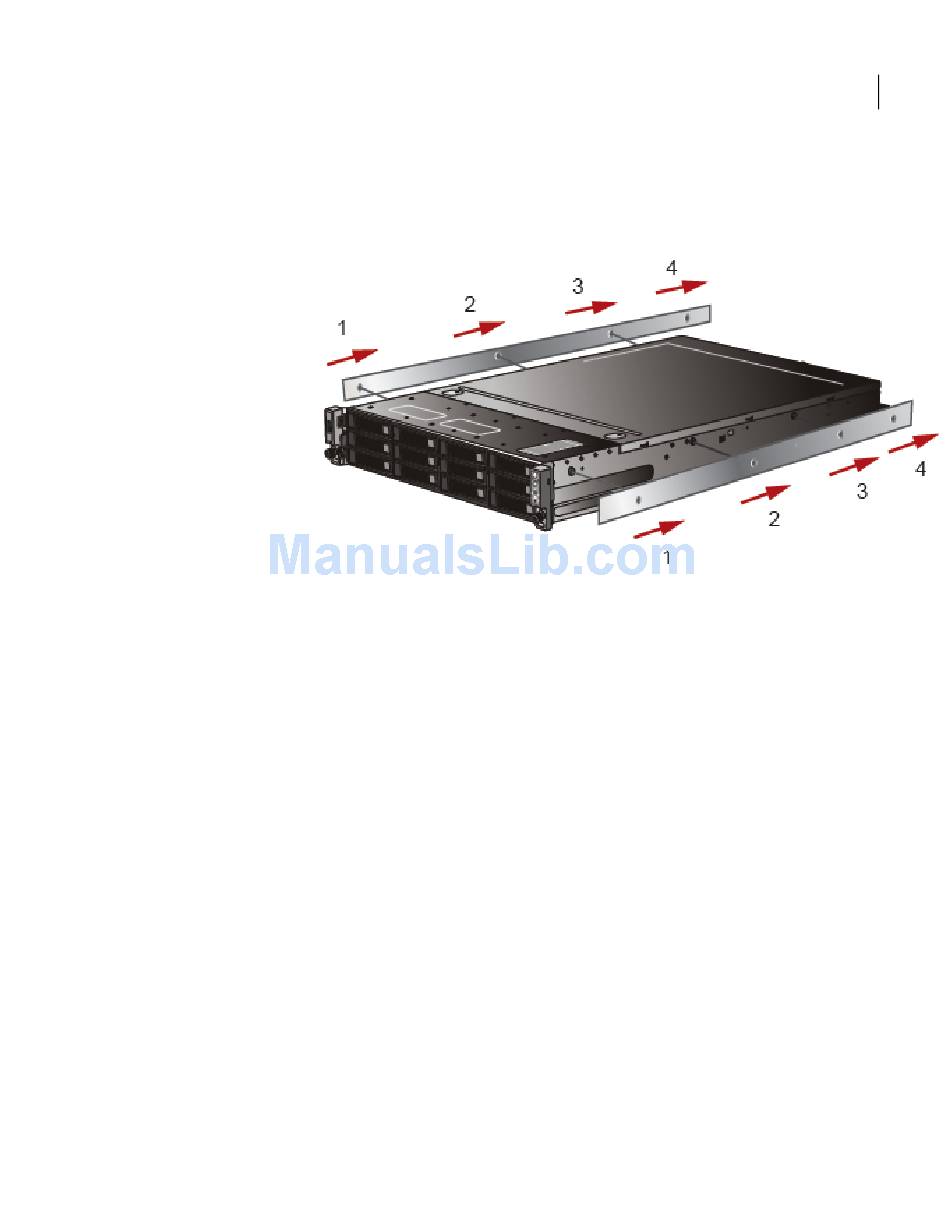

Attach the inner rail to the left and the right sides of the appliance at the four
attachment locations.
The rails click into place when properly installed.
Verify that the rails are securely attached.
Verify that the outer rail is securely attached to the rack.
■
Pull the intermediate rail forward. Ensure that the ball bearing retainer is
■
locked forward.
Verify that the inner rail is securely attached to the appliance.
■
Place the appliance in the front of the rack.
