Summary of Contents for Atlona AT-HDR-H2H-44M

  • Page 1 Atlona Manuals AT-HDR-H2H-44M 4x4 HDMI Switcher...

  • Page 2: Version Information

    Version Information Version Release Date Notes 10/17 Initial release AT-HDR-H2H-44M...

  • Page 3: Operating Notes

    Welcome to Atlona! Thank you for purchasing this Atlona product. We hope you enjoy it and will take a extra few moments to register your new purchase. Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware.
  • Page 4 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
  • Page 5 Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.

  • Page 6: Important Safety Information

    Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations. AT-HDR-H2H-44M...

  • Page 7: Table Of Contents

    Table of Contents Introduction Features Package Contents Panel Description Installation Audio Connector Connection Instructions Connection Diagram Mounting Instructions Configuration DHCP mode Auto IP mode Static IP mode Dante Controller System Info Channel Settings General Settings Commands Unit Audio Appendix Specifications Index AT-HDR-H2H-44M...

  • Page 8: Introduction

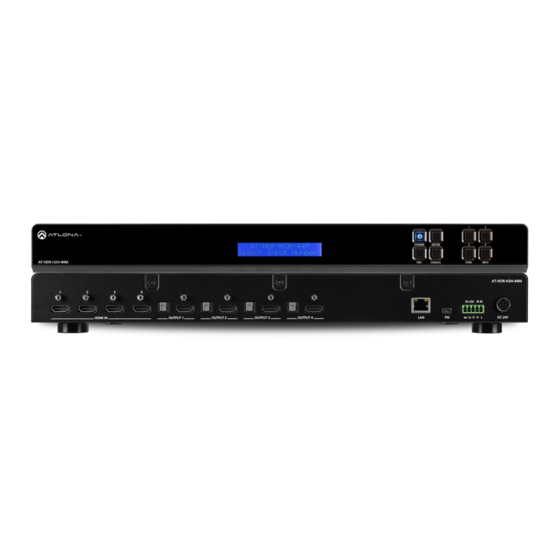

    Introduction The Atlona AT-HDR-H2H-44M is a 4×4 HDMI matrix switcher for high dynamic range (HDR) formats. It is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps.

  • Page 9: Panel Description

    Panel Description POWER ENTER AT-HDR-H2H-44M CANCEL EDID INFO AT-HDR-H2H-44M RS-232 IR IN HDMI IN OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 DC 24V RX TX Function Buttons HDMI OUT Power - Sets the unit in and out of standby.

  • Page 10: Installation

    IR cable AT-LC-CS-IR-2M. Mounting Instructions The AT-HDR-H2H-44M can be mounted in a standard 19-inch rack or placed freestanding on top of a desk or table. Rack installation 1. Remove the front two case screws from the sides of the case.
  • Page 11 AT -HD Surface mounting The AT-HDR-H2H-44M can be placed freestanding on top of a desk, a table, or in a cabinet. To prevent damage to the surfaces or unnecessary movement of the matrix, four feet have been included. 1. Turn the unit upside down.

  • Page 12: Connection Instructions

    AT -H RS -23 24 V TP UT Media Player TP UT TP UT TP UT IN FO TE R W ER AT-HDR-H2H-44M Automation Control System -4 4M -H 2H AT -H T OU Ba se AT-HDR-EX-70-2PS-TX AT-HDR-EX-70-2PS-RX CT OR...
  • Page 13 WebGUI The AT-HDR-H2H-44M includes a built-in webGUI, which allows easy management and control of all features. Follow the instructions below to access the webGUI. 1. Use an IP scanner to determine the IP address of the AT-HDR-H2H-44M. 2. Launch a web browser.
  • Page 14 Select RS-232 from the top menu. RS-232 Parameter Setting Console - Select the baud rate, data bit, parity, and stop bit. Default baud rate, data bit, parity, and stop bit is 1152000, 8, None, and 1. Select EDID from the top menu. AT-HDR-H2H-44M...
  • Page 15 Telnet Login Mode - Toggle telnet login mode on and off. If on, a username and password will be required to control the unit via TCP/IP. Telnet Timeout - Set the amount of time between actions before the current user is logged out. Broadcast - Toggles broadcast on and off. AT-HDR-H2H-44M...
  • Page 16 Reset to Default - Select to set the unit back to the original factory settings. Firmware Update - Press Choose File to search the local PC for the most recent firmware file. Press Update once the file is selected. AT-HDR-H2H-44M...

  • Page 17: Configuration

    Commands The following tables provide an alphabetical list of commands available on the AT-HDR-H2H-44M. All commands are case-sensitive and must be entered as documented. If the command fails or is entered incorrectly, then the feedback is “Command FAILED”. IMPORTANT: Each command is terminated with a carriage-return (0x0d) and the feedback is terminated with a carriage-return and line-feed (0x0a).
  • Page 18 Commands Command Description Status Displays which inputs are currently connected to which outputs System Displays system information about the AT-HDR-H2H-44M TrigCEC Triggers the stored CEC command to turn the display on and off Type Brings up the model information Unlock...
  • Page 19 Description Range Variable on, off, sta Example Feedback Broadcast sta Broadcast on Clear Erases the saved I/O route settings for the chosen preset number Syntax ClearX Parameter Description Range I/O preset number 1 to 8 Example Feedback Clear2 Clear2 AT-HDR-H2H-44M...
  • Page 20 5: 4K 60 4:2:0 / multichannel (HD lossless) 6: 4K 60 4:2:0 HDR / 2 channel 7: 4K 60 4:2:0 HDR / multichannel (HD lossless) 8: 4K 60 4:4:4 8-bit / 2 channel 9: 4K 60 4:4:4 8-bit / multichannel (HD lossless) AT-HDR-H2H-44M...
  • Page 21 Range Value 1 ... 2 Value on, off, sta Example Feedback HDCPSet 1 on HDCPSet 1 on HTTPPort Sets the HTTP port Syntax HTTPPort X Parameter Description Range Port number 0 to 65535 Example Feedback HTTPPort 12 HTTPPort 12 AT-HDR-H2H-44M...
  • Page 22 IPCFG Example Feedback IPCFG IP Addr: 10.0.1.101 Netmask: 255.255.255.0 Gateway: 10.0.1.1 IP Port: 23 IPDelUser Delete a user from TCP/IP Syntax IPDelUser X Parameter Description Range User User name Example Feedback IPDelUser ABCd IPDelUser ABCd TCP/IP user was deleted AT-HDR-H2H-44M...
  • Page 23 Enables / Disables IPLogin mode Syntax IPLogin X Parameter Description Range Value on, off, sta Example Feedback IPLogin off IPLogin off IPPort Set the TCP/IP port Syntax IPPort X Parameter Description Range Port 0 to 65535, sta Example Feedback IPPort 23 IPPort 23 AT-HDR-H2H-44M...
  • Page 24 Determines amount of seconds of inactivity before TCP/IP disconnects Syntax IPTimeout X Parameter Description Range Interval (in seconds) 1 to 60000 Example Feedback IPTimeout 300 IPTimeout 300 IROFF Disables the front panel IR receiver window Syntax IROFF Example Feedback IROFF IROFF AT-HDR-H2H-44M...
  • Page 25 Feedback Lock Lock Mreset Sets matrix back to the default settings Syntax MReset Example Feedback Mreset Mreset PWOFF Turns the unit off Syntax PWOFF Example Feedback PWOFF PWOFF PWON Turns the unit on Syntax PWON Example Feedback PWON PWON AT-HDR-H2H-44M...
  • Page 26 Saves I/O route settings for future use, preset options 0 to 8 Syntax SaveX Parameter Description Range Channel 0 to 8 Example Feedback Save1 Save1 Status Displays which inputs are currently connected to which outputs Syntax Status Example Feedback Status x1AVx2, x2AVx3, x3AVx2, x4AVx1 AT-HDR-H2H-44M...
  • Page 27 Commands System Displays system information about the AT-HDR-H2H-44M Syntax System X Parameter Description Range Status Example Feedback System sta Model: AT-HDVS-200-TX MAC Addr: b8-98-b0-00-10-e6 Address Type: DHCP IP Addr: 10.0.1.161 Netmask: 255.255.255.0 Gateway: 10.0.1.1 HTTP Port: 80 Telnet Port: 23 Firmware: 1.1.28...
  • Page 28 Version Brings up the current firmware version Syntax VersionX Parameter Description Range Value MCU, OSD, Example Feedback VersionMCU V1.0.00 x?All Sets selected input to all outputs Syntax x?All Parameter Description Range Input 0 to 4 Example Feedback x3All x3All AT-HDR-H2H-44M...
  • Page 29 Description Range Output 0 to 4 Variable on, off, sta Example Feedback x2$ sta x2$ on x?AVx? Switch input to output Syntax x?AVx& Parameter Description Range Input 0 to 4 & Output 0 to 4 Example Feedback x1AVx3 x1AVx3 AT-HDR-H2H-44M...
  • Page 30 Output: 24 V DC, 2.7 A Dimensions Inches Millimeters H x W x D 1.73 x 17.24 x 10.00 44.00 x 438.00 x 254.00 H x W x D, w/feet/ears 2.18 x 18.93 x 10.23 55.50 x 481.00 x 260.00 Rack Size 1 RU AT-HDR-H2H-44M...

  • Page 31: Unit

    Appendix Weight Pounds Kilograms Device 8.81 Certification Power Supply CE, FCC, UL, and LVD certificates Level VI compliant Unit CE, FCC AT-HDR-H2H-44M...

  • Page 32: Specifications

    Operating notes IPCFG IPDelUser IPDHCP IPLogin Panel descriptions IPPort IPQuit IPStatic IPTimeout Safety information IROFF Specifications IRON Lock Mreset PWOFF Warranty PWON PWSTA Recall Save Status System TrigCEC Type Unlock Version x?All x?AVx? Connection Diagram Instructions Contents package Customer support AT-HDR-H2H-44M...
  • Page 33 • 408.962.0515 • 877.536.3976 © 2017 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability...
