Page 1: User Manual
Atlona HDMI 4 by 1 Switcher AT-HD4-V41 User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
Step by Step guide -------------------------------------------------------------------- 7 7. RS-232 a. Hyperterminal -------------------------------------------------------------------- 8 a. Connection -------------------------------------------------------------------- 8 b. Command -------------------------------------------------------------------- 8 8. EDID -------------------------------------------------------------------- 9 9. Safety Information -------------------------------------------------------------------- 10 10. Warranty -------------------------------------------------------------------- 11 11. Registration -------------------------------------------------------------------- 12 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction

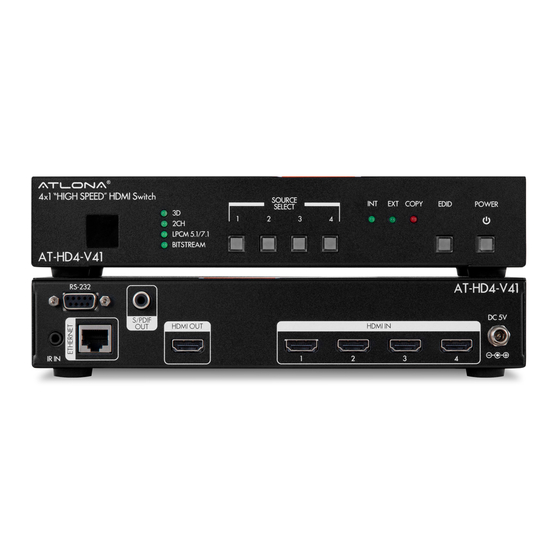

Introduction The Atlona HDMI 4 by 1 Switcher is a great product for homes with multimedia systems and not enough source input options. The Atlona switcher supports an Audio Return Channel and an HDMI 100Mbps Ethernet port for HDMI Ethernet Channel (HEC) feature, reducing the amount of wires necessary for compatible systems. -
Page 4: Specifications
When pressed longer than 3 seconds a red LED will light up to indicate that the EDID was copied. 5. Red LED will light up when the power is on. Examples: Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 5: Back
6. HDMI input for source components such as: DVD, PS3, Xbox360, or computer. 7. Power supply input. Remote Control A. On and Off Button B. Source selection. Press the number that matches the source you wish to use Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Installations And Connection Instructions A. Wiring Diagram
Connections and Installation A/V Receiver Computer HDTV Camera Satelite Receiver Internet Router XBox360 Blu-Ray Player Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 7: Step By Step Guide
3. (Optional) Plug the supplied Infrared module into the IR IN port and place the receiver end somewhere that is within 23 feet (7 meters) of where you will be using remote. Note: The supplied infrared module will allow you to control the Atlona AT-HD4-V41 when placed in a cabinet. -
Page 8: Rs-232
RS-232 is connected through a 9-pin female D connector. The pins will have functions associated with them, some will be unassigned. Function ---- Not used Transmit Receive ---- Not used Ground ---- Not used ---- Not used 9 8 7 6 ---- Not used ---- Not used Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 9: Command
EDID is the exchange of capabilities between a source and display. This handshake ensures the audio and video signals sent are supported by both source and display. The AT-HD4-V41 has 3 EDID modes. Internal picks the highest common audio/visual signal between the devices and the available EDIDs within the switcher. External selects the highest common resolution between the current input and the display. -
Page 10: Safety Information
It may also cause damage to your AT-HD4-V41. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 11: Warranty
Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. -
Page 12: Registration
Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
