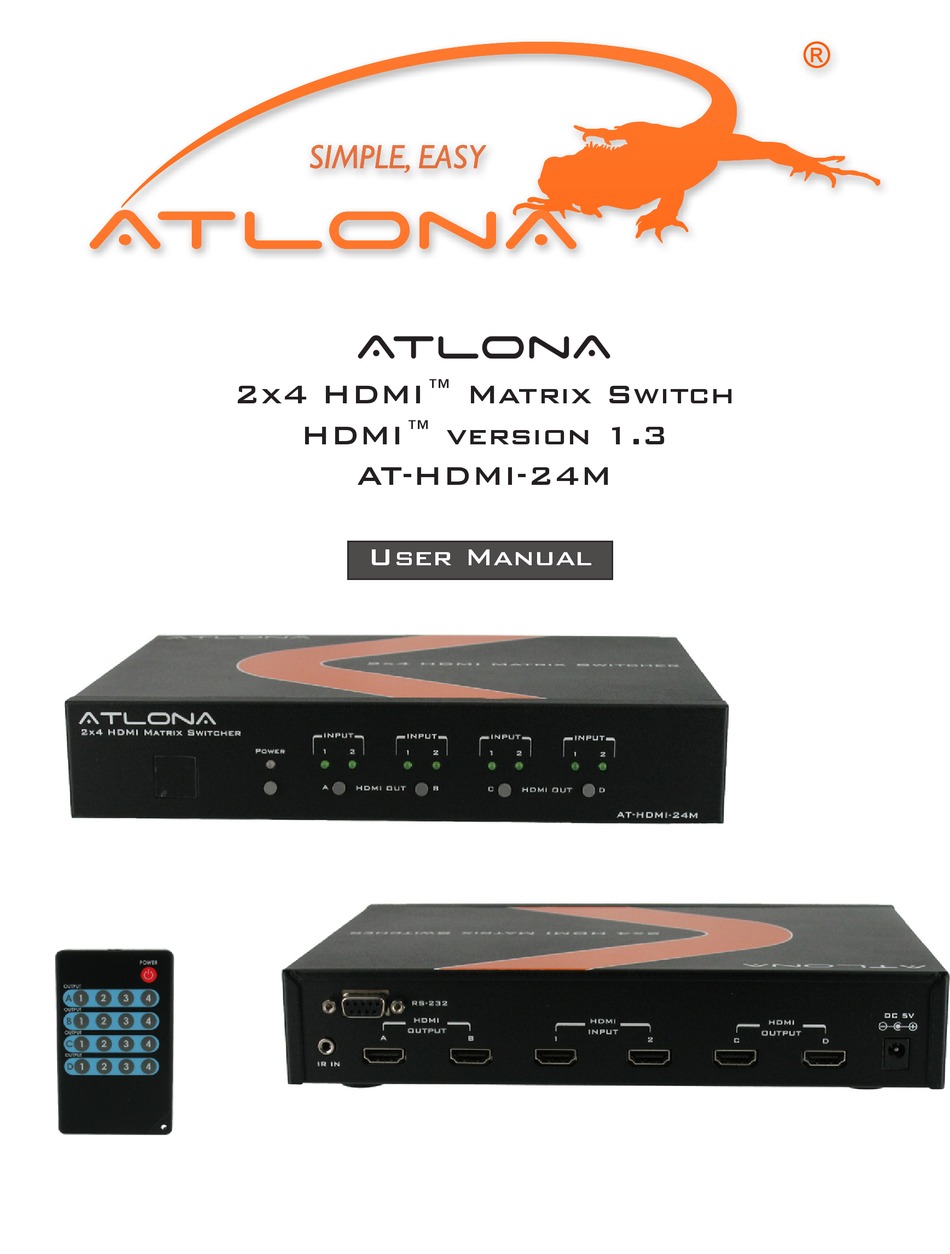

- Page 1 AtlonA 2x4 HDMI™ Matrix Switch HDMI™ version 1.3 AT-HDMI-24M User Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ..........2. Features ..........3. Package Contents ..........4. Operation Controls and Functions ......2 4.1 Front Panel ..........4.2 Rear Panel ..........4.3 Remote Control ..........4.4 RS-232 Protocol ..........4.4.1 Pin Definition ..........4.4.2 Commands .......... -
Page 3: Introduction
Each of the two HDMI™ sources can be directed to any one of the four outputs, so four dis- plays can show 4 identical or 2 pairs of different sources at the same time. AT-HDMI-24M provides a maximum of 8 possible connection scenarios between sources and displays. When HDMI™... -
Page 4: Operation Controls And Functions

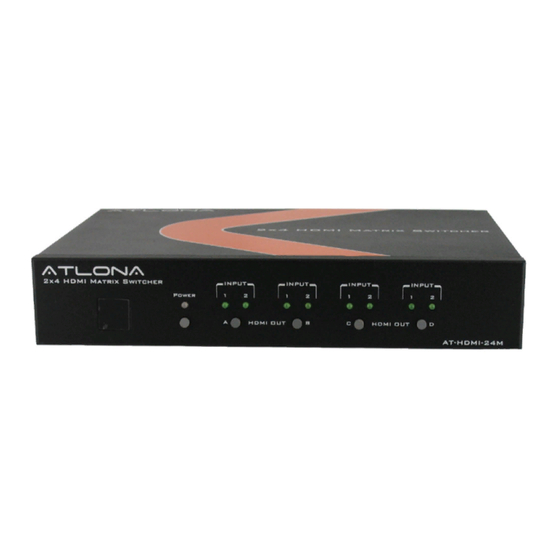

Operation Controls and Functions 4.1. Front Panel AtlonA INPUT INPUT INPUT INPUT Power HDMI OUT HDMI OUT 1. Remote control sensor. 2. Power Switch & LED Indicator: The LED will illuminate when the power is turned on. 3. Input Select/Indicators (A): Press the “HDMI™... -
Page 5: Rear Panel
4.2 Rear Panel RS-232 DC 5V HDMI HDMI HDMI OUTPUT INPUT OUTPUT IR IN 1. IR IN Socket: Plug the IR extender sensor (optional) into the socket for IR extension control. 2. RS-232 Communication Port: Connect to the COM port of your PC for the distant control over RS-232 channel. 3. -
Page 6: Rs-232 Protocol
4.4 RS-232 Protocol 4.4.1 Pin Definition AT-HDMI-42M Remote Control Console Definition Definition *RS-232 transmission format: Baud Rate: 9600 bps Data bit: 8 Bits Parity: None Stop Bit: 1 bit 4.4.2 Commands COMMAND ACTION Power Off (standby) Power On * System Status * Firmware Version Output A select Input1 Output A select Input2... -
Page 7: Specifications
Specifications 5.1 General Specification * Frequency bandwidth: 2.25Gbps (single link) * HDMI v1.3 ™ * Input/Output: 2-in to 4-out HDMI™ female ports * 5V DC power supply * Dimensions: 240 (W) x 165 (D) x 49 (H)mm * Weight: version 1.35Kgs INTPUT VGA, SVGA, XGA, SXGA, UXGA 480i, 480p, 576i, 576p, 720p, 1080i, 1080p... -
Page 8: Safety
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 9: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
