Summary of Contents for Atlona AT-HD4-V42
-
Page 1: User Manual
Atlona HDMI 4 by 2 Switcher AT-HD4-V42 User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
Step by Step guide -------------------------------------------------------------------- 6 7. RS-232 a. Hyperterminal -------------------------------------------------------------------- 7 a. Connection -------------------------------------------------------------------- 7 b. Command -------------------------------------------------------------------- 8 8. EDID -------------------------------------------------------------------- 8 9. Safety Information -------------------------------------------------------------------- 9 10. Warranty -------------------------------------------------------------------- 10 11. Registration -------------------------------------------------------------------- 11 atlona.com Toll free: 1-877-536-3976 Local: 1-408-962-0515... -
Page 3: Introduction
Introduction The Atlona HDMI 4 by 2 Switcher is wonderful for watching media on multiple displays without the need to move devices. Great for home theatres with two mirrored video outputs, such as: flat panel display and video movie projector. The Atlona switcher supports two HDMI 100Mbps Ethernet ports for HDMI Ethernet Channel (HEC) and two Audio Return Channels, reducing the amount of wires necessary for compatible systems. -

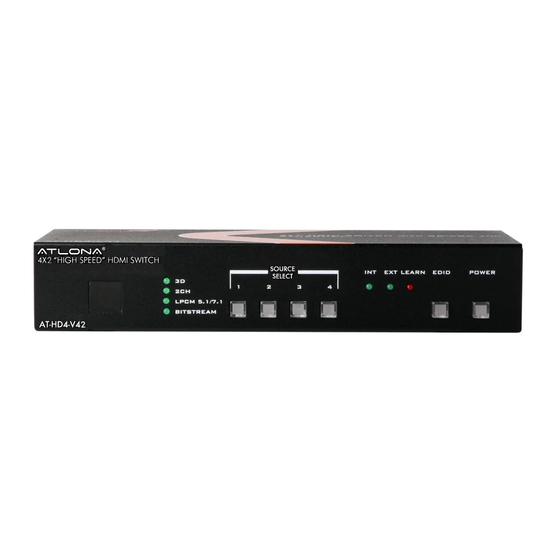

Page 4: Front
3. Ethernet ports for HDMI Ethernet Channel (HEC) capable devices. 4. Digital (S/PDIF) outputs for digital audio. 5. HDMI outputs to displays. 6. HDMI inputs for source components such as: DVD, PS3, Xbox360, or computer. 7. Power supply input. atlona.com Toll free: 1-877-536-3976 Local: 1-408-962-0515... -
Page 5: Infrared Remote Control
B. Source selection. Press the number that matches the source you wish to use Connections and Installation Computer ARC Optional A/V Receiver HDTV Camera Internet Router Blu-Ray Player Satellite Receiver HDTV A/V Receiver ARC Optional XBox360 Camera atlona.com Toll free: 1-877-536-3976 Local: 1-408-962-0515... -
Page 6: Step By Step Guide
2. Connect the HDMI cables to your sources and the switcher’s inputs labelled HDMI IN. a. If the auto switching feature is turned on (through RS-232) the AT-HD4-V42 will change inputs to the source that was powered on last. The source will switch to the previously turned on device when the current input is turned off. -
Page 7: Rs-232
RS-232 is connected through a 9-pin female D connector. The pins will have functions associated with them, some will be unassigned. Function ---- Not used Transmit Receive ---- Not used Ground ---- Not used ---- Not used 9 8 7 6 ---- Not used ---- Not used atlona.com Toll free: 1-877-536-3976 Local: 1-408-962-0515... -
Page 8: Command
EDID is the exchange of capabilities between a source and display. This handshake ensures the audio and video signals sent are supported by both source and display. The AT-HD4-V42 has 3 EDID modes. Internal picks the highest common audio/visual signal between the devices and the available EDIDs within the switcher. External selects the highest common resolution between the current input and the display connected to output 1. -
Page 9: Safety Information
It may also cause damage to your AT-HD4-V42. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 10: Warranty
Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. -
Page 11: Atlona Product Registration
Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
