User Manual

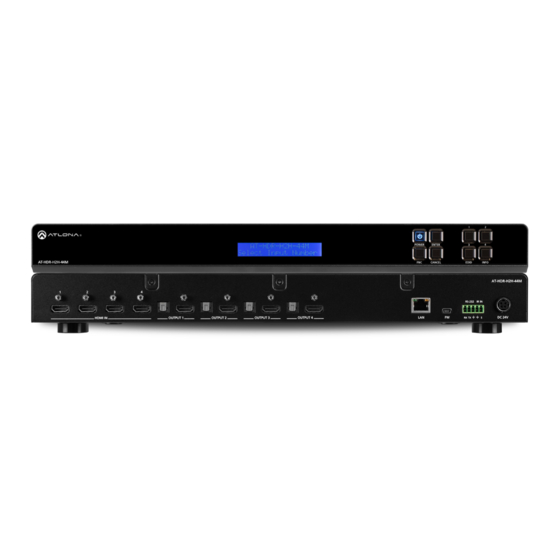

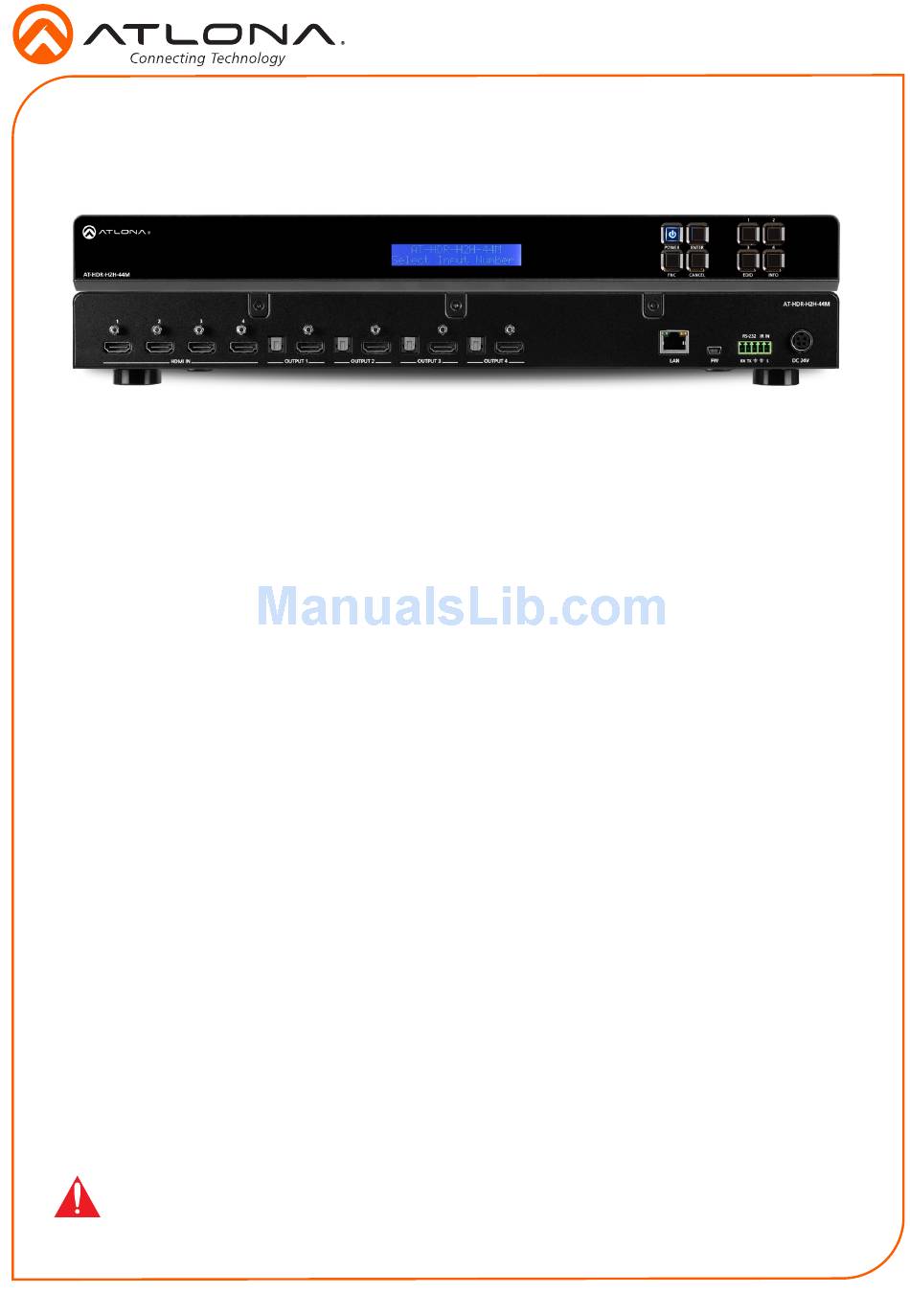

4K HDR 4×4 HDMI to HDMI Matrix Switcher
AT-HDR-H2H-44M
The Atlona AT-HDR-H2H-44M is a 4×4 HDMI matrix switcher for high dynamic range (HDR)
formats. It is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma
sampling, as well as HDMI data rates up to 18 Gbps. The HDR-H2H-44M is ideal for residential
applications with the latest as well as emerging 4K/UHD and HDR sources and displays. It
is compatible with all video resolutions, audio formats, and color space formats supported
in the HDMI 2.0b specification, plus the ability to pass metadata for HDR content. The HDR-
H2H-44M includes EDID and HDCP management features, and can send CEC display control
independently to each output. A TOSLINK digital audio output is paired with each HDMI output
for sending de-embedded HDMI audio to an AV receiver or soundbar. The HDR-H2H-44M can be
controlled via Ethernet, RS-232, and IR. A handheld IR remote control is included.
Package Contents
1 x AT-HDR-H2H-44M
1 x Captive screw connector, 5-pin
1 x 24V DC power supply
1 x Pair mounting ears w/screws
4 x Feet w/screws
1 x IR remote control
1 x Installation Guide
IMPORTANT: Visit http://www.atlona.com/product/AT-HDR-H2H-44M for the latest firm-
ware updates and User Manual.
1
Installation Guide
AT-HDR-H2H-44M
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlona AT-HDR-H2H-44M
Summary of Contents for Atlona AT-HDR-H2H-44M
-
Page 1: Package Contents
4K HDR 4×4 HDMI to HDMI Matrix Switcher AT-HDR-H2H-44M The Atlona AT-HDR-H2H-44M is a 4×4 HDMI matrix switcher for high dynamic range (HDR) formats. It is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-H2H-44M is ideal for residential applications with the latest as well as emerging 4K/UHD and HDR sources and displays. -
Page 2: Panel Descriptions
Pin out will be determined by the IR IN is connected by a ground and RS-232 cable and connect as signal wire. Use with 3rd party control RX (receive), TX (transmit) and systems. For easy termination, Atlona (Ground). recommends using the 2 meter IR cable AT-LC-CS-IR-2M. -
Page 3: Mounting Instructions
Installation Guide AT-HDR-H2H-44M Mounting Instructions The AT-HDR-H2H-44M can be mounted in a standard 19-inch rack or placed freestanding on top of a desk or table. Rack installation Remove the front two case screws from the sides of the case. Attach the included rack ears to each side of the AT-HDR-H2H-44M using the case screws. - Page 4 Installation Guide AT-HDR-H2H-44M Surface mounting The AT-HDR-H2H-44M can be placed freestanding on top of a desk, a table, or in a cabinet. To prevent damage to the surfaces or unnecessary movement of the matrix, four feet have been included. Turn the unit upside down.
-
Page 5: Installation
Connect the power supply to an AC outlet. WebGUI The AT-HDR-H2H-44M includes a built-in webGUI, which allows easy management and control of all features. Follow the instructions below to access the webGUI. View the IP address of the unit using the front panel OSD. -
Page 6: Connection Diagram
Installation Guide AT-HDR-H2H-44M Connection Diagram Display Display Blu-ray Player Soundbar Set-Top Box P BO -4 4M -H 2H AT -H 24 V RS -23 TP UT Media Player TP UT TP UT TP UT TE R AT-HDR-H2H-44M Automation Control System... -
Page 7: Troubleshooting
Installation Guide AT-HDR-H2H-44M Troubleshooting Problem Solution I am not receiving • By default, multichannel audio and 3D will not pass multichannel audio or 3D unless all devices support those features. Set each port’s video. EDID through the front panel, webGUI, or RS-232. - Page 8 • © 2017 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and...
