Summary of Contents for Atlona AT-HD-V216
-

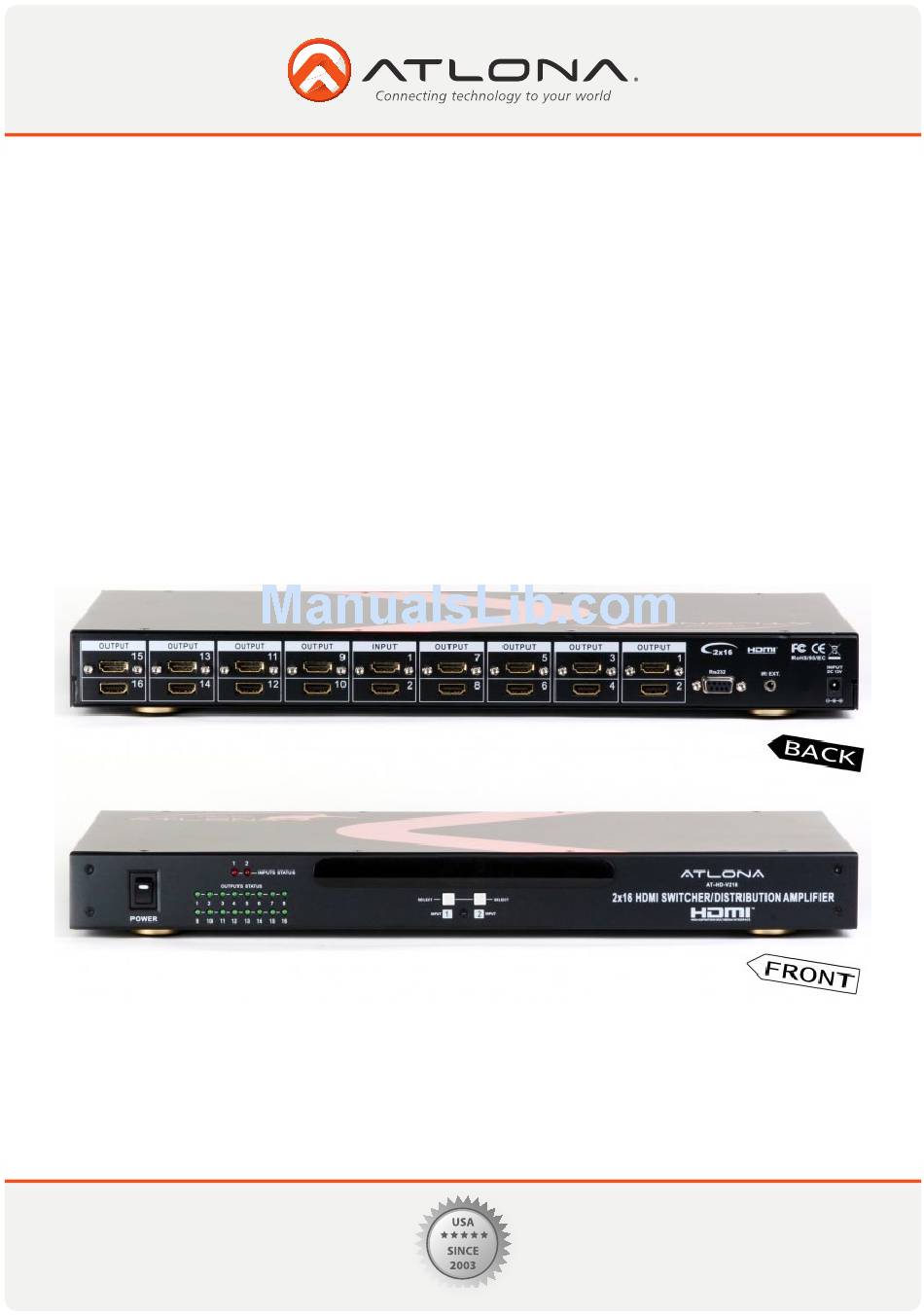

Page 1: User Manual
User Manual 2x16 HDMI Switcher AT-HD-V216 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
..........9.1 Standby Mode ..........9.2 Power Off Mode ..........9.3 Front Panel Lock ..........9.4 Unit Reset ..........10. Applications ..........11. Safety Information ..........12. Warranty ..........13. Atlona Product Registration ..........Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction

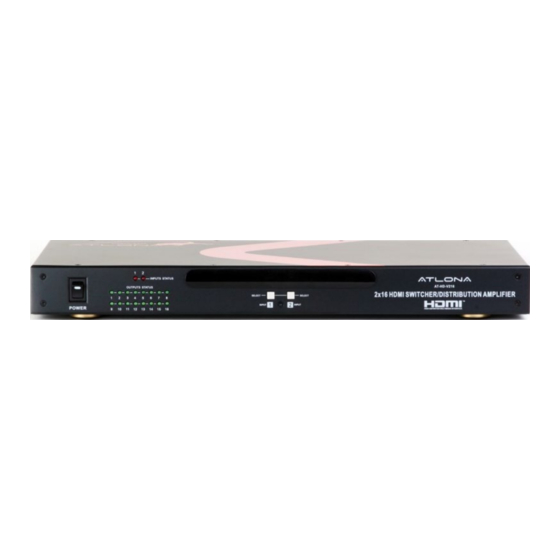

INTRODUCTION Atlona Technologies’ AT-HD-V216 is a 2x16 HDMI Switcher designed to work as a switcher for any High Defini¬tion Video application. With 2 HDMI Inputs and 16 HDMI Outputs, the AT-HD-V216 is capable of switching High Defini- tion signal from two sources to sixteen displays. This switcher has multiple control options available including manual, IR Remote, or RS232 Control. -
Page 4: Package Contents
PACKAGE CONTENTS • 2x16 Switcher Unit (AT-HD-V216) • Instruction Manual • IR Remote Control • Universal AC/DC power adapter: 12VDC • 19 inch Ear mount pair • IR Extender receiver • RS232 package (RS232 DVD Drive & Cable) PANEL DESCRIPTION 1. -
Page 5: Rear Panel
2. SWITCH POWER ON or OFF 3. INPUT-1 SOURCES SELECTION Select input sources 1 or 2 with selection button 4. INPUT-2 SOURCES SELECTION Select input sources 1 or 2 with selection button IR EXTENDER 1. IR Extender Connection Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 6: The Ir Extender Components Setup
2. The IR Extender Components Setup RS-232 SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT a PC or CONTROL SYSTEM RS-232 Definition Not used Transmitter Receiver Not Used Ground Not used Not used Not used Not used Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 7: Rs-232
RS-232 Atlona Technologies’ switcher can be controlled via the RS-232 serial control port to allow for interfac¬ing to a PC, The serial communication parameters are 9600 baud, 8 bit, No Parity and 1 stop bit - this is often referred to as 9600 8N1. -
Page 8: Applications
APPLICATIONS Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 9: Safety Information
It may also cause damage to your AT-HD-V216. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 10: Warranty
Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. -
Page 11: Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
