4.4

Target Peripherals

The ATmega328PB Xplained Mini evaluation kit has one push button, one yellow LED, and two QTouch
buttons connected to the ATmega328PB.

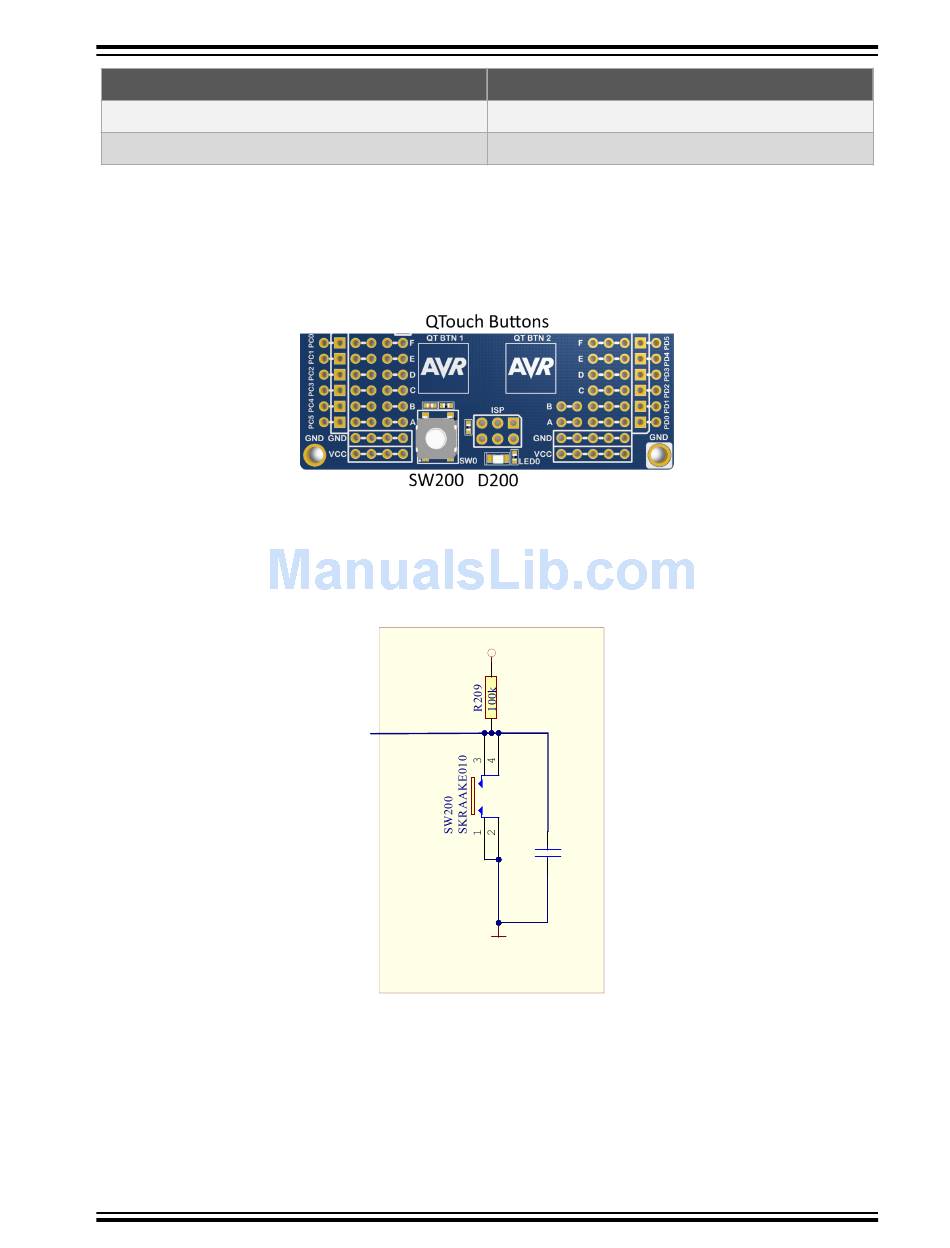

Figure 4-3. ATmega328PB Xplained Mini Peripherals
4.4.1

Push Button

A general purpose push button, SW200, is connected to PB7, as shown below. When the button is
pressed, PB7 is connected to GND and is therefore active low.
Figure 4-4. User Button
4.4.2

User LED

There is one yellow LED, D200, available for use by the application SW. The LED is lit when PB5 is set to
a high state.
The LED is connected to ATmega328PB pin 17 - PB5, as shown below.
©
2017 Microchip Technology Inc.
ATmega328PB pin
PE2
PE3
USER BUTTON
ATmega328PB Xplained Mini
VCC_TARGET
PB7
C204
100n
GND
User Guide
Grid position
H5
G5
DS50002660A-page 21
