Maintenance and Troubleshooting
June 2017
5. Set the DIP switch on the PWB assembly according to table 6‐2. On units that have the optional 4-20 mA position
transmitter or switch hardware installed, set the Transmitter or Switch option according to table 6‐3.
Table 6‐2. DIP Switch Configuration
Switch Label Operational Mode
PT-PT 4­20 mA Point­to­Point Loop
Multi 24 VDC Multi­Drop Loop
1. Refer to figure 6‐5 for switch location.
Table 6‐3. Output Switch Configuration
Switch Label/Function
Transmitter
Switch
1. Refer to figure 6‐5 for switch location.

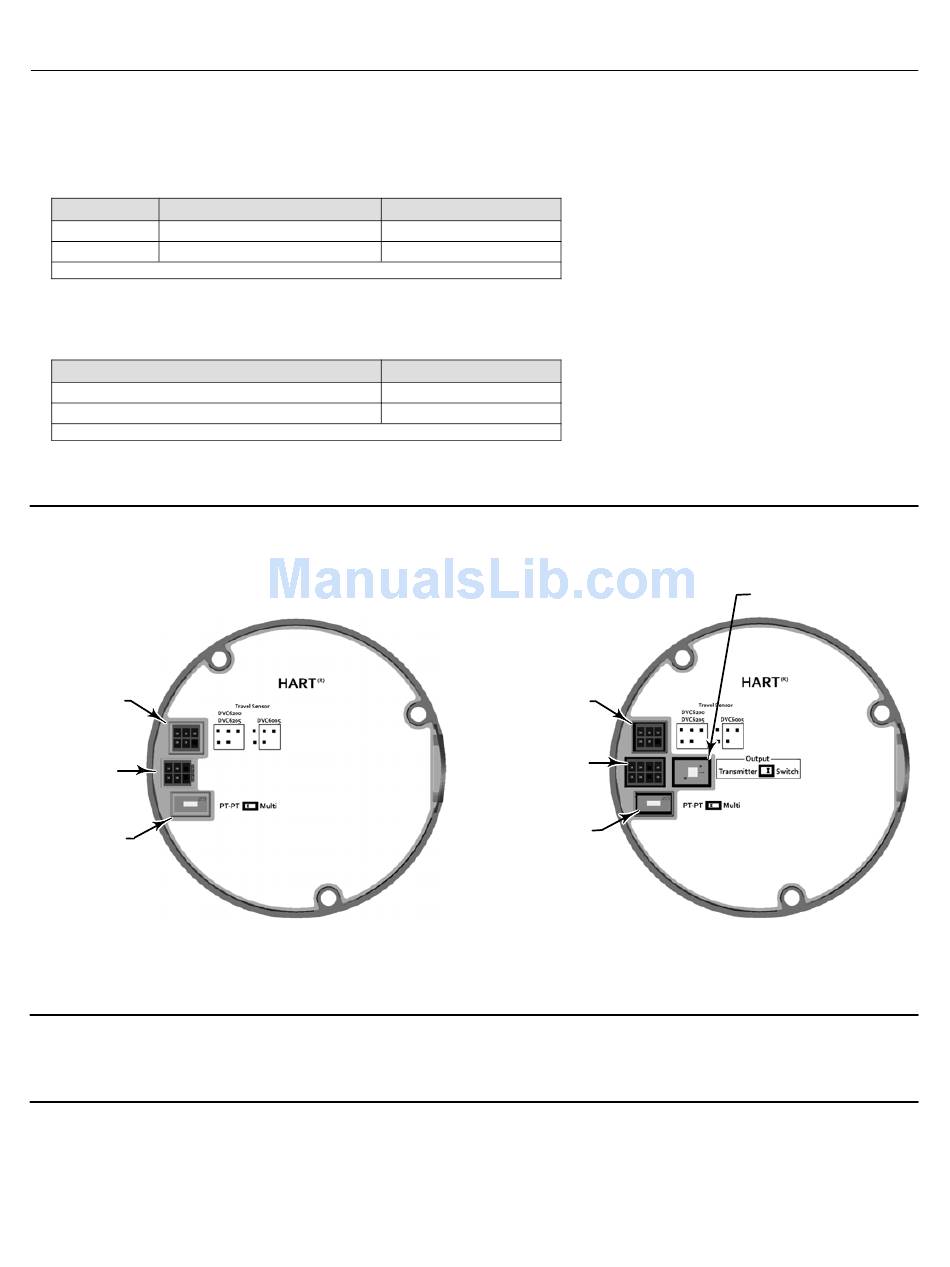

Figure 6‐5. Printed Wiring Board (PWB) Connections and Settings
TRAVEL SENSOR
CONNECTOR
TERMINAL BOX
CONNECTOR
OPERATIONAL
MODE SELECTION
X0463
Note
For the digital valve controller to operate with a 4 to 20 mA control signal, be sure the DIP switch is in the point‐to‐point loop
position.
6. Reassemble the module base to the housing by performing the Replacing the Module Base procedure.
7. Setup and calibrate the DVC6005 HW2 base unit.
70
(1)
DIP Switch Position
LEFT
RIGHT
(1)
DIP Switch Position
LEFT
RIGHT
TRAVEL SENSOR
CONNECTOR
TERMINAL BOX
CONNECTOR
OPERATIONAL
MODE SELECTION
Instruction Manual
TRANSMITTER/SWITCH
SELECTION
X0432
