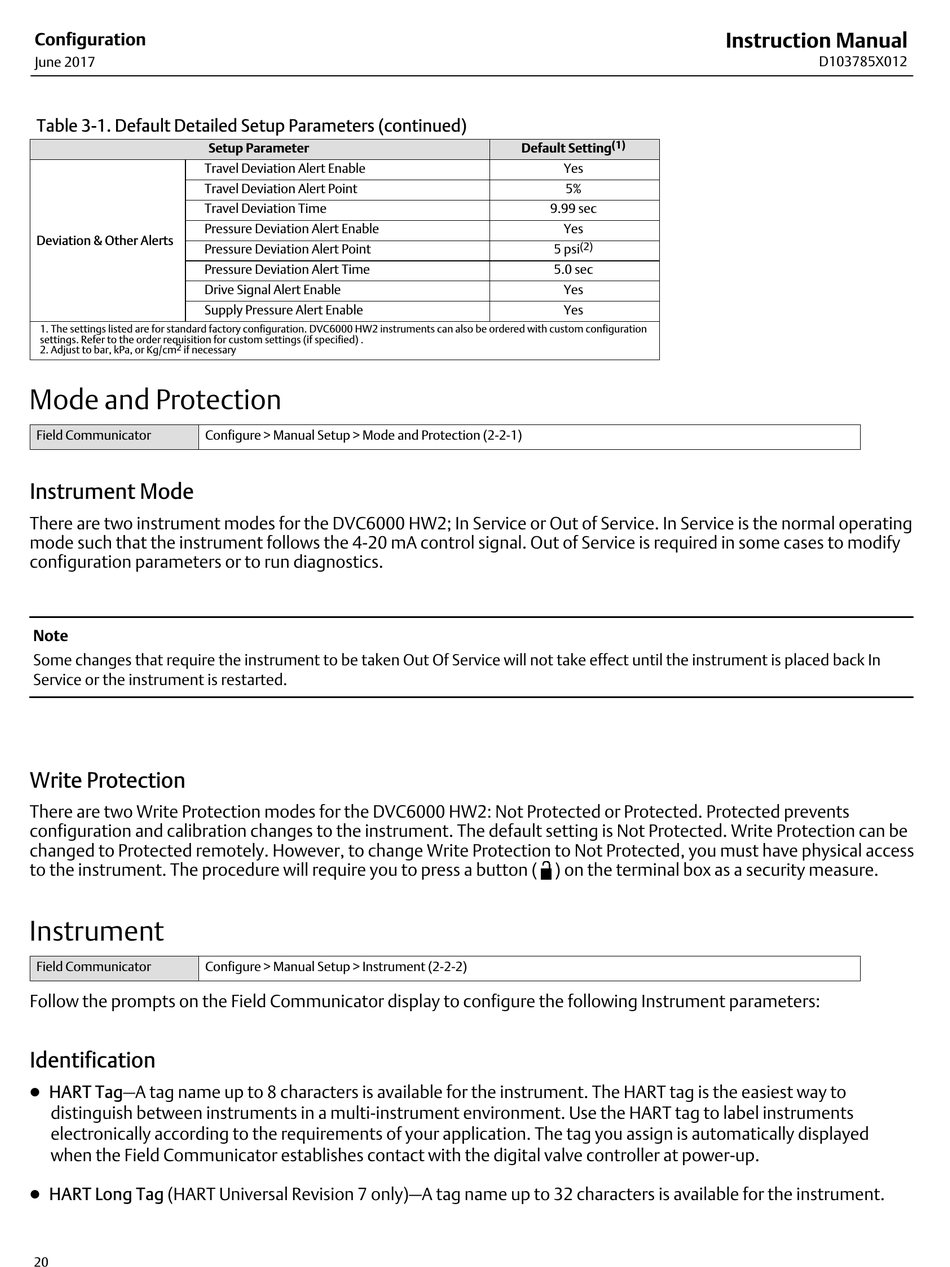

Configuration
June 2017
Table 3‐1. Default Detailed Setup Parameters (continued)
Travel Deviation Alert Enable
Travel Deviation Alert Point
Travel Deviation Time
Pressure Deviation Alert Enable
Deviation & Other Alerts
Pressure Deviation Alert Point
Pressure Deviation Alert Time
Drive Signal Alert Enable
Supply Pressure Alert Enable
1. The settings listed are for standard factory configuration. DVC6000 HW2 instruments can also be ordered with custom configuration
settings. Refer to the order requisition for custom settings (if specified) .
2
2. Adjust to bar, kPa, or Kg/cm if necessary

Mode and Protection

Field Communicator Configure > Manual Setup > Mode and Protection (2‐2‐1)

Instrument Mode

There are two instrument modes for the DVC6000 HW2; In Service or Out of Service. In Service is the normal operating
mode such that the instrument follows the 4­20 mA control signal. Out of Service is required in some cases to modify
configuration parameters or to run diagnostics.
Note
Some changes that require the instrument to be taken Out Of Service will not take effect until the instrument is placed back In
Service or the instrument is restarted.

Write Protection

There are two Write Protection modes for the DVC6000 HW2: Not Protected or Protected. Protected prevents
configuration and calibration changes to the instrument. The default setting is Not Protected. Write Protection can be
changed to Protected remotely. However, to change Write Protection to Not Protected, you must have physical access
to the instrument. The procedure will require you to press a button ( ) on the terminal box as a security measure.

Instrument

Field Communicator Configure > Manual Setup > Instrument (2‐2‐2)
Follow the prompts on the Field Communicator display to configure the following Instrument parameters:

Identification

D HART Tag—A tag name up to 8 characters is available for the instrument. The HART tag is the easiest way to
distinguish between instruments in a multi‐instrument environment. Use the HART tag to label instruments
electronically according to the requirements of your application. The tag you assign is automatically displayed
when the Field Communicator establishes contact with the digital valve controller at power‐up.
D HART Long Tag (HART Universal Revision 7 only)—A tag name up to 32 characters is available for the instrument.
20
Setup Parameter
(1)
Default Setting
Yes
5%
9.99 sec
Yes
(2)
5 psi
5.0 sec
Yes
Yes
Instruction Manual
D103785X012
