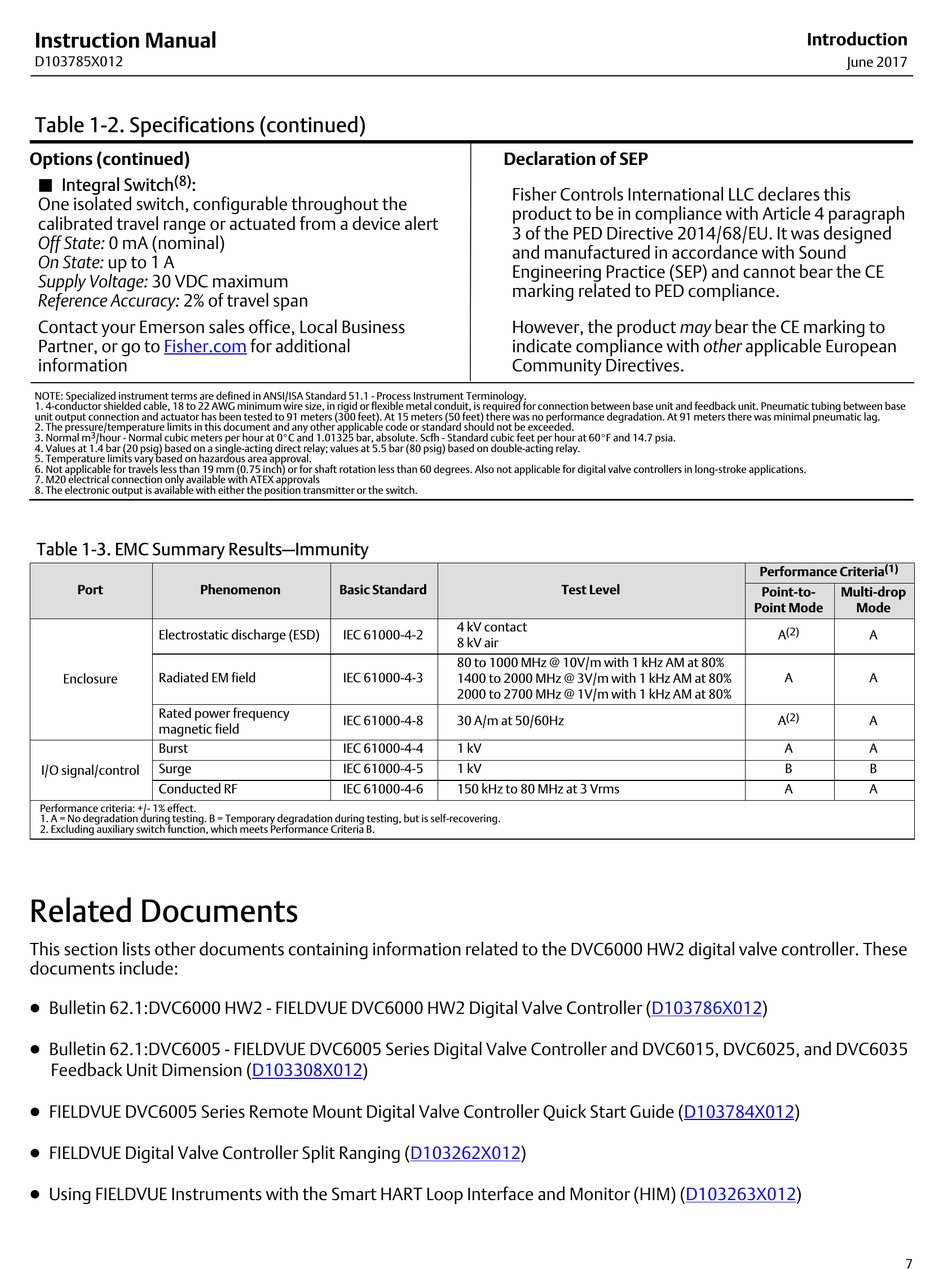

Table 1‐2. Specifications (continued)
Options (continued)
J (8)
Integral Switch :
One isolated switch, configurable throughout the
calibrated travel range or actuated from a device alert
Off State: 0 mA (nominal)
On State: up to 1 A
Supply Voltage: 30 VDC maximum
Reference Accuracy: 2% of travel span
Contact your Emerson sales office, Local Business
Partner, or go to Fisher.com
information
NOTE: Specialized instrument terms are defined in ANSI/ISA Standard 51.1 - Process Instrument Terminology.
1. 4‐conductor shielded cable, 18 to 22 AWG minimum wire size, in rigid or flexible metal conduit, is required for connection between base unit and feedback unit. Pneumatic tubing between base
unit output connection and actuator has been tested to 91 meters (300 feet). At 15 meters (50 feet) there was no performance degradation. At 91 meters there was minimal pneumatic lag.
2. The pressure/temperature limits in this document and any other applicable code or standard should not be exceeded.
3
3. Normal m /hour - Normal cubic meters per hour at 0_C and 1.01325 bar, absolute. Scfh - Standard cubic feet per hour at 60_F and 14.7 psia.
4. Values at 1.4 bar (20 psig) based on a single-acting direct relay; values at 5.5 bar (80 psig) based on double-acting relay.
5. Temperature limits vary based on hazardous area approval.
6. Not applicable for travels less than 19 mm (0.75 inch) or for shaft rotation less than 60 degrees. Also not applicable for digital valve controllers in long‐stroke applications.
7. M20 electrical connection only available with ATEX approvals
8. The electronic output is available with either the position transmitter or the switch.
Table 1‐3. EMC Summary Results—Immunity
Port Phenomenon
Electrostatic discharge (ESD)
Radiated EM field
Enclosure
Rated power frequency
magnetic field
Burst
Surge
I/O signal/control
Conducted RF
Performance criteria: +/- 1% effect.
1. A = No degradation during testing. B = Temporary degradation during testing, but is self‐recovering.
2. Excluding auxiliary switch function, which meets Performance Criteria B.

Related Documents

This section lists other documents containing information related to the DVC6000 HW2 digital valve controller. These
documents include:
D Bulletin 62.1:DVC6000 HW2 - FIELDVUE DVC6000 HW2 Digital Valve Controller (D103786X012)
D Bulletin 62.1:DVC6005 - FIELDVUE DVC6005 Series Digital Valve Controller and DVC6015, DVC6025, and DVC6035
Feedback Unit Dimension (D103308X012)
D FIELDVUE DVC6005 Series Remote Mount Digital Valve Controller Quick Start Guide (D103784X012)
D FIELDVUE Digital Valve Controller Split Ranging (D103262X012)
D Using FIELDVUE Instruments with the Smart HART Loop Interface and Monitor (HIM) (D103263X012)
for additional
Basic Standard
IEC 61000‐4‐2
IEC 61000‐4‐3
IEC 61000‐4‐8
IEC 61000‐4‐4
IEC 61000‐4‐5
IEC 61000‐4‐6
Declaration of SEP
Fisher Controls International LLC declares this
product to be in compliance with Article 4 paragraph
3 of the PED Directive 2014/68/EU. It was designed
and manufactured in accordance with Sound
Engineering Practice (SEP) and cannot bear the CE
marking related to PED compliance.
However, the product may bear the CE marking to
indicate compliance with other applicable European
Community Directives.
Test Level
4 kV contact
8 kV air
80 to 1000 MHz @ 10V/m with 1 kHz AM at 80%
1400 to 2000 MHz @ 3V/m with 1 kHz AM at 80%
2000 to 2700 MHz @ 1V/m with 1 kHz AM at 80%
30 A/m at 50/60Hz
1 kV
1 kV
150 kHz to 80 MHz at 3 Vrms
Introduction
June 2017
(1)
Performance Criteria
Point-to- Multi-drop
Point Mode Mode
(2)
A A
A A
(2)
A A
A A
B B
A A
