Hardware description

2 Hardware description
2.1

STEVAL-IDB007V1M1 board overview

The SPBTLE-1S module in the STEVAL-IDB007V1M development kit lets you experiment
with BlueNRG-1 system-on-chip functions. It features:

Bluetooth
chip

Associated BlueNRG-1 development kit software package including firmware and
documentation

Up to +5 dBm available output radiated power (by the module integrated antenna)

Excellent receiver sensitivity (-88 dBm)

Very low power consumption: 7.7 mA RX and 8.3 mA TX at -2 dBm

Bluetooth
and-slave roles

SMA connector for antenna or measuring equipment

3 user LEDs

2 user buttons

3D digital accelerometer and 3D digital gyroscope

MEMS pressure sensor with embedded temperature sensor

Battery holder

JTAG debug connector

USB to serial bridge for providing I/O channel with the BlueNRG-1 device

Jumper for measuring current for BlueNRG-1 only

RoHS compliant

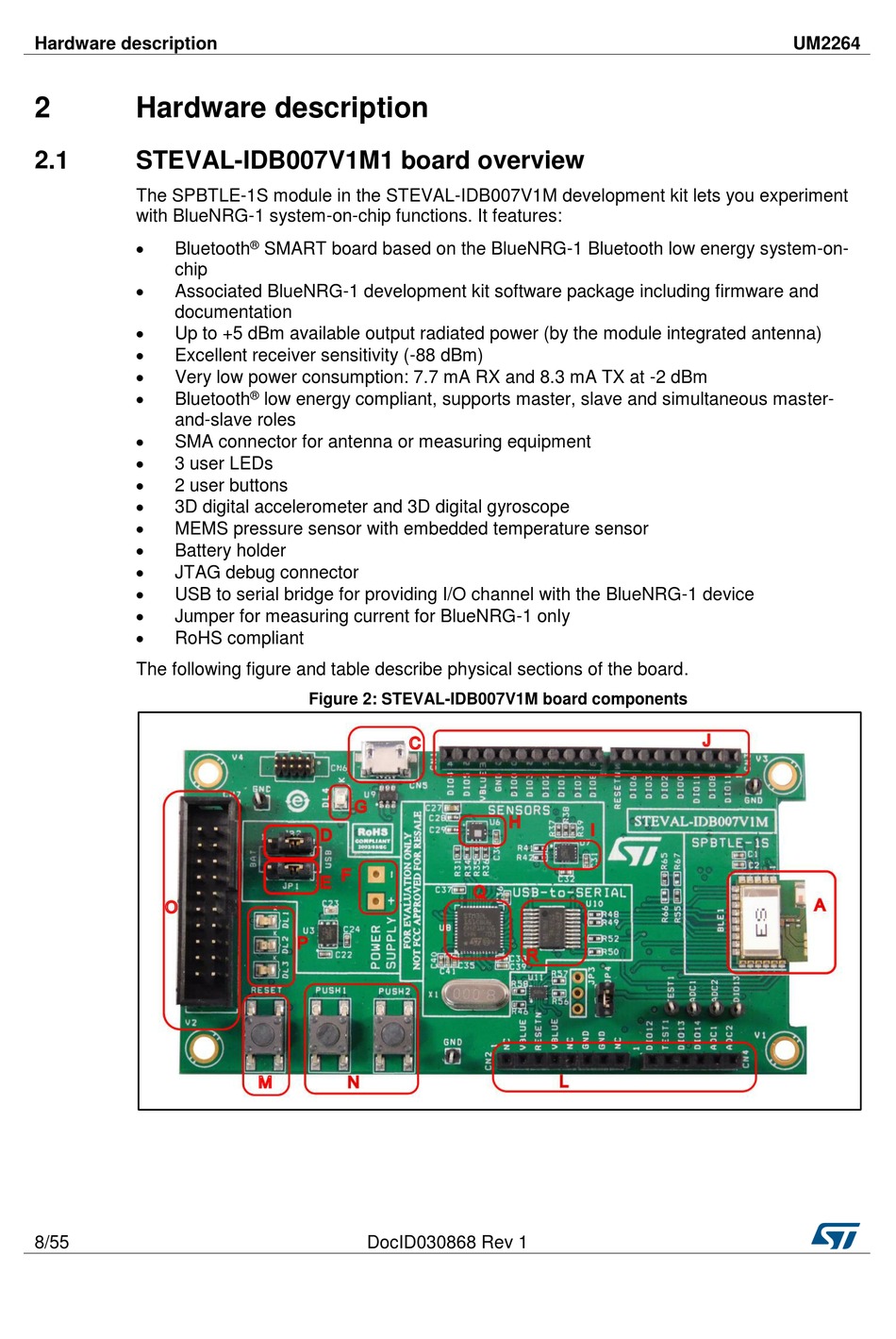

The following figure and table describe physical sections of the board.
8/55
®
SMART board based on the BlueNRG-1 Bluetooth low energy system-on-
®
low energy compliant, supports master, slave and simultaneous master-

Figure 2: STEVAL-IDB007V1M board components
