UM1560
User manual
STEVAL-IPC004V1: handheld point-of-sale (POS)
based on the STM32F1 series
Introduction
This user manual describes the functioning of the handheld point-of-sale system (the
STEVAL-IPC004V1) based on the STM32F1 series.
The system consists of the inbuilt thermal printer, external bar code scanner, memory
interface, LCD display, rechargeable battery supply system and many other features.
This system works like a typical POS. It catches the item information thanks to a USB-based
bar code scanner and after processing the information, adds it to the transaction record.
There are 2 methods of payment: smart card/ magnetic card interface over GPRS or cash
through keypad. The thermal printer prints the sales report and the result is recorded in the
onboard memory. The STEVAL-IPC004V1 operates from a 5 V adaptor, which is connected
to the board through the power jack provided. The system also comes with a PC-based
server application which has various access levels to control the STEVAL-IPC004V1
activities such as registration, the loading of item allotment tables in the internal memory,
and the storage of sales data for future reference. The server keeps sales data in the
database up to 2 months and it also monitors the STEVAL-IPC004V1 health status and
accordingly enables/disables its functioning. For human interaction, there is a keypad with
16 keys allowing a flexible interface. Finally, the system can be customized to include
interfaces such as: smart card, GPRS as per customer requests.

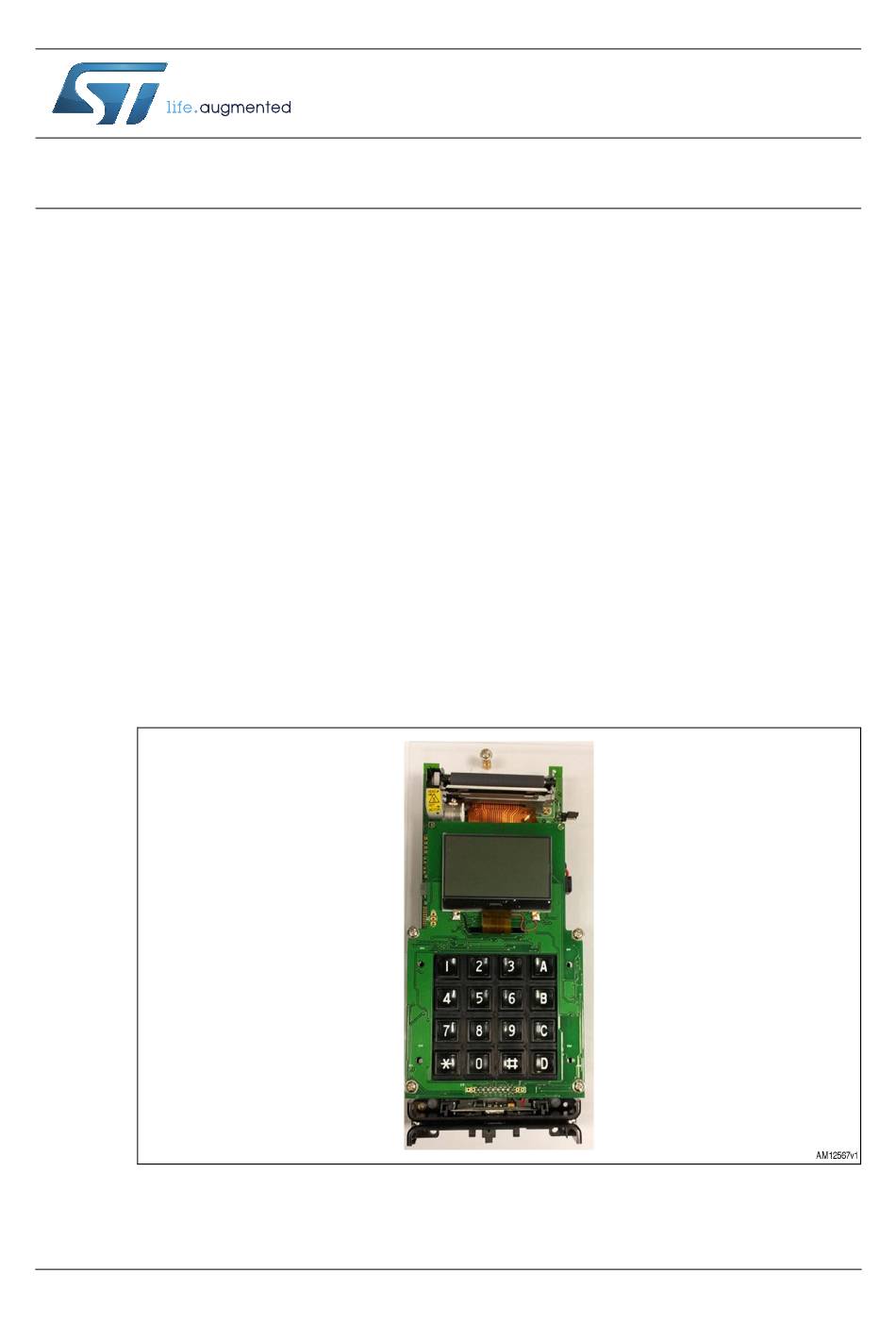

Figure 1. STEVAL-IPC004V1 evaluation board

May 2014
DocID023545 Rev 1
1/59
www.st.com
