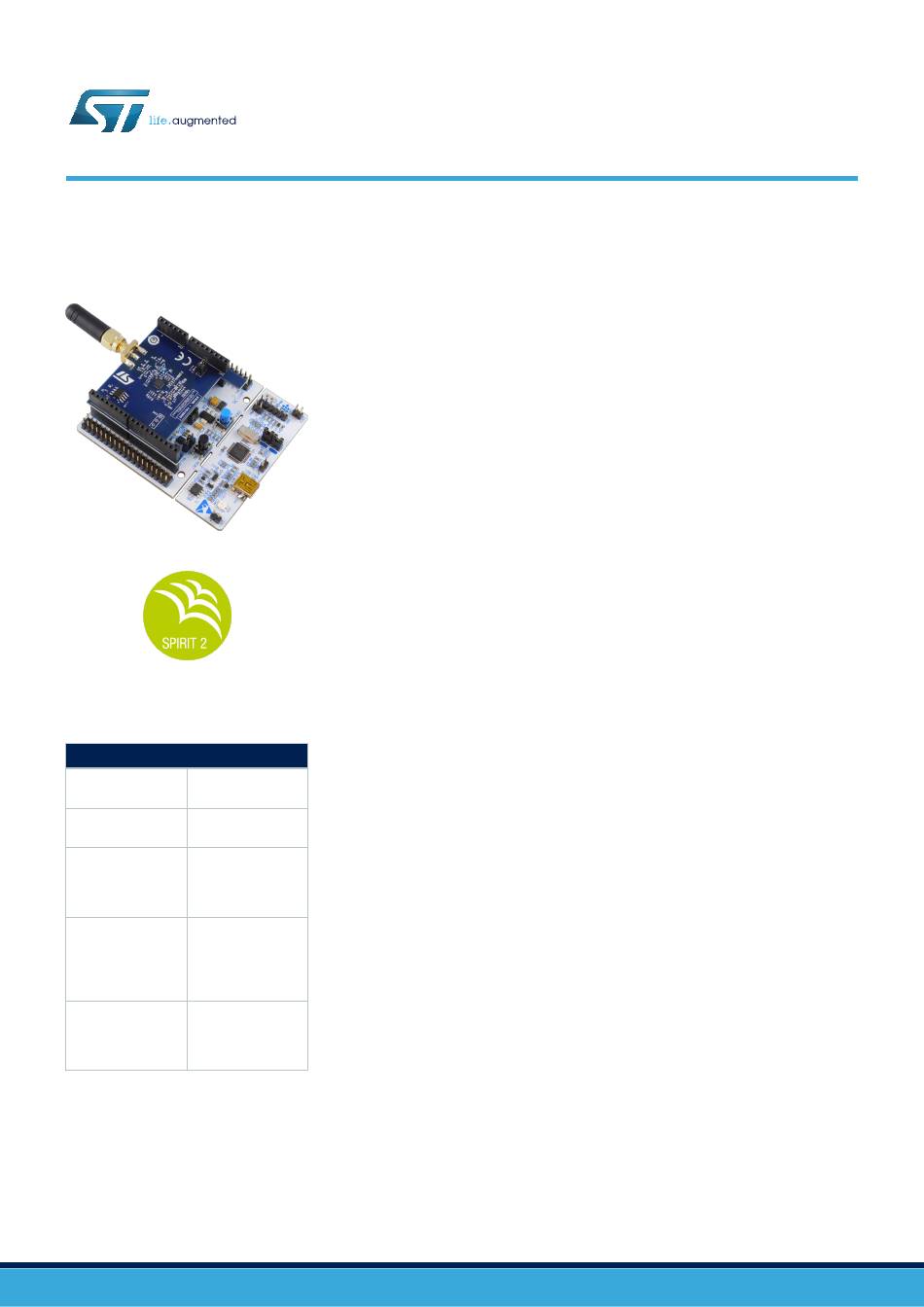

ST STEVAL-FKI433V2 Schematics

Sub-1GHz (430-470 MHz) transceiver development kit based on S2-LP
Product summary
STEVAL-FKI433V2 STEVAL-FKI433V2
evaluation board
NUCLEO-L053R8 NUCLEO-L053R8
motherboard
S2-LP high S2-LP
performance ultra-
low power RF
transceiver
STM32L0 series STM32L0
designed to achieve
an outstandingly
low power
consumption level
ST-LINK/V2 in- ST-LINK/V2
circuit debugger/
programmer for
STM8 and STM32
DB3551 - Rev 2 - March 2018
For further information contact your local STMicroelectronics sales office.
Features
• S2-LP narrow band ultra-low power sub-1GHz transceiver in a standalone RF
Module tuned for 430-470 MHz frequency bands
• STM32 Nucleo-64 development board with STM32L0 MCU
• Suitable for Wireless M-Bus systems
• Associated S2-LP development kit including, documentation, firmware for
STM32L and GUI
• Programmable RF output power up to +16 dBm
• Modulation schemes: 2-FSK, 2-GFSK, 4-FSK, 4-GFSK, OOK, and ASK
• Air data rate from 0.3 to 500 kbps
• Ultra-low power consumption:
– 6.7 mA RX
– 10 mA TX @ +10 dBm
• Excellent performance of receiver sensitivity (up to -130 dBm)
• Low duty cycle RX/TX operation mode
• Automatic acknowledgement, retransmission, and timeout protocol engine
• SPI interface for microcontroller
• USB interface
• RoHS compliant
Description
The STEVAL-FKI433V2 evaluation board is based on the
power low data-rate transceiver suitable for ISM bands and wireless M-Bus. The
NUCLEO-L053R8 motherboard is equipped with an STM32L0 low power
microcontroller to control the S2-LP.
The board integrates a ST-LINK/V2-1 debugger/programmer for firmware updating.
STEVAL-FKI433V2
Data brief
S2-LP sub-1GHz ultra-low
