UM2264
From the 'Tools' menu, you can mass erase all the device Flash memory.
4.2.2

Image file selection

Use the 'Select file' button on the main page (or the File>Load menu) to load an existing
.bin or .hex file. The full path of the selected file appears next to the button and the 'Flash'
becomes active.
By default, the 'Mass erase' option beside the 'Flash' button is not checked, and only the
required memory pages are erased and written with the file content. When this option is
checked, the memory flash phase is preceded by a full mass erase.
The 'Verify' option forces a check to ensure that the memory content has been written
correctly.
Check the 'Update memory table' option to update the 'Device Memory' table after the
flashing operation. This option is automatically checked when the 'Verify' checkbox is
selected.

'Image File' tab

4.2.3
The selected file name, size and parsed contents to be flashed to device memory can be
viewed in the 'Image File' tab.

'Device Memory' tab

4.2.4
Select this tab to view the memory contents of a connected device.

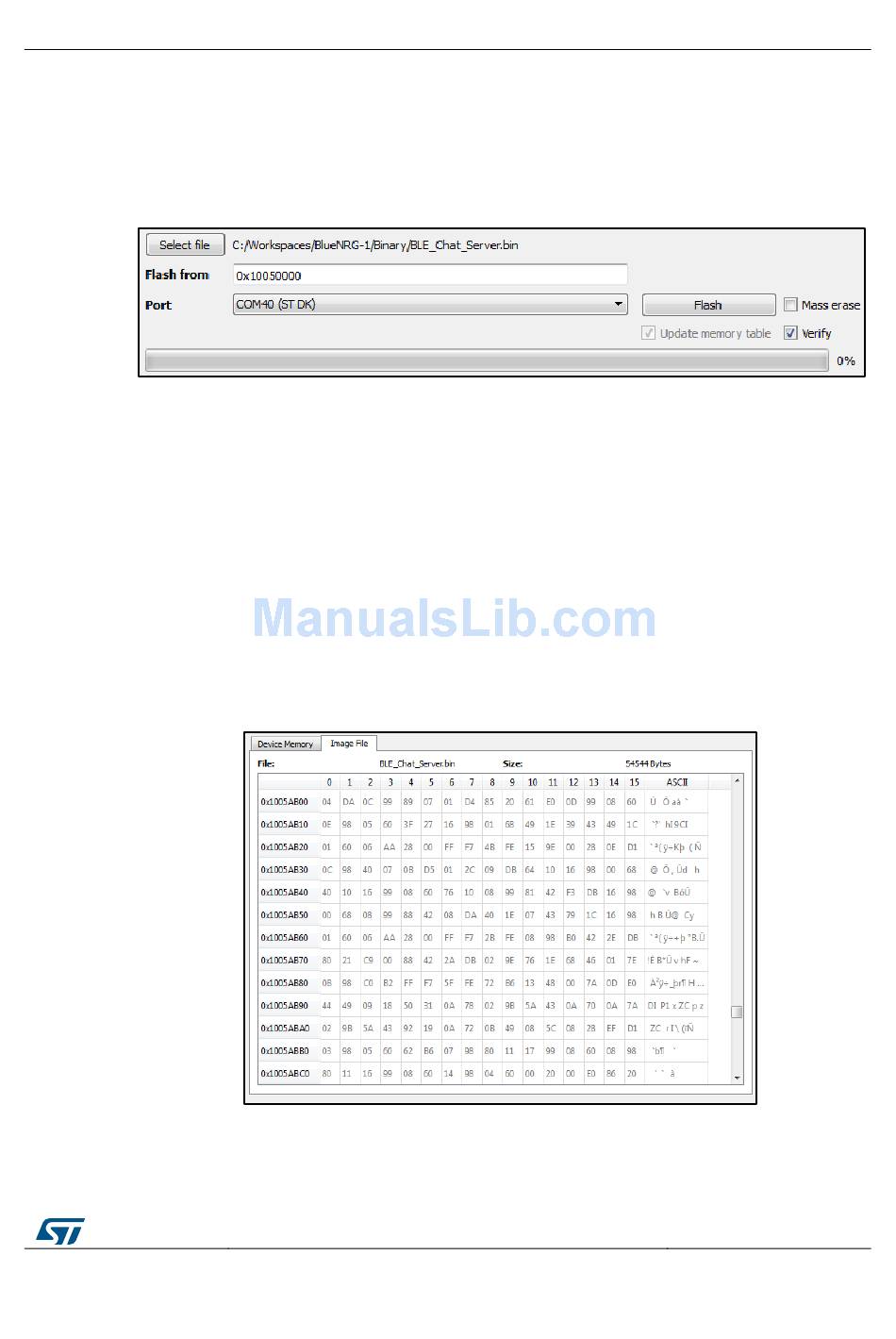

Figure 13: BlueNRG-1 Flasher utility file selection

Figure 14: BlueNRG-1 Flasher utility image file viewer

DocID030868 Rev 1
BlueNRG-1 Flasher utility
21/55
