BlueNRG-1 Flasher utility
4.2

Main user interface window

In the upper section of the BlueNRG-1 Flasher –Utility main window, you can:
1
Select the image file ('Select file' button)
2
Choose the flashing address ('Flash from' text input bar, only enabled for .bin files)
3
Select the COM port to be used to interface the device ('Port' dropdown list)
The SPBTLE-1S module or BlueNRG-1 device memory is read when the
associated COM port is opened.
4.2.1

Main menu items

From the 'File' menu, you can:
1
Load an existing .bin or .hex (Intel extended) file.
2
Save the current memory image in a .bin file. The start address and the size of the
memory section to be saved to file are selectable from the 'Device Memory' tab.
3
Close the application.
20/55

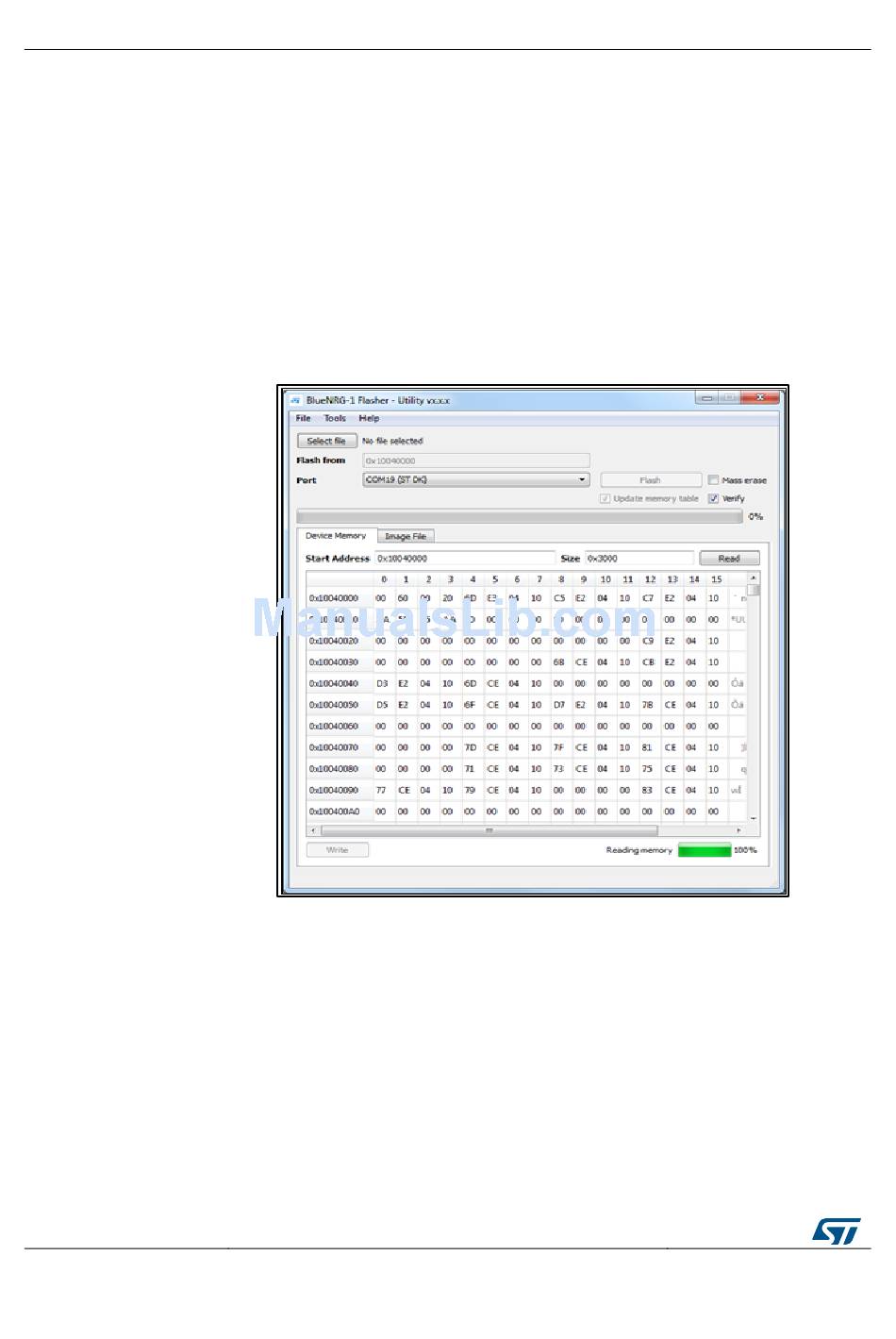

Figure 12: BlueNRG-1 Flasher utility main window

DocID030868 Rev 1
UM2264
