BlueNRG-1 Flasher utility
Click the 'Read' button to transfer the memory segment defined by 'Start Address and
'Size' into the table.
The first column gives the base address of the following 16 bytes in a row (e.g., row
0x10040050, column 4 holds the hexadecimal byte value at 0x10040054).
You can change byte values by double-clicking a cell and entering a new hexadecimal
value; edited bytes appear in red.
Click the 'Write' button to flash the entire page with the new byte values into device
memory.
4.2.5

Using BlueNRG-1 Flasher utility with other boards

The BlueNRG-1 Flasher utility automatically detects SPBTLE-1S evaluation boards like
STEVAL-IDB007V1M and uses an auxiliary STM32 (driven by the GUI) to reset the
BlueNRG-1 and put it into bootloader mode.
The application also works with custom boards providing simple UART access to the
SPBTLE-1S or BlueNRG-1 device but you must put the device in bootloader mode
manually. Upon the selection of any non-STEVAL COM port, the following popup appears.
22/55

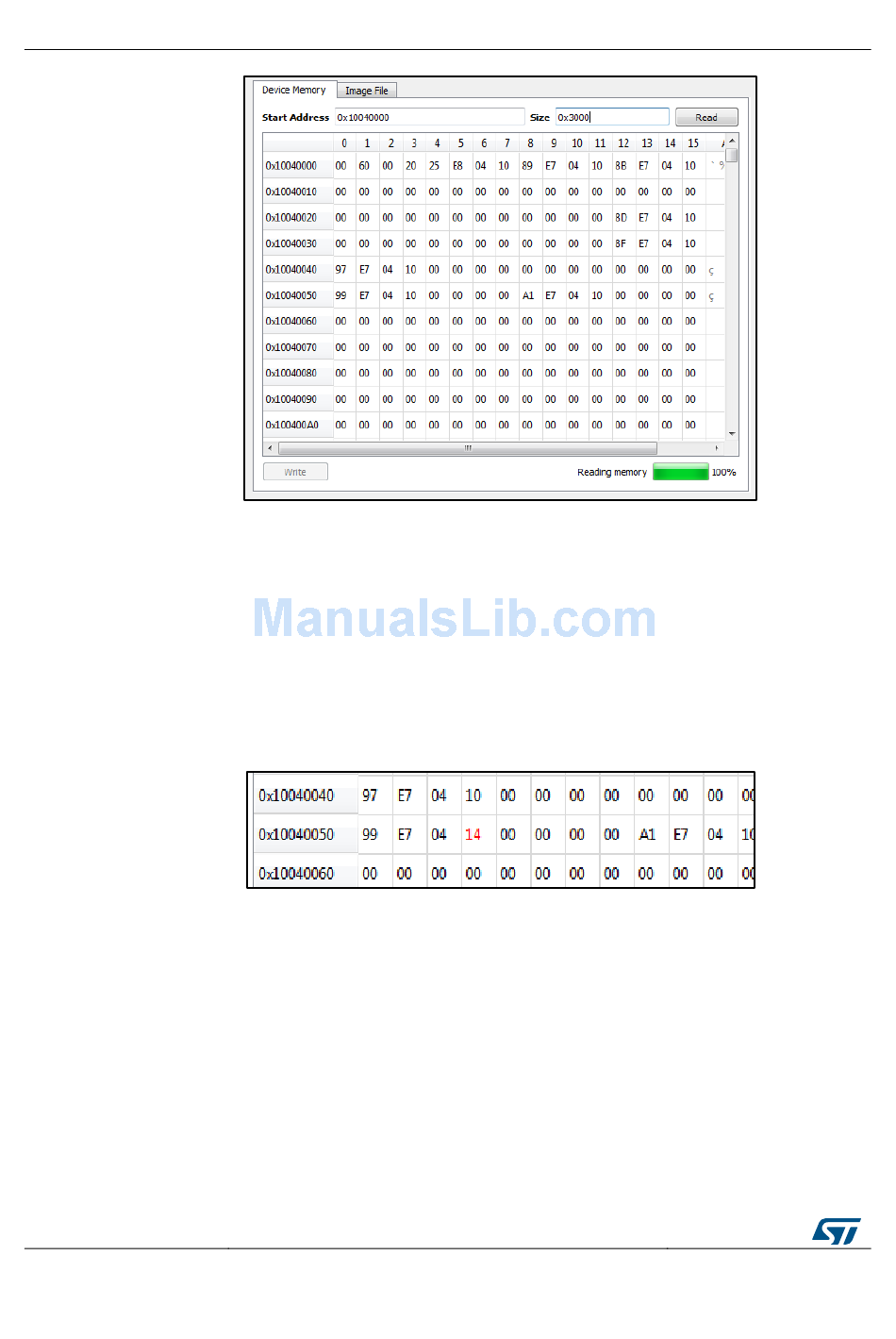

Figure 15: BlueNRG-1 Flasher utility device memory viewer

Figure 16: BlueNRG-1 Flasher utility changing memory fields

DocID030868 Rev 1
UM2264
