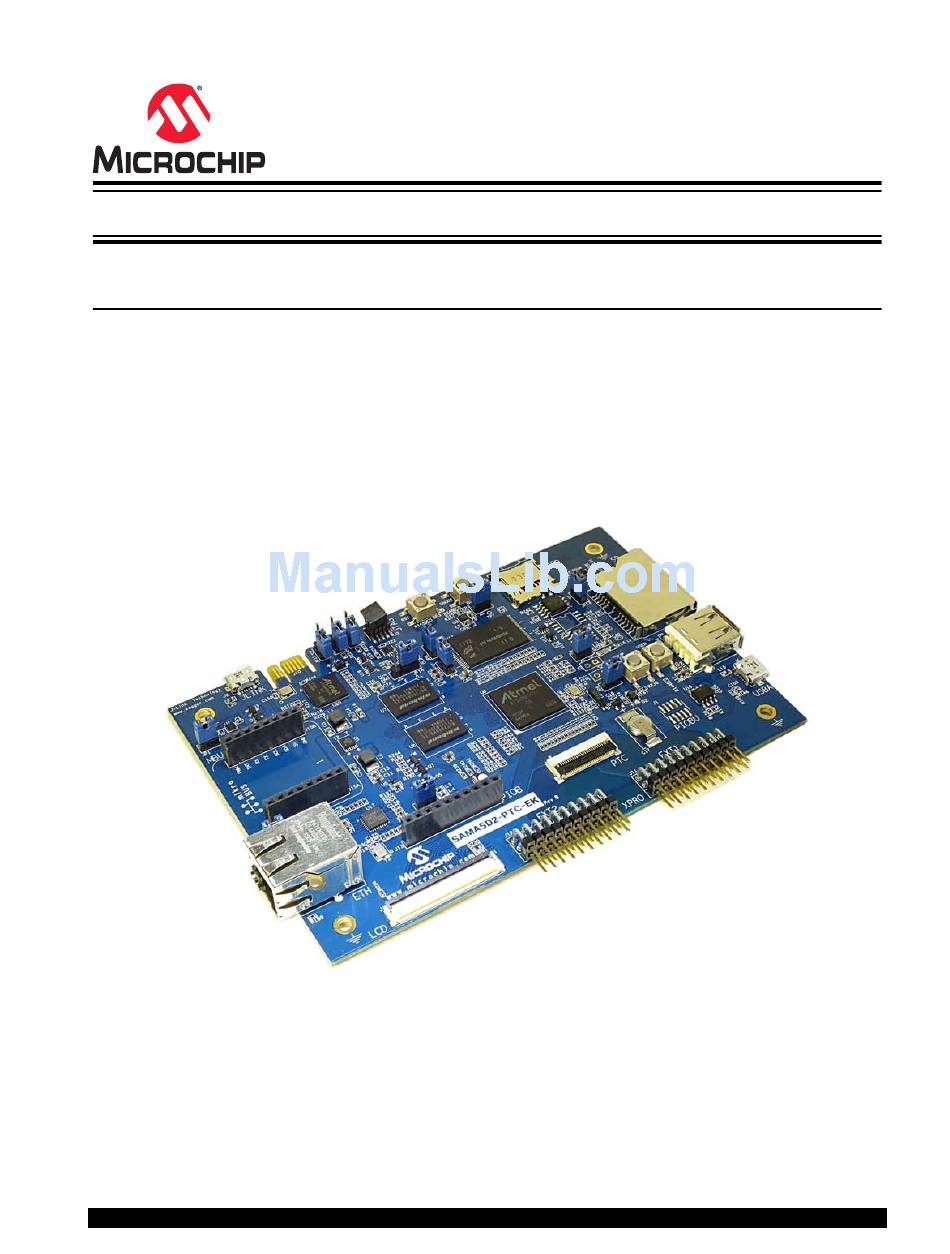

SAMA5D2-PTC-EK
SAMA5D2-PTC-EK User's Guide

Scope

This user's guide describes how to use the SAMA5D2 PTC Evaluation Kit (SAMA5D2-PTC-EK).
The SAMA5D2-PTC-EK is used to evaluate the capabilities of the Peripheral Touch Controller (PTC)
designed for the SAMA5D2 series of embedded MPUs. Refer to the Configuration Summary table in the
SAMA5D2 Series Datasheet for the list of MPUs featuring PTC.
DS50002709A-page 1
©
2017 Microchip Technology Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAMA5D2-PTC-EK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Microchip Technology SAMA5D2-PTC-EK

Summary of Contents for Microchip Technology SAMA5D2-PTC-EK

  • Page 1: Scope

    This user's guide describes how to use the SAMA5D2 PTC Evaluation Kit (SAMA5D2-PTC-EK). The SAMA5D2-PTC-EK is used to evaluate the capabilities of the Peripheral Touch Controller (PTC) designed for the SAMA5D2 series of embedded MPUs. Refer to the Configuration Summary table in the SAMA5D2 Series Datasheet for the list of MPUs featuring PTC.

  • Page 2: Table Of Contents

    Table of Contents Scope..........................1 1. Introduction........................3 1.1. Document Layout......................... 3 1.2. Recommended Reading.......................3 2. Product Overview...................... 4 2.1. SAMA5D2-PTC-EK Features....................... 4 2.2. SAMA5D2-PTC-EK Content......................5 2.3. Evaluation Kit Specifications......................5 2.4. Power Sources..........................5 3. Board Components....................6 3.1. Board Overview..........................6 3.2.

  • Page 3: Introduction

    The document is organized as follows: • Chapter 1. "Introduction" • Chapter 2. "Product Overview" – Important information about the SAMA5D2-PTC-EK board • Chapter 3. "Board Components" – Specifications of the SAMA5D2-PTC-EK and high-level description of the major components and interfaces •...

  • Page 4: Product Overview

    Product Overview SAMA5D2-PTC-EK Features The SAMA5D2-PTC-EK follows the Microchip MPU strategy for low cost evaluation kits with maximum reuse capability, and is built on the SAMA5D2 Xplained Ultra (XULT) hardware and software ecosystem. This board is mainly dedicated to evaluating the Peripheral Touch Controller capabilities.

  • Page 5: Sama5D2-Ptc-Ek Content

    Compliant Board identification SAMA5D2 Peripheral Touch Controller Evaluation Kit Power Sources Several options are available to power up the SAMA5D2-PTC-EK board: • USB powering through the USB Micro-AB connector (J4 - default configuration) • Powering through the USB Micro-AB connector on the JLlink-OB Embedded Debugger interface (J9) Table 2-3. Electrical Characteristics...

  • Page 6: Board Components

    Board Components Board Components This section covers the specifications of the SAMA5D2-PTC-EK and provides a high-level description of the board's major components and interfaces. This document is not intended to provide a detailed documentation about the processor or about any other component used on the board. It is expected that the user will refer to the appropriate documents of these devices to access detailed information.
  • Page 7 SAMA5D2-PTC-EK Board Components Figure 3-1. Default Jumper Settings The following table describes the functionality of the jumpers. Table 3-1. SAMA5D2-PTC-EK Jumper Settings Jumper Default Function Closed VDD_MAIN_5V current measurement Closed VDDOSC, VDDUTMII, VDDANA, VDDAUDIOPLL current measurement Closed VDDISC + VDDIOP0/1/2 current measurement...
  • Page 8 Enables 3.3V JLINK-OB, connected to shutdown circuitry Enables 3.3V JLINK-OB, always ON 3.1.2 Connectors on Board The following table describes the interface connectors on the SAMA5D2-PTC-EK. Table 3-2. SAMA5D2-PTC-EK Board Interface Connectors Connector Interfaces to PIOBU, tamper and analog comparator connector (not populated) JTAG, 10-pin IDC connector USB Host B.

  • Page 9: Function Blocks

    3.2.2.1 Input Power Options Two options are available to power the SAMA5D2-PTC-EK board. The USB-powered operation is the default configuration and comes from the USB device ports (J4-J9) connected to a PC or a 5VDC supply. Such USB power source is sufficient to supply the board in most applications. It is important to note that when the USB-powered operation is used, the USB port down the way has a limited powering capability.
  • Page 10 Note:  USB-powered operation eliminates additional wires and batteries. It is the preferred mode of operation for any project that requires only a 5V source at up to 500 mA. Jumper JP1 is used to perform MAIN_5V current measurements on the SAMA5D2-PTC-EK board. 3.2.2.2 Power Supply Requirements and Restrictions Detailed information on the device power supplies is provided in tables “SAMA5D2 Power Supplies”...
  • Page 11 The main regulators provide all power supplies required by the SAMA5D2 device: • 1.25V VDDCORE, VDDPLLA, VDDUTMIC, VDDHSIC • 1.8V VDDIODDR, VDDSDHC1V8 • 2.5V VDDFUSE • 3.3V VDDIOP0, VDDIOP1, VDDIOP2, VDDISC • 3.3V VDDOSC, VDDUTMI, VDDANA, VDDAUDIOPLL • 3.3V VDDBU DS50002709A-page 11 © 2017 Microchip Technology Inc.
  • Page 12 100nF 100nF 100nF 100nF 100nF C0603 C0603 C0402 C0402 C0402 C0402 C0402 C0402 C0402 C0402 C0402 GND_POWER GND_POWER GND_POWER GND_POWER 3.2.2.6 VDDFUSE The SAMA5D2-PTC-EK board embeds a 2.5V regulator for fuse box programming. DS50002709A-page 12 © 2017 Microchip Technology Inc.

  • Page 13: Reset Circuitry

    3.2.2.7 Backup Power Supply The SAMA5D2-PTC-EK board requires a power source in order to permanently power the backup part of the SAMA5D2 device (refer to SAMA5D2 Series datasheet). The super capacitor C17 sustains such permanent power to VDDBU when all system power sources are off.

  • Page 14: Clock Circuitry

    The embedded microcontroller generates its necessary clocks based on two crystal oscillators: one slow clock (SLCK) oscillator running at 32.768 KHz and one main clock oscillator running at 24 MHz. The SAMA5D2-PTC-EK board includes four clock sources: • The two clocks mentioned above are alternatives for the SAMA5D2 processor (24 MHz, 32.768 kHz) •...
  • Page 15 The SAMA5D2 features a DDR/SDR memory interface and an External Bus Interface (EBI) to enable interfacing to a wide range of external memories and to almost any kind of parallel peripheral. This section describes the memory devices mounted on the SAMA5D2-PTC-EK board: •...
  • Page 16 C0402 GND_POWER GND_POWER GND_POWER GND_POWER 3.2.7.3 DDR_CAL Analog Input One specific analog input, DDR_CAL, is used to calibrate all DDR I/Os. Table 3-3. Calibration Cell DDR_CAL Value Memory Resistor value LPDDR2/LPDDR3 DDR3L DDR3 DDR2/LPDDR1 DS50002709A-page 16 © 2017 Microchip Technology Inc.
  • Page 17 GND_POWER 3.2.7.4 NAND FLASH The SAMA5D2-PTC-EK has native support for NAND Flash memory through its NAND Flash Controller. The board implements one MT29F4G08ABA 4Gb x 16 NAND Flash connected to chip select three (NCS3) of the microcontroller. Caution:  The NAND Flash interface is shared with the SDMMC1 and QSPI interfaces.
  • Page 18 One SPI port is used to interface with the on-board serial Flash. The following figure illustrates the implementation of an SPI Flash memory. Figure 3-17. Serial Flash VDD_3V3 SPI0_MOSI_PA15 SPI0_MISO_PA16 C119 SPI0_SPCK_PA14 100nF HOLD SPI0_CS0_PA17 C0402 SST26VF032B-104I/SM soic8jg GND_POWER DS50002709A-page 18 © 2017 Microchip Technology Inc.
  • Page 19 PA16 SPI0_MISO Master in - Slave out PA17 SPI0_NPCS0 Chip select PA22 QSPI0_SCK SDMMC1-Nand Flash QSPI clock PA23 QSPI0_CS Nand Flash Chip select PA24 QSPI0_IO0 Nand Flash Data0 PA25 QSPI0_IO1 Nand Flash Data1 DS50002709A-page 19 © 2017 Microchip Technology Inc.
  • Page 20 3.2.8.4 Serial EEPROM with Unique MAC Address The SAMA5D2-PTC-EK board embeds one Microchip 24AA02E48 I²C serial EEPROM connected on the TWI1 interface. The TWI interface is I C-compatible and similarly uses only two lines, namely serial data (SDA) and serial clock (SCL).
  • Page 21 3.2.9.1 Secure Digital Multimedia Card (SDMMC) Controller The SAMA5D2-PTC-EK board has two Secure Digital Multimedia Card (SDMMC) interfaces that support the MultiMedia Card (e.MMC) Specification V4.41, the SD Memory Card Specification V3.0, and the SDIO V3.0 specification. It is compliant with the SD Host Controller Standard V3.0 Specification.
  • Page 22 Pin No Mnemonic Signal Description MCI0_DA3 SDMMC0_DAT3_PA5 MCI0_CDA SDMMC0_CMD_PA1 VDDSDHC (3.3V or 1.8V) MCI0_CK SDMMC0_CK_PA0 MCI0_CD SDMMC0_CD_PA13 (card detect) MCI0_DA0 SDMMC0_DAT0_PA2 MCI0_DA1 SDMMC0_DAT1_PA3 MCI0_DA2 SDMMC0_DAT2_PA4 MCI0_DA4 SDMMC0_DAT4_PA6 MCI0_DA5 SDMMC0_DAT5_PA7 MCI0_DA6 SDMMC0_DAT6_PA8 MCI0_DA7 SDMMC0_DAT7_PA9 DS50002709A-page 22 © 2017 Microchip Technology Inc.
  • Page 23 R166 R168 R170 R0402 R0603 R0603 R0603 R0603 R0402 (MCI1_CD) SDMMC1_CD_PA30 (MCI1_DA1) SDMMC1_DAT1_PA19 (MCI1_DA0) SDMMC1_DAT0_PA18 (MCI1_CK) SDMMC1_CK_PA22 (MCI1_CDA) SDMMC1_CMD_PA28 (MCI1_DA3) SDMMC1_DAT3_PA21 (MCI1_DA2) SDMMC1_DAT2_PA20 PJS008-2120-0 GND_POWER C108 C109 Micro_SD_PJS008 10uF 100nF C0603 C0402 GND_POWER DS50002709A-page 23 © 2017 Microchip Technology Inc.
  • Page 24 SDMMC1_CK PA22 – Clock – – Common ground SDMMC1_DAT0 PA18 – Data bit 0 SDMMC1_DAT1 PA19 – Data bit 1 – Not used SDMMC1_CD PA30 – Card detection switch – – Common ground DS50002709A-page 24 © 2017 Microchip Technology Inc.
  • Page 25 This section describes the signals and connectors related to the ETH and USB communication interfaces. 3.2.10.1 Ethernet 10/100 (GMAC) Port The SAMA5D2-PTC-EK board features a Micrel PHY device (KSZ8081) operating at 10/100 Mb/s. The board supports RMII interface modes. The Ethernet interface consists of two pairs of low-voltage differential pair signals designated from GRX±...
  • Page 26 Interrupt (open drain) Figure 3-27. Ethernet PHY Connector J8 13F-64GYD2PL2NL C121 C122 100nF 100nF C0402 C0402 GND_ETH Right yellow LED Left Green LED EARTH_ETH EARTH_ETH rj45_13f-64gy_P12_4 ETH_LED1 VDD_3V3 ETH_LED0 LINK R189 510R R0402 R190 510R R0402 DS50002709A-page 26 © 2017 Microchip Technology Inc.
  • Page 27 Decoupling capacitor – Receive – EARTH / GND Common ground ACT LED LED activity ACT LED LED activity LINK LED LED link connection LINK LED LED link connection EARTH / GND Common ground DS50002709A-page 27 © 2017 Microchip Technology Inc.
  • Page 28 480 Mbps (also known as High Speed USB). A USB host bus connector uses 4 pins: a power supply pin (5V), a differential pair (D+ and D- pins) and a ground pin. The SAMA5D2-PTC-EK board features three USB communication ports named USB-A to USB-C: •...
  • Page 29 USBMICRO5_6A MicroUSB AB Connector EARTH_USB_A Table 3-12. USB-A PIO Signal Descriptions Mnemonic Shared Signal Description PB11 USBA_VBUS_5V VBUS insertion detection 3.2.10.5 USB-B Interface The figure below shows the USB implementation on the USB-B port. DS50002709A-page 29 © 2017 Microchip Technology Inc.
  • Page 30 MIC2025, which in turn supplies power to a bus-powered client device. Per the USB specification, bus- powered USB 2.0 devices are limited to a maximum of 500 mA. The MIC2025 limits the current and indicates an overcurrent with the USBB_OVCUR_PB13 signal. DS50002709A-page 30 © 2017 Microchip Technology Inc.

  • Page 31: External Interfaces

    3.3.1.1 LCD Interface The SAMA5D2-PTC-EK board provides a connector with 18 bits of data and control signals to the LCD interface. Other signals are used to control the LCD and are available on connector J16: TWI, SPI, two GPIOs for interrupt, 1-wire and power supply lines.
  • Page 32 R0603 GND_POWER 3.3.1.3 LCD Power In order to operate correctly with various LCD modules, two voltage lines are available: 3.3V and 5VCC (default). The selection is made with 0R resistors R230 and R231. DS50002709A-page 32 © 2017 Microchip Technology Inc.
  • Page 33 RGB Interface Function PB31 ID LCD module LCDDAT0 – – LCDDAT1 – – LCDDAT2 PC10 Data line LCDDAT3 PC11 Data line LCDDAT4 PC12 Data line LCDDAT5 PC13 Data line LCDDAT6 PC14 Data line DS50002709A-page 33 © 2017 Microchip Technology Inc.
  • Page 34 Data enable SPI_SPCK PB30 SPI_SCK – SPI_MOSI PB28 SPI_MOSI (Shared with TWI) SPI_MISO PB29 SPI_MISO (Shared with TWI) SPI_NPCS0 PB31 SPI_CS – LCDDISP PC29 ENABLE Display enable signal PB28 TWI_SDA I2C data line (maXTouch) DS50002709A-page 34 © 2017 Microchip Technology Inc.

  • Page 35: Debugging Capabilities

    Main_5V/3V3 3.3V or 5V supply (0R) 3.3.2 RGB LED The SAMA5D2-PTC-EK board features one RGB LED which can be controlled by the user. The three LED cathodes are controlled via GPIO PWM or timer/counter pins. Figure 3-36. RGB LED Indicators BSS138...
  • Page 36 This section describes the signals and connectors related to the JTAG interface. A 10-pin JTAG header is provided on the SAMA5D2-PTC-EK board to facilitate software development and debugging using various JTAG emulators. The interface signals have a voltage level of 3.3V.
  • Page 37 3.4.2 Embedded Debugger (JLINK-OB) Interface The SAMA5D2-PTC-EK includes a built-in SEGGER J-Link-On-Board device. The functionality is implemented with an ATSAM3U4C microcontroller in an LFBGA100 package. The ATSAM3U4C provides the functions of JTAG and a bridge USB/Serial debug port (CDC). One two-colored LED (D6) mounted near the SAM3 chip (U20) shows the status of the J-Link-On-Board device.
  • Page 38 Communication Device Class (CDC) of the same USB connector remains operational (if JP9 is open). Figure 3-40. Enabling/Disabling JLINK-OB and JLINK-CDC VDD_3V3_3U R224 Header 1X2 R0402 PA25_3U JTAG-CDC disable GND_POWER VDD_3V3_3U JP10 Header 1X2 R225 R0402 PA26_3U JTAG-OB disable GND_POWER DS50002709A-page 38 © 2017 Microchip Technology Inc.
  • Page 39 USB, such as a terminal program. Table 3-18. Debug COM Port PIOs Signal Descriptions Mnemonic Shared Signal Description PB26 URXD0 Receive data PB27 UTXD0 Transmit data DS50002709A-page 39 © 2017 Microchip Technology Inc.

  • Page 40: Pio Usage On Expansion Connectors

    This connector is used to upgrade or download code to the ATSAM3U4C microcontroller JLINK-OB. PIO Usage on Expansion Connectors 3.5.1 PIOBU Interface The SAMA5D2-PTC-EK board features eight tamper pins for static or dynamic intrusion detection, UART reception, and two analog pins for comparison. DS50002709A-page 40 ©...
  • Page 41 PIOBU4 PIOBU6 3.5.2 mikroBUS Interface The SAMA5D2-PTC-EK hosts a pair of 8-pin female headers as mikroBus interface. The mikroBUS interface defines the main board sockets and add-on boards used for interfacing microprocessors with DS50002709A-page 41 © 2017 Microchip Technology Inc.
  • Page 42 Table 3-21. mikroBUS Connector J15 Pin Assignment SAMA5D27 SAMA5D27 Function MBUS Signal Pin No. MBUS Signal Function Analog input PD25 PD20 Reset PC05 PD19 Interrupt SPI chip select PC04 SPI_NPCS UART_RX PD23 UART receive DS50002709A-page 42 © 2017 Microchip Technology Inc.
  • Page 43 3.5.3 XPRO Interface The SAMA5D2-PTC-EK board hosts two connectors to interface XPRO QT boards. The QTouch Xplained Pro are extension boards that enable evaluation of Self-capacitance and Mutual capacitance modes using the Peripheral Touch Controller (PTC). The boards show how easy it is to design a capacitive touch board solution using the PTC without the need for any external components.
  • Page 44 XPRO_TWCK UART_RX 13 14 UART_TX – PTC_YLINE6 PD17 SPI_SS_A 15 16 SPI_MOSI PD18 PTC_YLINE7 GPIO PD26 SPI_MISO 17 18 SPI_SCK PD31 or PD17 PTC_YLINE6 GROUND – 19 20 VCC 3V3 – 3.3V Supply DS50002709A-page 44 © 2017 Microchip Technology Inc.
  • Page 45 The table below describes the pin assignment of XPRO EXT2 connector J12. Table 3-23.  XPRO EXT2 Connector J12 Pin Assignment SAMA5D27 SAMA5D27 XPRO XPRO Function Signal Pin No. Signal Function Not used – GROUND PTC_XLIN PTC_XLIN ADC(+) ADC(-) PTC_XLIN PTC_XLIN GPIO GPIO DS50002709A-page 45 © 2017 Microchip Technology Inc.
  • Page 46 PIOs PB00 to PB07 are available on connector J13 and can be used as GPIO pins. Each of these can be configured as an input or output pin according to the PIO peripheral functions. Figure 3-51. PIOs PB[0-7] Connector VDD_3V3 PB_PORT_0 PB_PORT_1 PB_PORT_2 PB_PORT_3 PB_PORT_4 PB_PORT_5 PB_PORT_6 PB_PORT_7 PIOB[0-7] connector GND_POWER DS50002709A-page 46 © 2017 Microchip Technology Inc.
  • Page 47 NAND Flash PIO port B GPIO NAND Flash PIO port B GPIO PIO port B GPIO PIO port B GPIO PIO port B GPIO LED_BLUE PIO port B GPIO PIO port B Common ground DS50002709A-page 47 © 2017 Microchip Technology Inc.

  • Page 48: Installation And Operation

    Personal Computer • USB cable Board Setup Follow these steps before using the SAMA5D2-PTC-EK: Unpack the board, taking care to avoid electrostatic discharge. Check the default jumper settings. Connect the USB Micro-AB cable to connector J9. Connect the other end of the cable to a free port of your PC.

  • Page 49: Appendix A. Schematics And Layouts

    SAMA5D2-PTC-EK Appendix A. Schematics and Layouts Appendix A. Schematics and Layouts This appendix contains the following schematics and layouts for the SAMA5D2-PTC-EK board: • Title and Revision History • Block Diagram • Power Domains • MPU Power • DDR2-SDRAM •...
  • Page 50 DES. DES. DES. DATE DATE DATE VER. VER. VER. DATE DATE DATE SAMA5D2-PTC-EK SAMA5D2-PTC-EK SAMA5D2-PTC-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET 02) Block Diagram 02) Block Diagram 02) Block Diagram DS50002709A-page 50 © 2017 Microchip Technology Inc.
  • Page 51 DATE DATE DATE VER. VER. VER. DATE DATE DATE SAMA5D2-PTC-EK SAMA5D2-PTC-EK SAMA5D2-PTC-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET GND_POWER GND_POWER GND_POWER 03) Power domains 03) Power domains 03) Power domains DS50002709A-page 51 © 2017 Microchip Technology Inc.
  • Page 52 MODIF. MODIF. MODIF. DES. DES. DES. DATE DATE DATE VER. VER. VER. DATE DATE DATE SAMA5D2-PTC-EK SAMA5D2-PTC-EK SAMA5D2-PTC-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET 04) MPU_POWER 04) MPU_POWER 04) MPU_POWER DS50002709A-page 52 © 2017 Microchip Technology Inc.
  • Page 53 MODIF. MODIF. MODIF. DES. DES. DES. DATE DATE DATE VER. VER. VER. DATE DATE DATE SAMA5D2-PTC-EK SAMA5D2-PTC-EK SAMA5D2-PTC-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET 05) DDR2-SDRAM 05) DDR2-SDRAM 05) DDR2-SDRAM DS50002709A-page 53 © 2017 Microchip Technology Inc.
  • Page 54 MODIF. MODIF. MODIF. DES. DES. DES. DATE DATE DATE VER. VER. VER. DATE DATE DATE SAMA5D2-PTC-EK SAMA5D2-PTC-EK SAMA5D2-PTC-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET 06) PIOA&PIOB 06) PIOA&PIOB 06) PIOA&PIOB DS50002709A-page 54 © 2017 Microchip Technology Inc.
  • Page 55 MODIF. MODIF. MODIF. DES. DES. DES. DATE DATE DATE VER. VER. VER. DATE DATE DATE SAMA5D2-PTC-EK SAMA5D2-PTC-EK SAMA5D2-PTC-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET 07) PIOC&PIOD 07) PIOC&PIOD 07) PIOC&PIOD DS50002709A-page 55 © 2017 Microchip Technology Inc.
  • Page 56 MODIF. MODIF. MODIF. DES. DES. DES. DATE DATE DATE VER. VER. VER. DATE DATE DATE SAMA5D2-PTC-EK SAMA5D2-PTC-EK SAMA5D2-PTC-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET 08) SYSTEM 08) SYSTEM 08) SYSTEM DS50002709A-page 56 © 2017 Microchip Technology Inc.
  • Page 57 MODIF. MODIF. MODIF. DES. DES. DES. DATE DATE DATE VER. VER. VER. DATE DATE DATE SAMA5D2-PTC-EK SAMA5D2-PTC-EK SAMA5D2-PTC-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET 09) USB&TF 09) USB&TF 09) USB&TF DS50002709A-page 57 © 2017 Microchip Technology Inc.
  • Page 58 DATE DATE VER. VER. VER. DATE DATE DATE NC16 VSS_2 SAMA5D2-PTC-EK SAMA5D2-PTC-EK SAMA5D2-PTC-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET NC17 VSS_3 NC18 VSS_4 10) MEMORIES&RGBLED 10) MEMORIES&RGBLED 10) MEMORIES&RGBLED MT29F4G08ABADAWP DS50002709A-page 58 © 2017 Microchip Technology Inc.
  • Page 59 MODIF. MODIF. MODIF. DES. DES. DES. DATE DATE DATE VER. VER. VER. DATE DATE DATE SAMA5D2-PTC-EK SAMA5D2-PTC-EK SAMA5D2-PTC-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET 11) Ethernet_10/100M 11) Ethernet_10/100M 11) Ethernet_10/100M DS50002709A-page 59 © 2017 Microchip Technology Inc.
  • Page 60 DES. DES. DATE DATE DATE VER. VER. VER. DATE DATE DATE R0603 SAMA5D2-PTC-EK SAMA5D2-PTC-EK SAMA5D2-PTC-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET GND_POWER 12) JLINK-OB 12) JLINK-OB 12) JLINK-OB EARTH_USB_EDBG GND_POWER DS50002709A-page 60 © 2017 Microchip Technology Inc.
  • Page 61 MODIF. MODIF. MODIF. DES. DES. DES. DATE DATE DATE VER. VER. VER. DATE DATE DATE SAMA5D2-PTC-EK SAMA5D2-PTC-EK SAMA5D2-PTC-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET 13) EXT_CONNECTORS 13) EXT_CONNECTORS 13) EXT_CONNECTORS DS50002709A-page 61 © 2017 Microchip Technology Inc.

  • Page 62: Revision History

    SAMA5D2-PTC-EK Revision History Revision History Rev. A - 12/2017 This is the initial released version of this user's guide. DS50002709A-page 62 © 2017 Microchip Technology Inc.
