ROOM DOOR PANEL CONNECTION FOR THE V-TYPE
MONITORS (OPTIONAL)

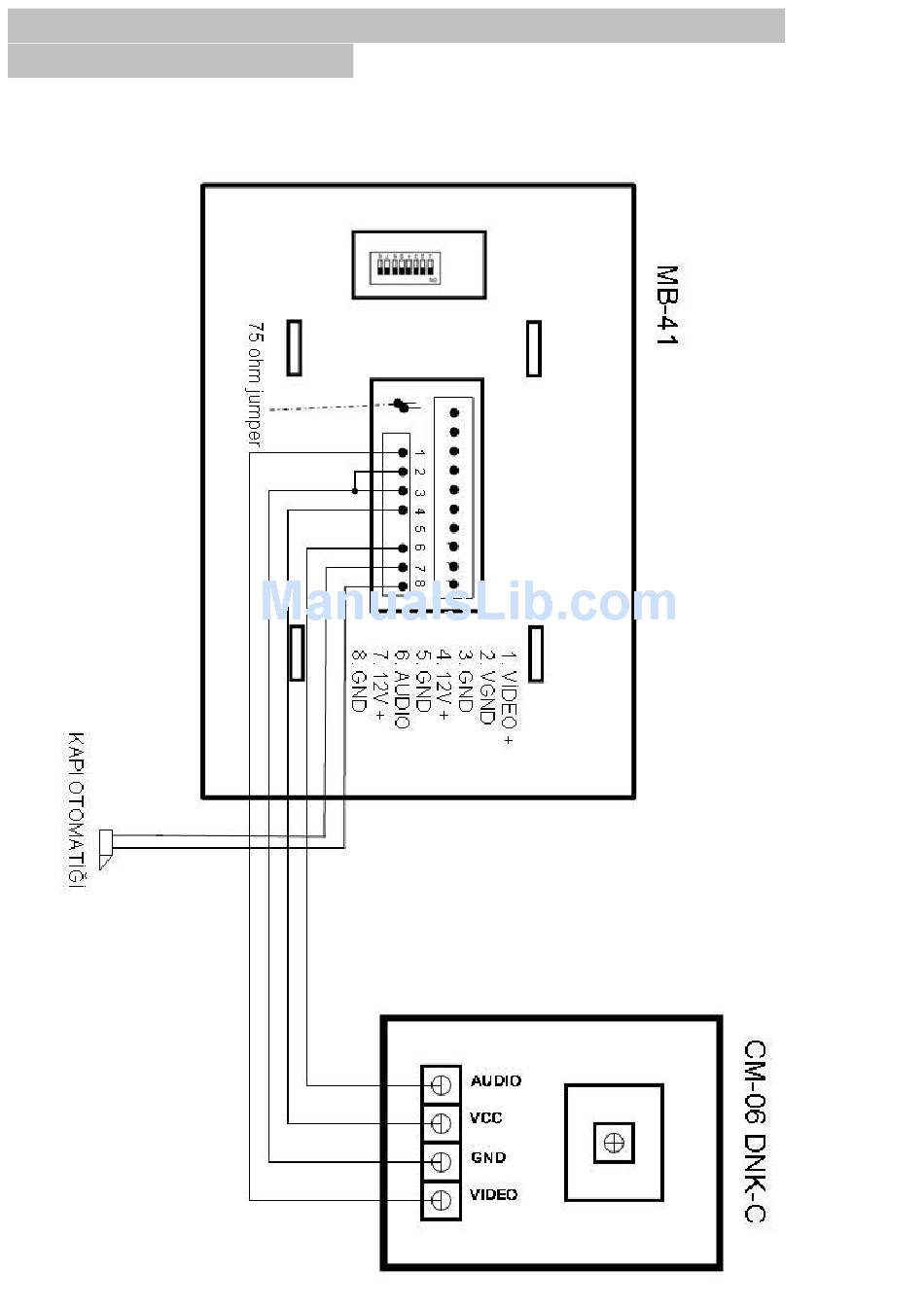

In the multibus intercom system, you may setup "internal ring button with camera" to see the room
door entrance. The internal ring unit CM-06DNK-C or MB–09M-PA wiring is done like the figure
below;
