Metra Electronics 99-5025 Installation Instructions

Ford mustang1987-1993

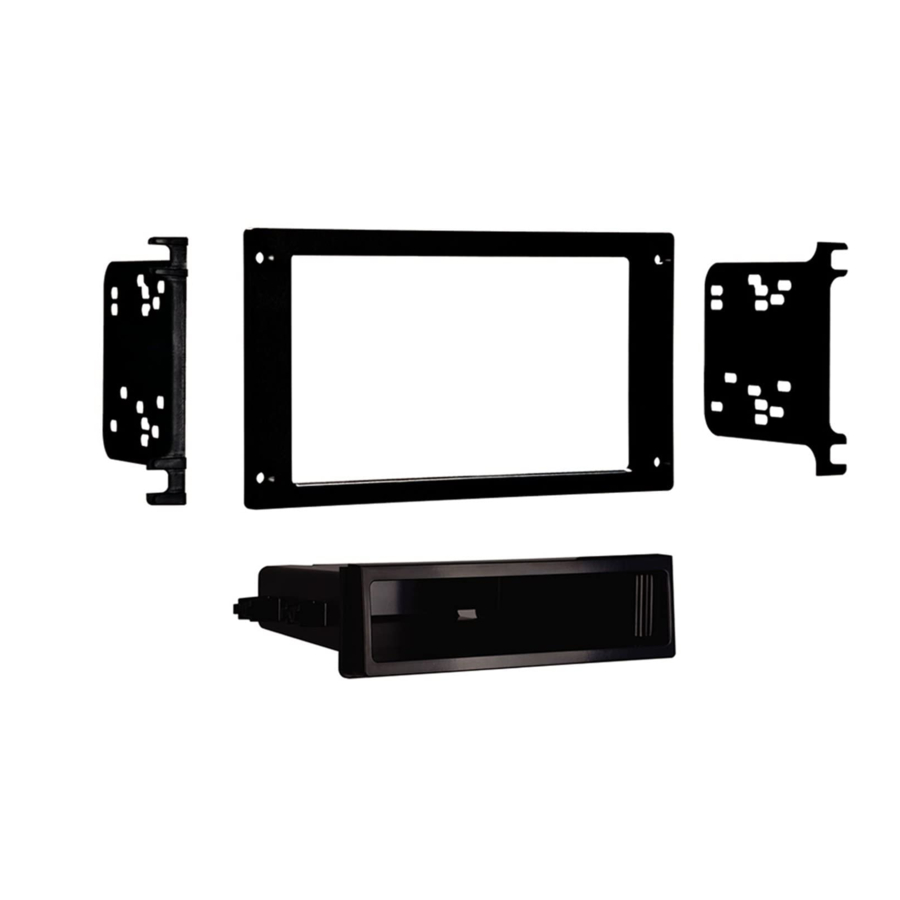

• A) Radio brackets • B Trim plate • C) (4) #8 x 1" Philips screws •D) Pocket • E) (4) #8 x 3/8" Phillips screws

The World's best kits.

Ford Mustang

• ISO DIN radio provision with pocket

MetraOnline.com

1987-1993

99-5025

I N S TA L L AT I O N I N S T R U C T I O N S

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Assembly

–ISO DIN radio provision with pocket ..................3

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: 70-1770 • 70-1768 (amplified models)

Antenna Adapter: Not required

• Phillips screwdriver

• Radio removal tools 86-5618

CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

REV. 7/11/17 INST99-5025

Table of Contents

Need help?

Do you have a question about the 99-5025 and is the answer not in the manual?

Page 1 Also, do not remove the factory radio with the key in the on position, or while the vehicle is running. The World’s best kits. MetraOnline.com ® © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION REV. 7/11/17 INST99-5025...
Page 2 DASH DISASSEMBLY 1. Using Metra’s 86-5618, pull the factory radio from the dash and disconnect the wiring. (Figure A) 2. Remove (2) 7/16” hex bolts from inside the dash cavity and remove the radio 7/16” (2) HEX BOLTS subdash bracket. (Figure B) Note: The threaded studs from under this bracket will also need to be removed for RADIO SUB-DASH BRACKET...
Page 3 KIT ASSEMBLY ISO DIN radio provision with pocket Secure the radio brackets to the radio using the screws supplied with the radio. (Figure A) Secure the pocket to the radio assembly using the (4) #8 x 3/8” Phillips screws provided. (Figure A) Locate the factory wiring harness and antenna connector in the dash and complete all necessary connections to...
Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians The World’s best kits. MetraOnline.com ® © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION REV. 7/11/17 INST99-5025...
