KIT COMPONENTS

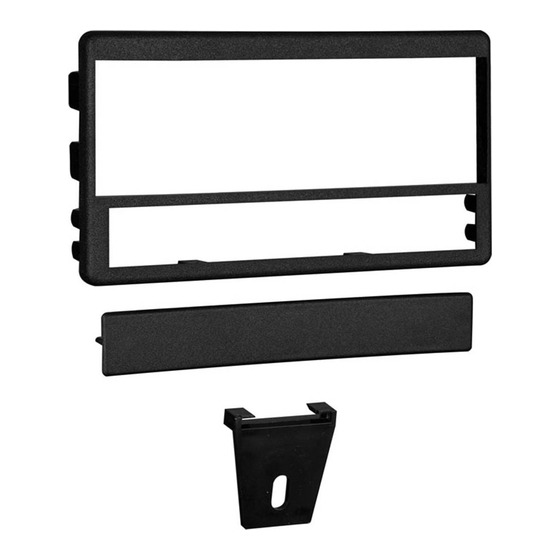

• A) Radio housing • B) Rear support bracket
A
B
The World's Best Kits.
®
Ford/Lincoln/Mazda/Mercury
KIT FEATURES
• DIN radio provision
• Rear support provision
MetraOnline.com
1995-2011
© COPYRIGHT 2017 METRA ELECTRONICS CORPORATION
99-5600
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Dash Disassembly ..................................................2
– DIN radio provision .............................................3
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: Visit www.metraonline.com
for specific interface harness
Antenna Adapter: 40-CR10
TOOLS REQUIRED
• 86-5618 or AW-FDRT radio removal keys
• Phillips screwdriver • Cutting tool
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 10/26/17 INST99-5600
Advertisement
Table of Contents
Related Manuals for Metra Electronics 99-5600
Summary of Contents for Metra Electronics 99-5600
- Page 1 Also, do not remove the factory radio with the key in the on position, or while the vehicle is running. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION REV. 10/26/17 INST99-5600...
- Page 2 DASH DISASSEMBLY Ford Econoline 1995-2008 Ford Crown Victoria 1995-2011 Ford Explorer 1995-2001 Lincoln Continental 1995-1997 Ford Ranger 1995-2011 Lincoln Mark VIII 1996-1998 Mazda B-Series Pickup 1995-2009 Lincoln Town Car 1995-2002 Mercury Mountaineer 1997-2001 Mercury Grand Marquis 1995-2010 Mercury Marauder 2003-2004 1.
- Page 3 KIT ASSEMBLY DIN radio provision 1. Remove the metal DIN sleeve from the aftermarket radio. 2. Slide the sleeve into the radio housing and secure by bending the metal locking tabs down. (Figure A) 3. Slide the radio back into the sleeve until it clicks in. (Figure A) 4.
- Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION REV. 10/26/17 INST99-5600...
- Page 5 Además, no quite el radio de fábrica con la llave en la posición o de encendido ni con el vehículo funcionando. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION REV. 10/26/17 INST99-5600...
- Page 6 DESMONTAJE DEL TABLERO Ford Econoline 1995-2008 Ford Crown Victoria 1995-2011 Ford Explorer 1995-2001 Lincoln Continental 1995-1997 Ford Ranger 1995-2011 Lincoln Mark VIII 1996-1998 Mazda B-Series Pickup 1995-2009 Lincoln Town Car 1995-2002 Mercury Mountaineer 1997-2001 Mercury Grand Marquis 1995-2010 Mercury Marauder 2003-2004 1.
- Page 7 ENSAMBLE DEL KIT Provisión de radio DIN 1. Quite la manga de metal DIN del radio de mercado secundario. 2. Deslice la manga DIN en la carcasa de radio y sujétela doblando hacia abajo las pestañas de metal. (Figura A) 3.
- Page 8 800-354-6782 para obtener más información y avance hacia un futuro mejor. Metra recomienda técnicos con certificación del Programa de Certificación en Electrónica Móvil (Mobile Electronics Certification Program, MECP). The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION REV. 10/26/17 INST99-5600...
