1. Connect analog equipment (such as loudspeakers or wireless microphone systems) to
the analog input and output. Refer to the hardware section in this guide for
information on connections and LED metering.
2. Connect a computer to the USB port
3. In the ANIUSB-MATRIX web application, open the matrix mixer to make connections
between devices.
Note: Some connections are established in the matrix mixer by default. Refer to the
matrix mixer help topic in the web application for additional information.
4. In the ANIUSB-MATRIX web application, adjust input and output levels and perform a
sound check. Refer to the help topics in the web application for additional
information.
Get More Information
Now that the basic setup is complete, you should have access to the web application and
be able to pass audio between devices. More comprehensive information is available
online and in the help section, including:
Maximizing audio quality with the built-in parametric equalizer
External control system command strings
Signal routing
System scenario diagrams
Software configuration
Networking information
Troubleshooting
Replacement parts and accessories
The complete user guide is available at
Hardware and Installation

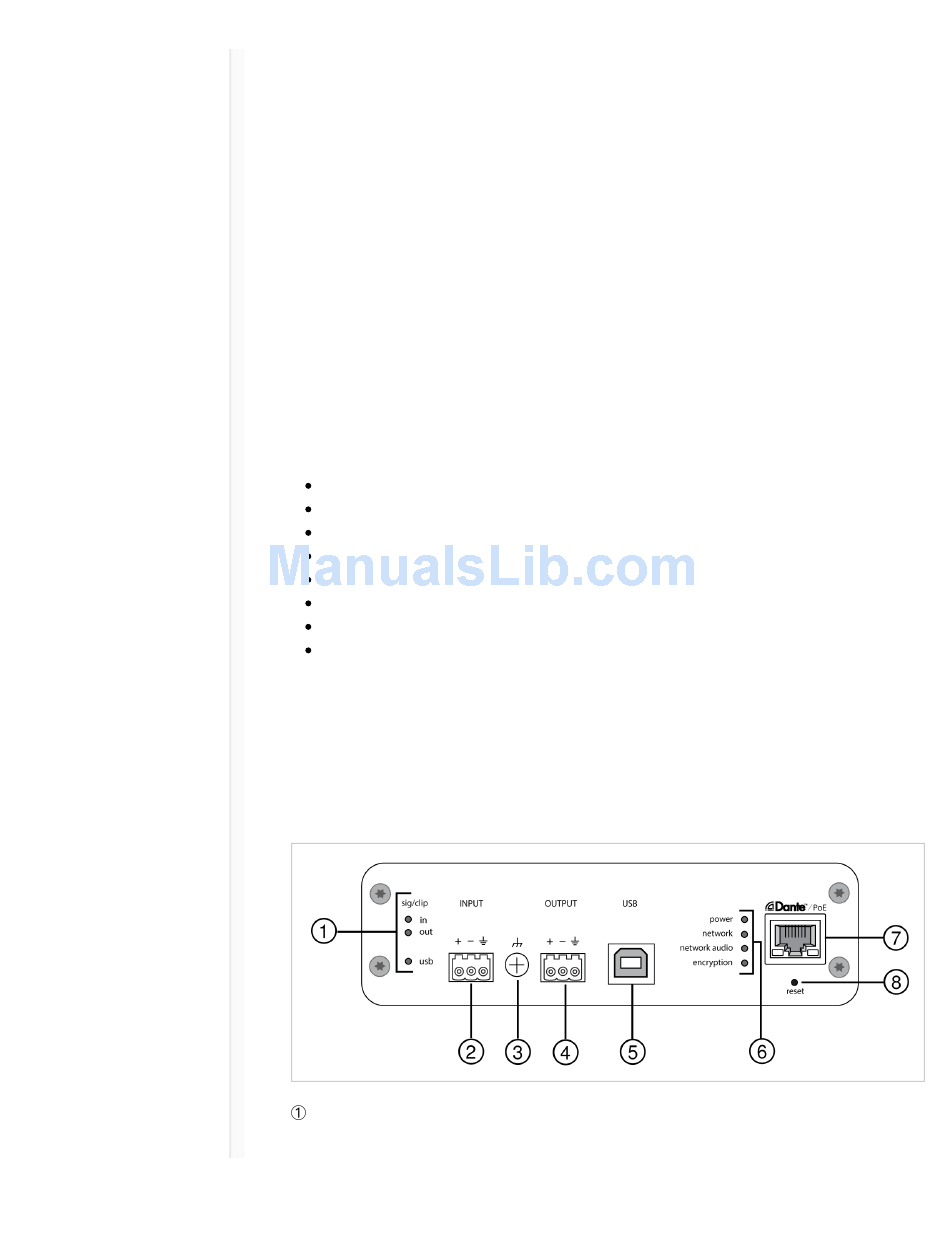

Rear Panel

Level Indicators Tri-color LEDs indicate the audio signal level for the analog
(Signal/Clip) channels and connectivity status for the USB channel. Adjust
