Installing Underneath a Table

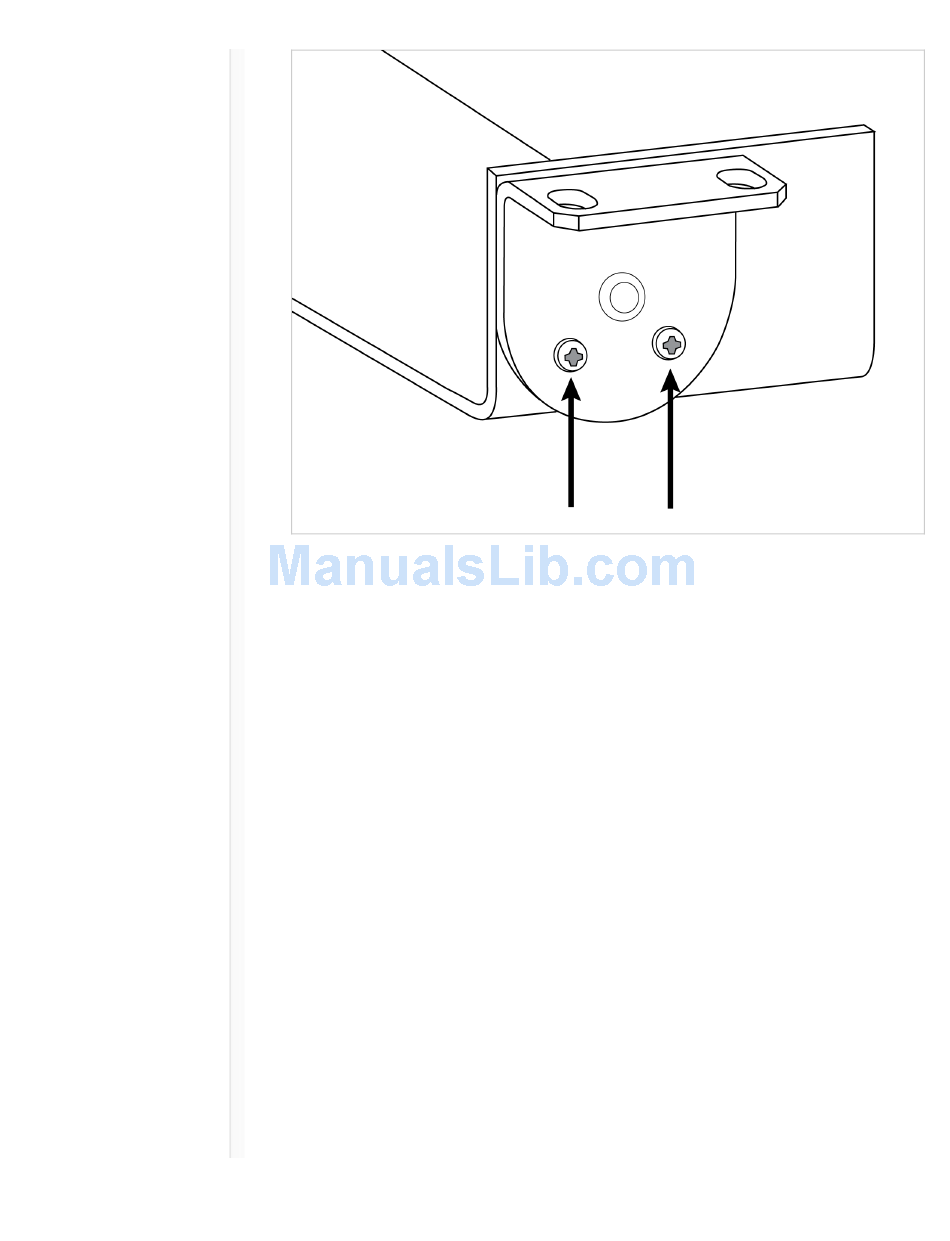

1. Hold the tray in the desired location under a table
2. Use a pencil to mark the location of the mounting holes on the table.
3. Drill 4 holes for the screws. The diameter of the holes in the tray are 7.1 mm.
4. Install the components into the tray
5. Install with 4 screws to secure the tray underneath the table
Device Identification
To identify the hardware by flashing the lights, select the Identify button in the device
options section.
Signal Flow and Connections
Connections and Signal Flow
