Chapter 1-Hardware Description
1-22

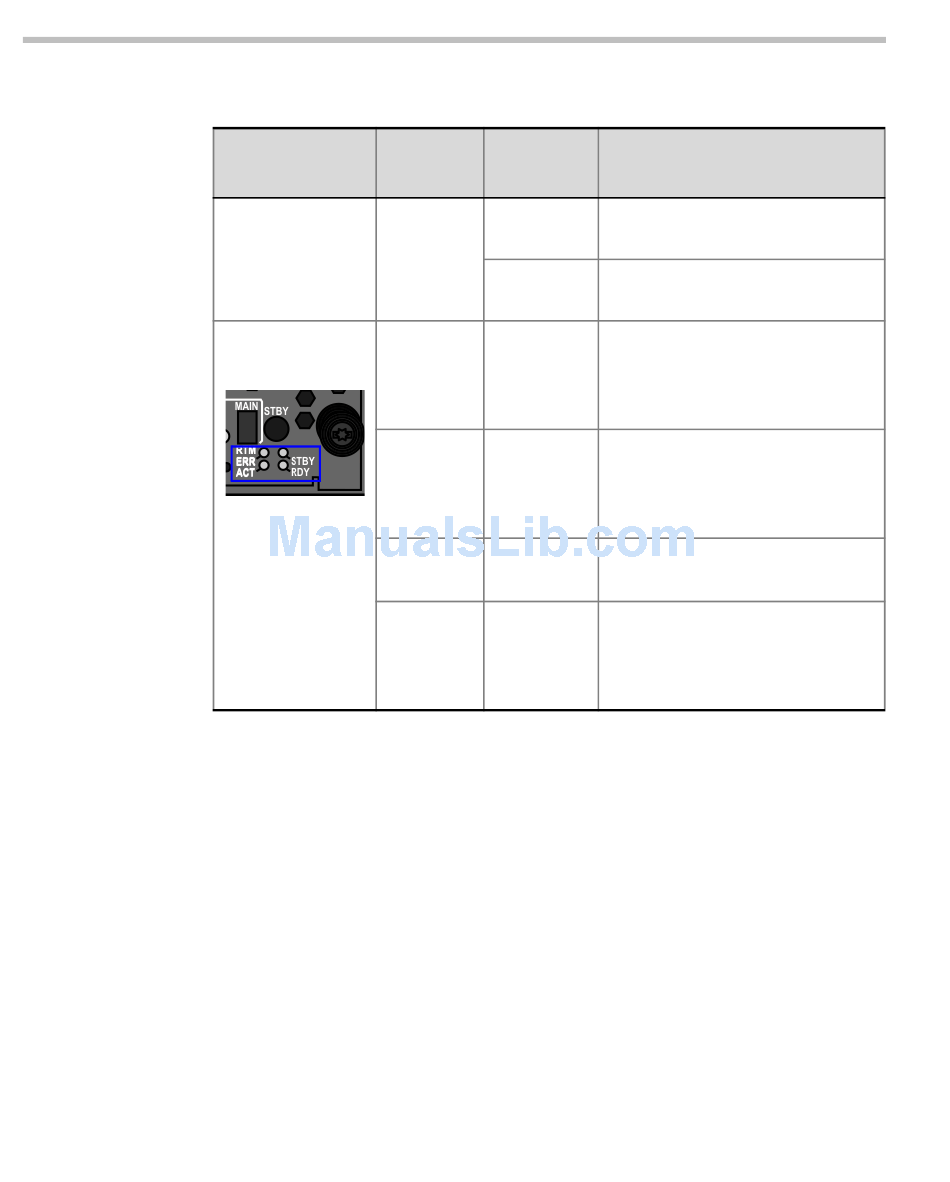

Table 1-10
RTM IP 1500 LEDs (Continued)
LED
Component
Name
Modem
LNK
Additional LEDs
ERR
(4)
ACT
STBY
RDY
LED Color
Indication
Green
ON with an active network
connection, flickers with activity.
Amber
ON when the active network is
10/100Mb, flickers with activity.
Red
ON - Major error on RTM IP
1500.
Flashes - During system
startup.
Red
ON - Packet flow to and from
the MCU chassis.
Flashes - During system
startup.
Green
ON - CPU & System are in a
standby (OFF) mode.
Green
ON - RTM IP 1500 has
successfully completed startup.
Flashes - During system
startup.
