Polycom RMX 4000 Hardware Guide

RMX 4000 Components

RMX 4000 Front Panel

Fabric Switch
Module (FSM
4000)
Logo Panel &
ESD connector
On the RMX 4000 components are located on both the front and rear of the
MCU as listed in Table 1-8, "Polycom RMX 4000 Component Description".
For more information see the descriptions of the "RMX 4000 Front Panel"
on page 1-23 and "RMX 4000 Rear Panel" on page 1-27.
The front panel provides access to the RMX 4000 main CNTL 4000
module, Fabric Switch Module (FSM 4000), MPM+/MPMx modules,
Power Supply drawers, Status LEDs, and Fan drawer. Figure 1-7 shows
the front panel of the RMX 4000 fitted with AC Power supplies.

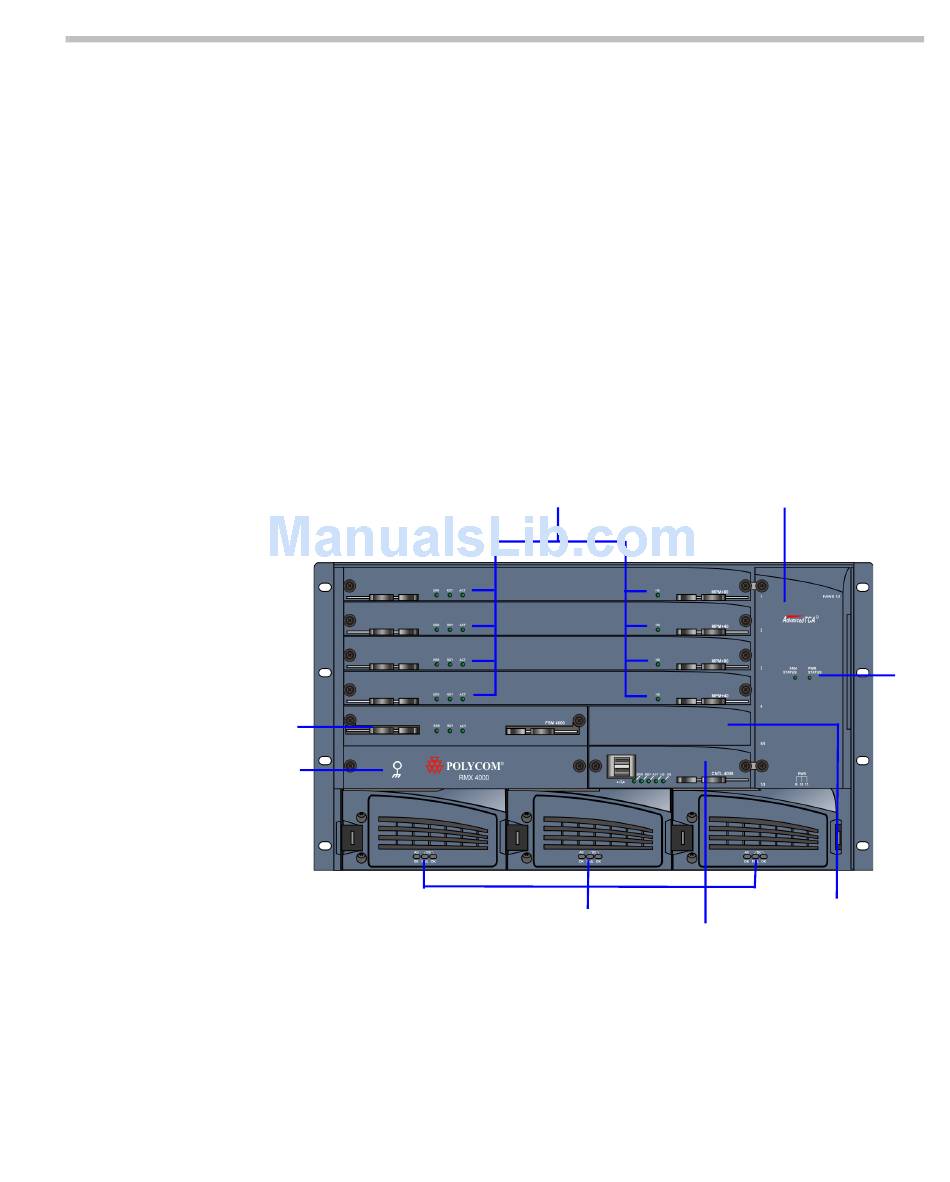

Figure 1-7 RMX 4000 AC Front View
MPM+/MPMx Cards & LEDs
Power Supply Drawers
and Status LEDs
Fan Drawer
Optional CPU
(Future)
Control Unit
(CNTL 4000) &
LEDs
Fan &
Power
Status
LEDs
1-23
