CYP CP-255ID Operation Manual

Cv, sv, vga and dvi to dvi scaler / converter
Hide thumbs Also See for CP-255ID:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
CP-255ID
CV, SV, VGA and DVI to DVI Scaler / Converter
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP-255ID and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP CP-255ID

Summary of Contents for CYP CP-255ID

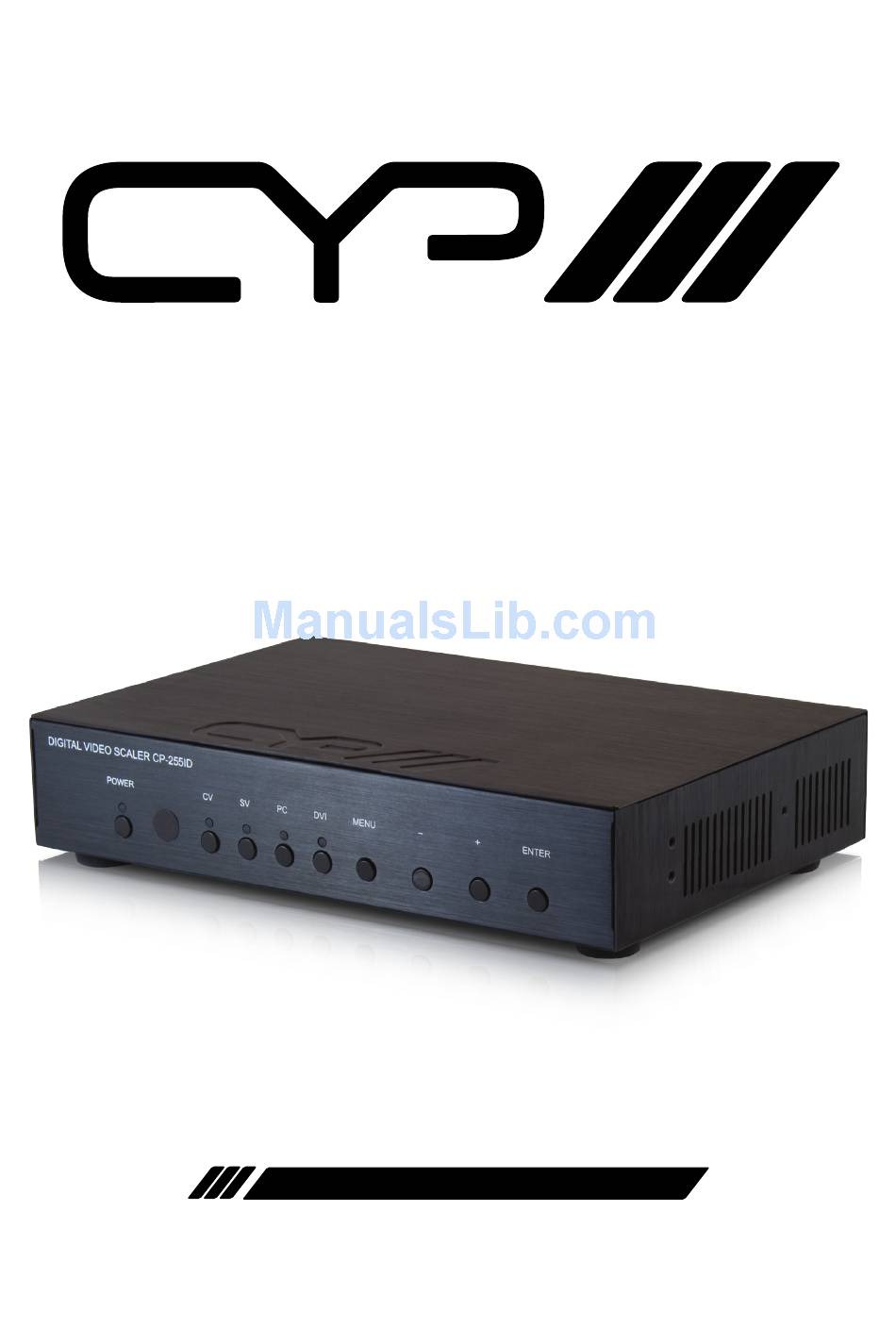

  • Page 1 CP-255ID CV, SV, VGA and DVI to DVI Scaler / Converter OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 Remote Control ........10 6.4 RS-232 Protocols ........11 6.5 RS-232 Commands ........12 6.6 OSD MENU ..........14 7.

  • Page 6: Introduction

    1. INTRODUCTION The CP-255ID is a Digital Video Scaler designed to accept Composite Video, S-Video, PC, and DVI input signals. These inputs can be switched and scaled and are outputted via DVI port. External audio input signals can be switched and sent to the L/R output port correspondingly with the video source selection.

  • Page 7: Features

    5. FEATURES Supports the conversion of multiple video and audio formats to DVI Supports synchronized output for input video and output audio signals Supports 3D de-interlacing, noise reduction and Comb filter Supports frame rate conversion Supports control via RS-232, IR Remote handset and front panel controls...

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel DIGITAL VIDEO SCALER CP-255ID 720P POWER & LED: Press this button to switch the device ON or to put the device into standby mode. When the device is connected to an active power supply the LED will illuminate and the device will switch ON automatically.

  • Page 9: Rear Panel

    6.2 Rear Panel SERVICE DC 5V RS232 DVI OUT SERVICE: Reserved for manufacturer use only. RS-232: Connect to a PC or RS-232 control system to control the device with RS232 commands (see Sectionsm 6.5 and 6.6 for details). DVI OUTPUT: Connect to a DVI display (TV/monitor) for PC signal output or to an HDMI display with an HDMI to DVI adaptor.

  • Page 10: Remote Control

    6.3 Remote Control POWER: Press this button to switch the device ON or to put the device into POWER standby mode CV/SV/PC/DVI: Press to directly select the required input. EXIT: Press this button to exit the menu or the current selection in the on- EXIT MENU screen menu.

  • Page 11: Rs-232 Protocols

    6.4 RS-232 Protocols CP-255ID Remote Control Assignment Assignment ► ◄ Baud Rate: 9600bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1...

  • Page 12: Rs-232 Commands

    6.5 RS-232 Commands Command Description Contents S SOURCE 1~4 Select input source 1=DVI 2=VIDEO 3=S-VIDEO 4=PC R SOURCE Inquire input source Reports the numerical equivilent for SOURCE setting (as above) S OUTPUT 0~25 Select output timing 0=Native 1=640×480 2=800×600 3=1024×768 4=1280×768 5=1360×768 6=1280×720...
  • Page 13 Command Description Contents R HUE Inquire hue setting S SATURATION 0~60 Saturation setting R SATURATION Inquire saturation setting S SHARPNESS 0~30 Sharpness setting R SHARPNESS Inquire sharpness setting S NR 0~3 Noise reduction setting 0=OFF / 1=LOW / 2=MIDDLE / 3=HIGH R NR Inquire noise reduction Reports the numerical equivilent for the...

  • Page 14: Osd Menu

    6.6 OSD MENU Layer layer Layer Layer DISPLAY OUTPUT Native 640×480 60 800×600 60 1024×768 60 1360×768 60 1280×720 60 1280×800 60 1280×1024 60 1440×900 60 1400×1050 60 1680×1050 60 1600×1200 60 1920×1080 60 1920×1200 60 720×480P 60 1280×720P 60 1920×1080I 60 1920×1080P 60 720×576P 50...
  • Page 15 Layer layer Layer Layer SIZE (VIDEO mode OVER SCAN only) FULL BEST FIT PAN SCAN LETTER BOX UNDER 2 UNDER 1 INFO MODE INFO PC(PC mode only) AUTO SETUP H_POSITION 0~60 (30) V_POSITION 0~60 (30) PHASE CLOCK WXGA/XGA WXGA RESET...
  • Page 16 Layer layer Layer Layer COLOUR COLOUR 0~1023 (512) 0~1023 (512) 0~1023 (512) R OFFSET 0~1023 (512) G OFFSET 0~1023 (512) B OFFSET 0~1023 (512) CONTRAST 0~60 (30) BRIGHTNESS 0~60 (30) HUE (VIDEO mode 0~60 (30) only) SATURATION (VIDEO 0~60 (30) mode only) SHARPNESS (VIDEO 0~30 (0)
  • Page 17 Layer layer Layer Layer SETUP FACTORY RESET KEY LOCK POWER SAVE INFORMATION INPUT OUTPUT REVISION Note: Items in Bold are the Factory default settings. Items in brackets are the default values for those settings...

  • Page 18: Connection Diagram

    7. CONNECTION DIAGRAM DVD Player RS-232 Equipped PC or Laptop Analogue Stereo Input RS-232 Composite S-Video Analogue Stereo Output Video Input Input SERVICE DC 5V RS232 DVI OUT AV Receiver Power Supply Output VGA & Analogue Stereo Input DVI Input TV or Monitor PC or PC or...

  • Page 19: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 165 MHz Input Ports 1×Composite, 1×S-Video, ,1×VGA,  1×DVI, 1×L/R, 1×LR, 1×USB (service only),  1×RS-232 (Control Only) Output Port 1×DVI, 1×L/R Input Resolution Support Up to WUXGA & 1080p Output Resolution Support Up to WUXGA & 1080p Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/ UL certified) Dimensions 215 mm (W)×165 mm(D)×47 mm (H) Weight 970 g Chassis Material Metal Colour Black Operating Temperature 0 ˚C ~ 40 ˚C / 32 ˚F ~ 104 ˚F Storage Temperature −20 ˚C ~ 60 ˚C / −4 ˚F ~ 140 ˚F Relative Humidity...

  • Page 20: Resolution Support

    8.2 Resolution Support Input Resolution DVI/HDMI CV/SV NTSC   VGA640×480 (@60/72/75 Hz)   SVGA800×600 (@56/60/72/75 Hz)   XGA1024×768 (@60/70/75 Hz)   XGA+1152×864 @75 Hz   1280×720 @60 Hz   1280×768 @60 Hz   1280×800 @60 Hz ...
  • Page 21 DVI/HDMI output Resolution Native 640×480@60 Hz 800×600@60 Hz 1024×768@60 Hz 1360×768@60 Hz 1280×720@60 Hz 1280×800@60 Hz 1280×1024@60 Hz 1440×900@60 Hz 1400×1050@60 Hz 1680×1050@60 Hz 1600×1200@60 Hz 1920×1080@60 Hz 1920×1200@60 Hz 480p 576p 720p (@50/60 Hz) 1080i (@50/60 Hz) 1080p (@50/60 Hz)

  • Page 22: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM COMP Component Video Composite Video Digital Visual Interface Red Green Blue S-Video Video Graphics Array UXGA Ultra Extended Graphics Array WUXGA Widescreen Ultra Extended Graphics Array...
  • Page 24 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton,  Middlesex, TW17 8BA  Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
