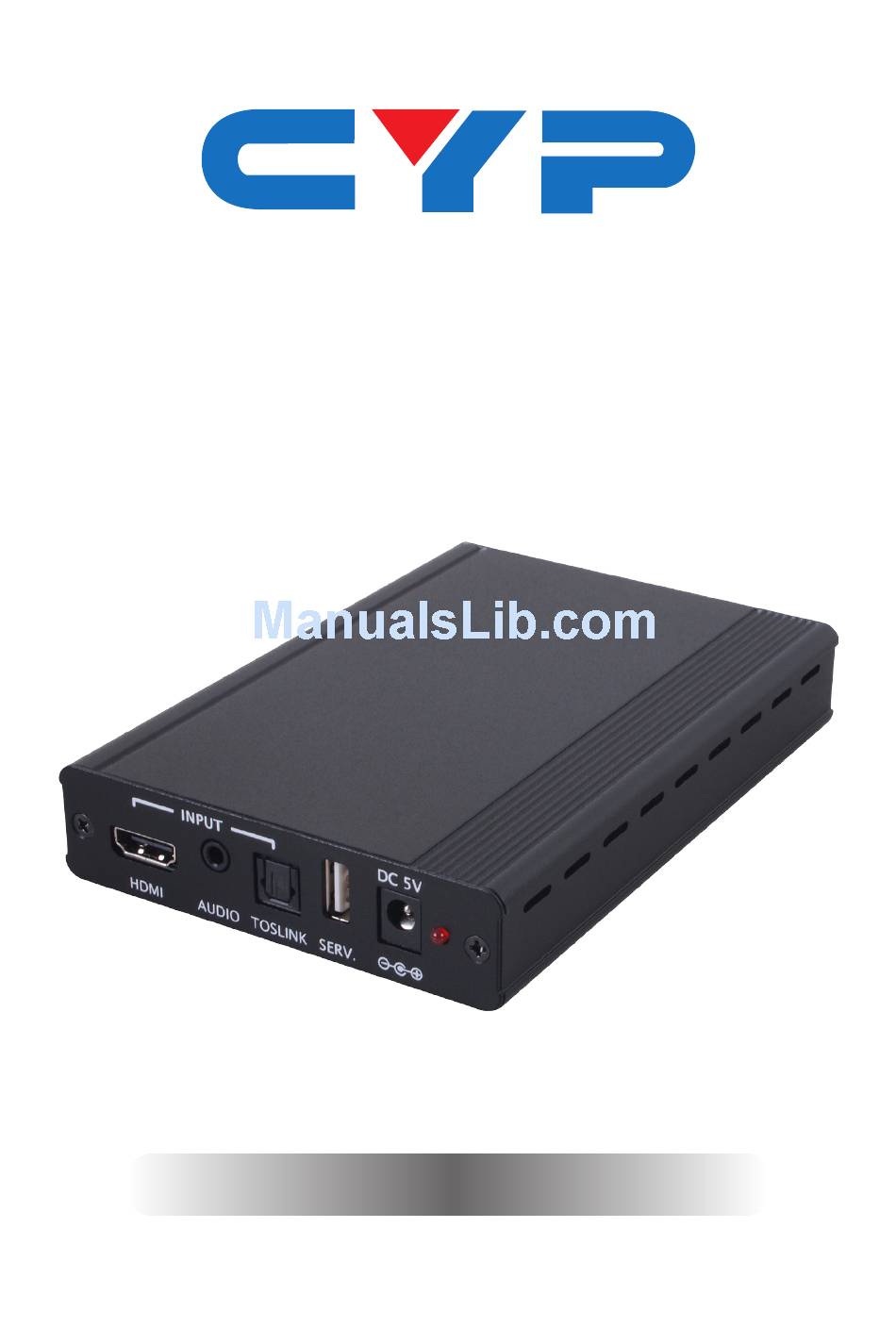

- Page 1 CP-259HN HDMI to HDMI Scaler Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 OSD Menu .........5 7. -
Page 6: Introduction
1. INTRODUCTION This is a compact yet versatile HDMI to HDMI Scaler Box. It accepts HDMI input with a separate Toslink or analog audio and scale it to HDMI output (at a number of selectable resolutions) with additional Toslink and analog audio output. This Scaler Box has a comprehensive OSD menu that allows user to select a variety of output resolutions and adjust for best picture quality. -
Page 7: Features
5. FEATURES • HDMI, HDCP and DVI compliant • Supports full range of PC resolution from VGA ~ WUXGA (RB) and HD resolution from 480i~1080p • Automatically detect the factory setting of the connected display and output the corresponding resolution and refresh rate, when the NATIVE output is selected •... -
Page 8: Operation Controls And Functions

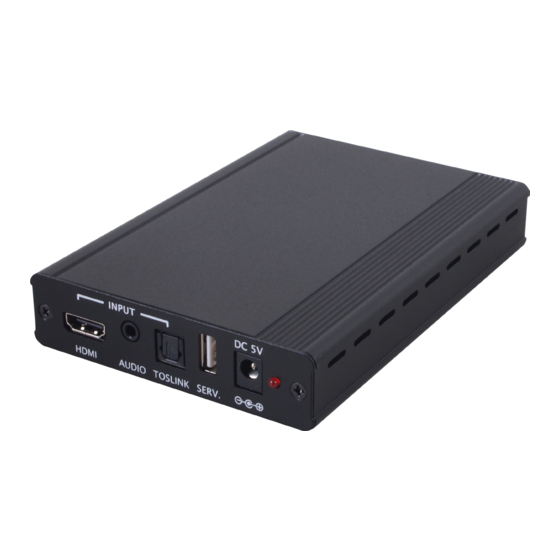

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel INPUT DC 5V HDMI AUDIO TOSLINK SERV. HDMI INPUT: Connect from source equipment such as PS3/Blu-ray player with HDMI cable. AUDIO INUPT: Connect from the audio source equipment such as PC/Laptop with 3.5mm phone jack for analog audio signal input. TOSLINK INPUT: Connect from the audio source equipment such as DVD/Blu-ray player with optical cable for digital audio signal input. -
Page 9: Rear Panel
6.2 Rear Panel OUTPUT MENU HDMI TOSLINK AUDIO HDMI OUTPUT: This slot is to connect with HDMI TV/Monitor for output image display. TOSLINK OUTPUT: Connect to an amplifier or active speaker with optical cable for audio output. AUDIO OUTPUT: Connect to an amplifier or active speaker with 3.5mm phone jack for audio output. -
Page 10: Osd Menu
6.3 OSD Menu Main Menu layer layer PICTURE SETTING CONTRAST 0~100 (50) BRIGHTNESS 0~100 (50) EXIT FINETUEN 0~100 (50) SATURATION 0~100 (50) SHARPNESS 0~100 (50) OFF/LOW/MIDDLE/HIGH (OFF) EXIT COLOR SETTING 0~100 (50) GREEN 0~100 (50) BLUE 0~100 (50) EXIT OUTPUT SETTING SIZE FULL/OVERSCAN/ UNDERSCAN/LETTER BOX/... -
Page 11: Connection Diagram
Main Menu layer layer AUDIO SETTING DELAY OFF/40mS/110mS/150Ms (OFF) INPUT EMBEDDED/ANALOG/OPTICAL (EMBEDDED) SOUND ON/MUTE (ON) EXIT OSD SETTING H-POSITION 0~100 (10) V-POSITION 0~100 (90) TIMER 0~100 (50) BACKGROUND 0~100 (50) DISPLAY INFO/ON/OFF (INFO) EXIT FACTORY RESET INFORMATION EXIT 7. CONNECTION DIAGRAM HDMI Cable INPUT DC 5V... -
Page 12: Specifications
8. SPECIFICATIONS Video Bandwidth 225MHz / 6.75Gbps Input ports 1 x HDMI, 1 x 3.5mm Phone Jack, 1 x TOSLINK (Optical), 1 x USB (service only) Output ports 1x HDMI, 1 x TOSLINK (Optical), 1 x 3.5mm Phone Jack HDMI output Resolution Up to 1080p &... -
Page 13: Supporting Timing Chart
8.1 Supporting Timing Chart INPUT OUTPUT 640x480@60/72/75/85 V@60 800x600@56/60/72/75/85 V@60 1024x768@60/70/75/85 V@60 1280x1024@60/75/85 V@60 1400x1050@60 1600x1200@60 1280x800@60 1440x900@60 1600x900@60RB 1680x1050@60 V@60 1920x1200@60RB 480I/576I 480P/576P 720P@50/60 1080I@50/60 1080P@50/60... -
Page 14: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM HDMI High-Definition Multimedia Interface WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduce blanking) - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20140729 MPM-CP259HN...
