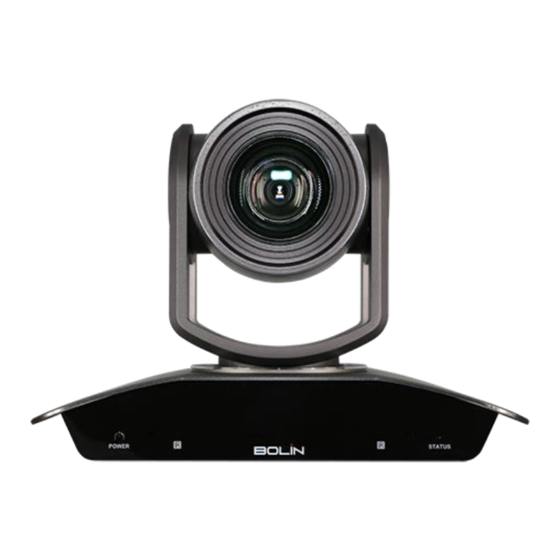

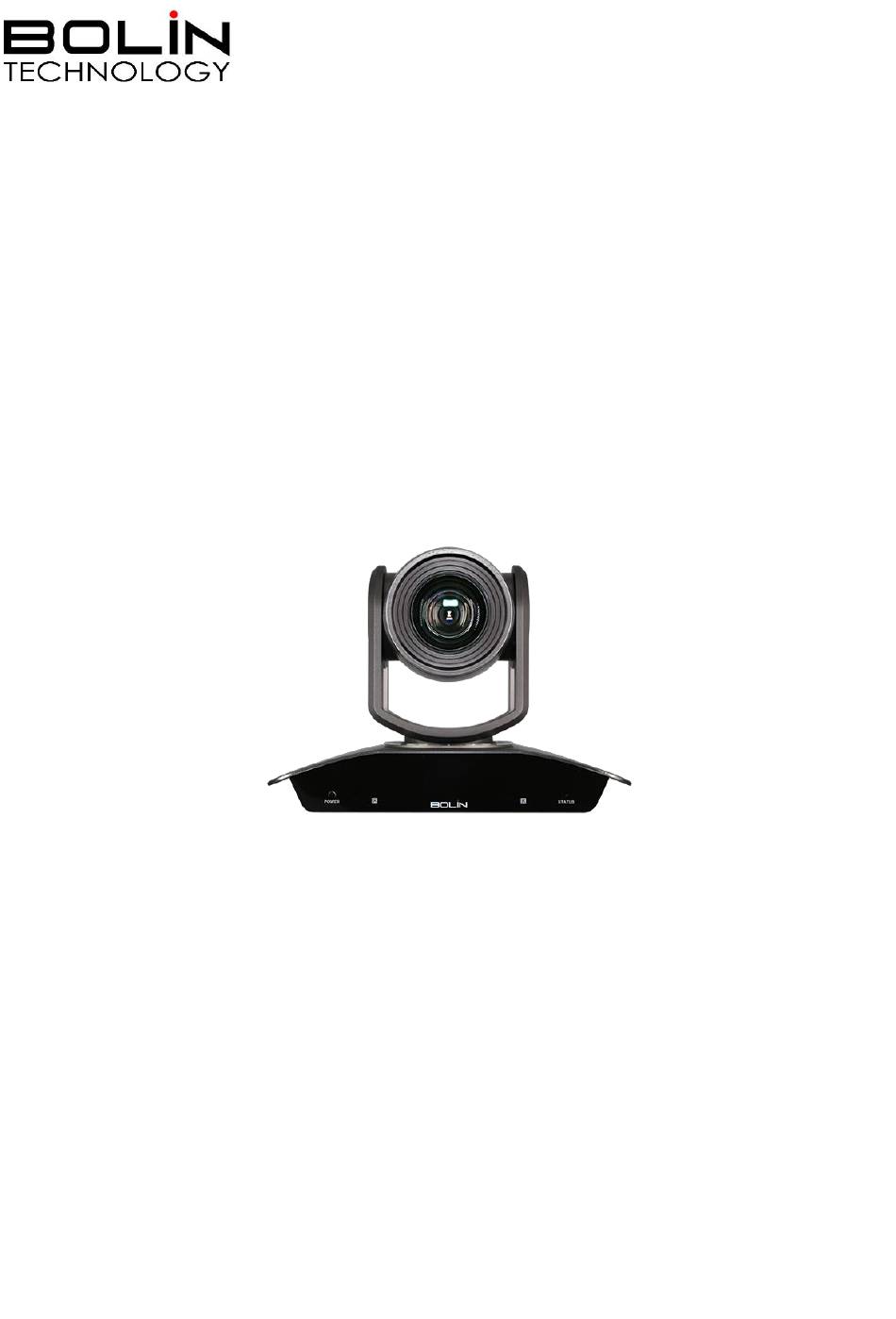

- Page 1 8 Series HD PTZ Camera USER MANUAL VERSION: VCC-8HD-M-11142018 VCC-8HD20S-2SMC VCC-8HD30S-2SMC © 2018 Bolin Technology...
-
Page 2: Table Of Contents
Contents IMPORTANT INFORMATION ..............................3 WHAT’S IN THE BOX ................................. 5 OVERVIEW ....................................6 ....................................6 AMERA ERSION ..................................... 6 ODEL UMBERS ......................................6 EATURES CAMERA DIAGRAMS ................................. 7 ......................................7 AMERA ..................................8 EMOTE ONTROLLER 3V CR2032 C : ..........................8 OIN LITHIUM BATTERY NSTALLATION ................ -
Page 3: Important Information
Before operating the unit, please read this manual thoroughly and retain it for future reference. Copyright Copyright 2015-2016 Bolin Technology all rights reserved. No part of this manual may be copied, reproduced, translated, or distributed in any form or by any means without prior consent in writing from our company. - Page 4 provided in this manual. Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Safety Information WARNING! Installation and removal of the unit and its accessories must be carried out by qualified personnel. You must read all of the Safety Instructions supplied with your equipment before installation and operation.
-
Page 5: What's In The Box
WHAT’S IN THE BOX Accessories (Optional) -
Page 6: Overview
Hardware: HV:V.0C.0bdeijkl.02.00S.07.A01 Software： SV:V0C0100S050401A02 FCB-CV7320 (20X) SV:V0C0100S090401A02 FCB-CV7520 (30X) Model Numbers This user guide is suitable for the following models: VCC-8HD20S-2SMC VCC-8HD30S-2SMC Features Resolution: 1080P,720P Zoom: Optical 20X, 30X Video Output: HDMI, 3G-SDI, CVBS ... -
Page 7: Camera Diagrams
Camera Diagrams Camera 1. 12V DC Power Port Connect the supplied DC power adaptor and cord. 2. CVBS Video Output 3. Audio Input(Not Activated) 4. Audio Output(Not Activated) 5. RS232 Control Port RJ45 to RS232 extension cable is provided. 6. RS-422 Control Port RJ45 to RS422 extension cable is provided. -
Page 8: Remote Controller
Remote Controller 1. Power 2. Camera ID (Total 3) Selector 3. Preset Position (Total 6) Calling and Setting 4. PAN-TILT Pan and Tilt direction control HOME: Home position, Resolution reset 5. L/R Direction Set Left and right orientation setting 6. -
Page 9: System Configuration
System Configuration Connection In this connection configuration, HDMI cable, SDI video cable, CVBS video cable, Control cable is required. To obtain these third party components or accessories, consult the dealer where you bought your camera. Notes Use only the AC power adaptor (JEITA type4) supplied with the unit. Do not use any other AC power adaptor. -
Page 10: Obtain Video Signal
Obtain Video Signal The camera can simultaneously have HDMI, SDI and CVBS video output. On this model, IP video and HDBaseT video are not activated. HDMI HD Video signal 1. Connect the camera to a HD monitor/TV using HDMI cable. 2. -
Page 11: Camera Control Methods And System Configurations
Camera Control Methods and System Configurations This unit has multiple ways of controlling the camera and various system configuration capabilities using optional products. This section describes ways of controlling and typical system examples with the required components and usage of each system. 1. - Page 12 RS232 Connection Set RS232 control method on Bottom Dip Switch. (See page 18). Set Baud Rate on Bottom Dip Switch to the same as Baud Rate setting on the keyboard you are using. (See page 18). Reboot the camera by turning it Off/On after the Bottom Dip Switch has been set up correctly. Does not need setting camera address in way of RS232 controlling.
- Page 13 System Configuration C RS422 (VISCA) connection Set RS422 control method on Bottom Dip Switch (See page 18). Set Baud Rate on Bottom Dip Switch to the same as Baud Rate setting on the keyboard you are using. (See page 18). Reboot the camera by turning it Off/On after the Bottom Dip Switch has been set up correctly.
- Page 14 PELCO P/D Keyboard RS485 Connection 1. Use PELCO P/D compatible keyboard. Use preset 95# on the keyboard to bring up/exit camera OSD menu. Use joystick and Button “OPEN” or “CLOSE” to navigate OSD menu. To operate keyboard, please refer to the user manual of the keyboard you are using. Note For RS-232 VISCA control, this unit does not support daisy chain connection for using multiple cameras.
-
Page 15: Bottom Dip Switch Settings
BOTTOM DIP SWITCH SETTINGS The bottom dip switch is for setting the camera configuration for following items: 1. Camera ID Address for RS-485 PELCO protocol 2. Video output / Video color space 3. RS-232 / RS-422/485 selection 4. RS-232 / RS-422/485 baud rate 5. - Page 16 4. RS-232 / RS-422 Baud Rate Setting RS-232 / RS-422 Baud Rate Setting 2400 bps 4800 bps 9600 bps(Default) 38400 bps SW2 : Factory Default Setting: OFF.OFF.ON.ON.OFF.OFF.OFF.OFF. Bit 1~4: Video resolution setting Bit 5~6: Reserve Bit 7~8: IR remote controller ID setting 1.
-
Page 17: Adjusting And Setting With Menus
Adjusting and Setting with Menus About On-Screen Menus You can change various settings, such as shooting conditions and system setup of the camera, while observing menus displayed on a connected computer screen. This section explains how to read the on-screen menus before starting menu operations. The menu parameters may vary according to the different product model numbers. -
Page 18: Exposure Menu
EXPOSURE Menu The EXPOSURE menu is used to set the items related to exposure. MODE (Exposure Mode) FULL AUTO: The exposure is adjusted automatically using the sensitivity, electronic shutter speed, and iris. BRIGHT: Adjust the brightness level (LEVEL) manually. SHUTTER PRI: Shutter Priority mode. The exposure is adjusted automatically using the sensitivity and iris. -
Page 19: Picture Menu
PICTURE Menu The PICTURE menu is used to set the items related to the picture. SHARPNESS: Picture sharpness value ranges from 0 to 15. You can enjoy emphasized edge and high-resolution images. EFFECT: (Picture Effect) It consists of the following functions: Image effect from Off, B&W. - Page 20 Note You cannot set IR-RECEIVE to OFF when you operate the menu using the infrared remote controller. To set it to OFF, use the appropriate VISCA controller. DISPLAY INFO When this item is set to ON, the message of the camera configuration appears for about 3 seconds on the screen, after the camera is powered on or rebooted.
-
Page 21: Operation Using The Infrared Remote Controller
Operation Using the Infrared Remote Controller Pan/Tilt and Zoom Operation Panning and Tilting 1. Press the POWER switch. The camera will turn on and perform the pan/tilt reset operation automatically. 2. Press the arrow button to pan or tilt the camera. While checking the picture on the screen, press the desired arrow button. -
Page 22: Operating Multiple Cameras With The Infrared Remote Controller
Zooming Button [T] - Zoom-IN and [W] - Zoom-OUT. Button [F] – FAST mode. Press once and the LED turns red to activate the Fast Zoom Speed Mode, press again to go back to normal Zoom Speed mode. Note When you perform pan/tilt operation while the camera is in the telephoto mode, the moving speed of the image on the screen may be a little jerky. -
Page 23: Storing The Camera Settings In Memory - The Presetting Feature
Storing the Camera Settings in Memory — the Presetting Feature Memory (Preset) Using the preset function, 6 sets of camera shooting conditions can be stored and recalled. 6 sets of camera shooting conditions can be stored and recalled by using remote controller. Up to 128 presets via protocol programming. This function allows you to achieve the desired status instantly, even without adjusting the following items each time. -
Page 24: Menu Configuration
Menu Configuration The menus of the camera are configured as described below. For more details, refer to the pages in parentheses. The initial settings of each item are in bold. DATA SCREEN EXPOSURE MODE CLOSE, F14, F11, F9.6, F8.0, F6.8, F5.6, F4.8, F4.0, F3.4, F2.8, IRIS PRI F2.4, F2.0, F1.6 1/1, 1/2, 1/3, 1/6, 1/12, 1/25, 1/50, 1/75, 1/100, 1/120, 1/150,... -
Page 25: Dimension
Dimension Unit: mm... -
Page 26: Specifications
Specifications... - Page 27 2082 TECHNOLOGY LLC BOLIN TECHNOLOGY...
