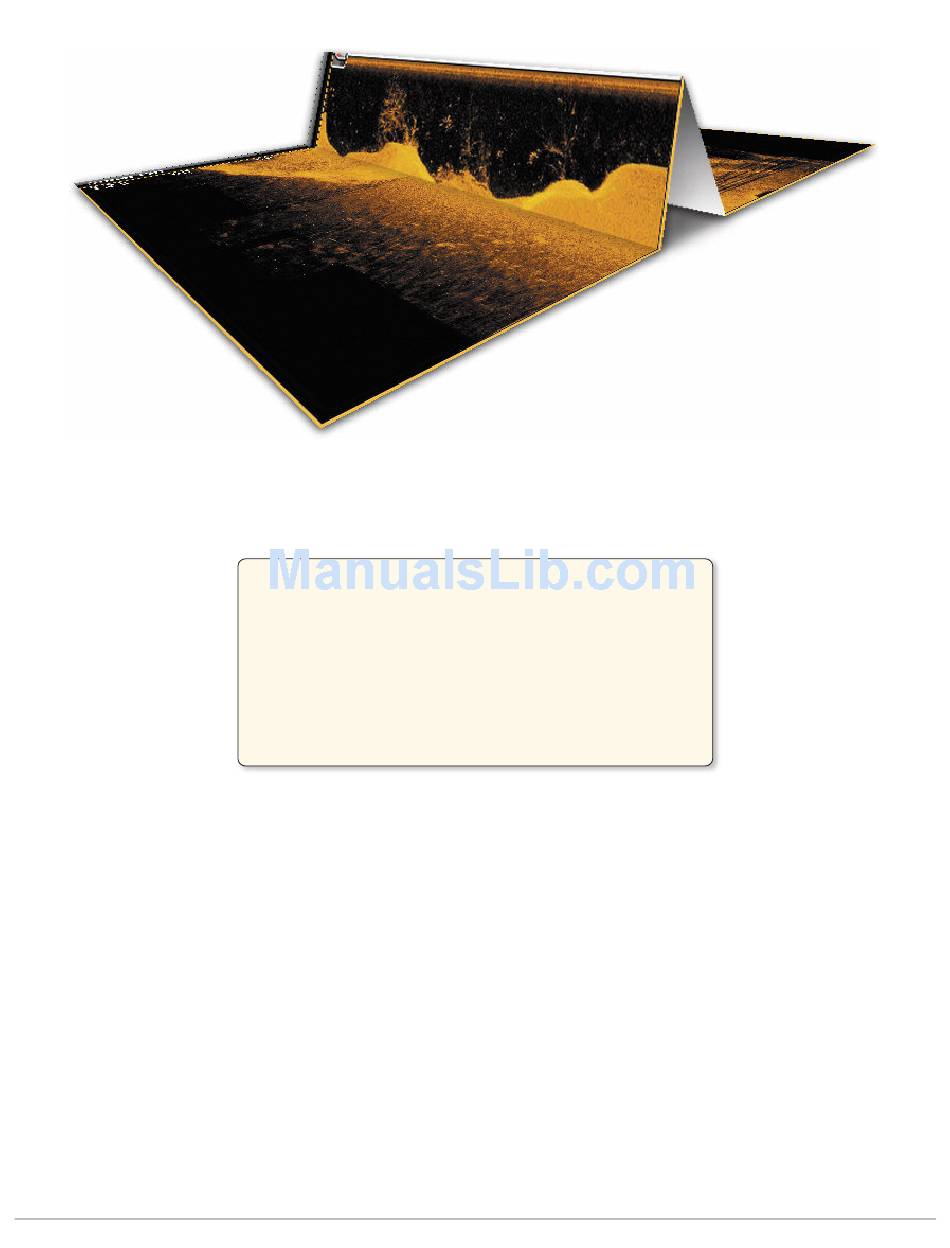

To visualize how Side Imaging works, the Side Imaging View illustration can be folded down the middle and then folded again at the
lowest point of the water column. The raised area reveals the water column with its relative depth of the water under the vessel. In
the Side Imaging View, variations in the width of the water column show variations in the distance to the bottom as the vessel
passes over.
Interpreting the Side Imaging View
For Best Side Imaging Performance
• Vessel Speed: 2 to 6 mph
• Straight line navigation
• Minimum turning time and wave turbulence
Also, see humminbird.com for tutorials and Side Imaging videos.
