Change The 2D Sonar View Overlays - Humminbird SOLIX Operation Manual

C 2D S
HANGE THE
Use the Overlays menu to display or hide information on the view. In the 2D Sonar View, you can display the following: depth lines,
depth range, a color bar for the selected palette, temperature graph, beam frequency label, and data overlays. Digital readout data
can be displayed as an overlay, and it can be displayed in the data bar. To turn on the data bar, see Views: Display a Data Bar. For
more information about data overlays, see Views.
1. With a 2D Sonar View displayed on-screen, tap Sonar (2D) in the status bar, or press the MENU key once.
2. Select Sonar Options.
3. Select Overlays.
4. Tap the menu, or use the Joystick to select an item, and add a check mark. (check mark = visible, blank = hidden).
data
overlays
frequency
label
2D Sonar
V O
ONAR IEW VERLAYS

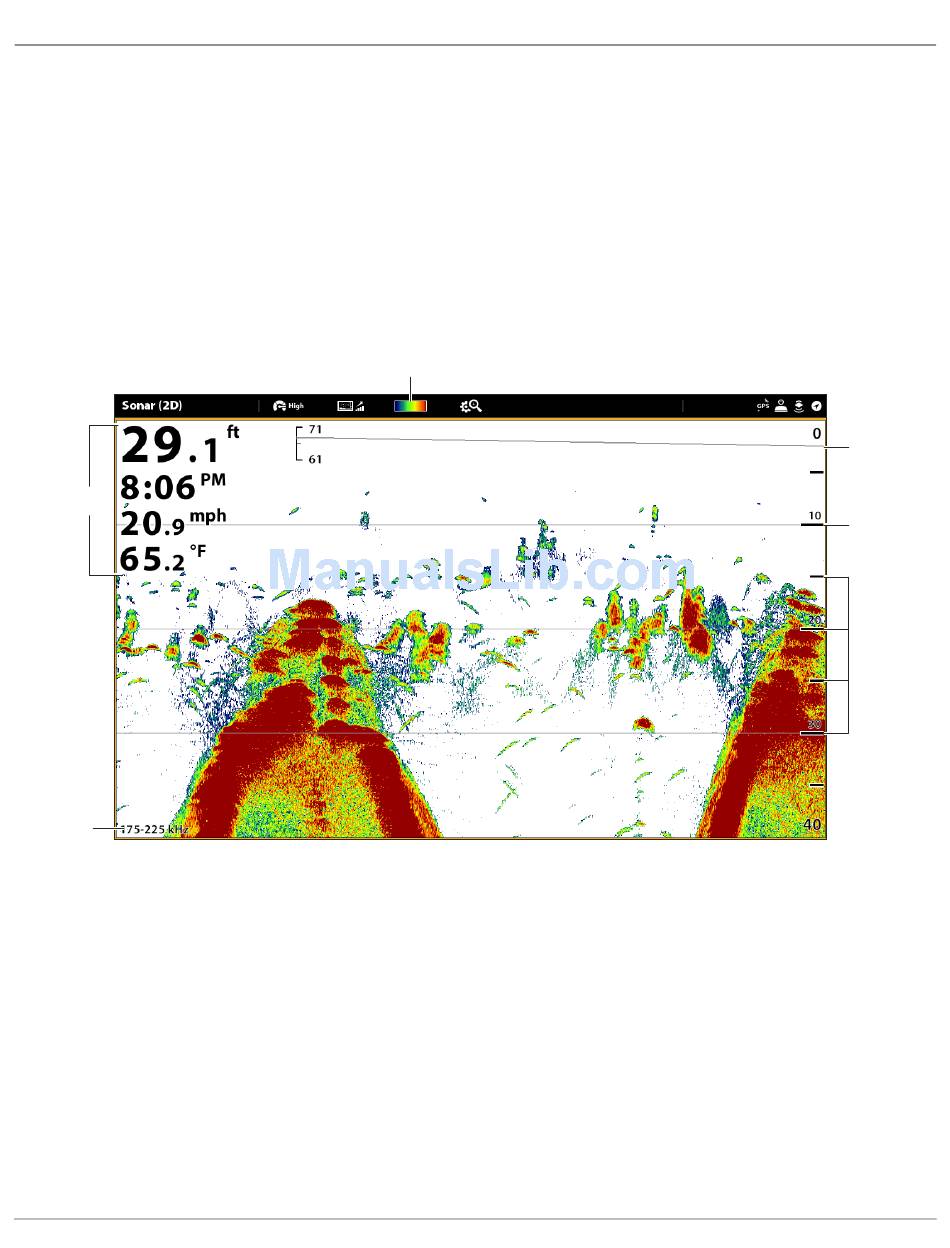

Selecting Overlays for the 2D Sonar View
color bar indicates
the selected palette
174
temperature
graph
depth line
depth range
shows
incremental
marks
between the
upper and
lower depth
range
