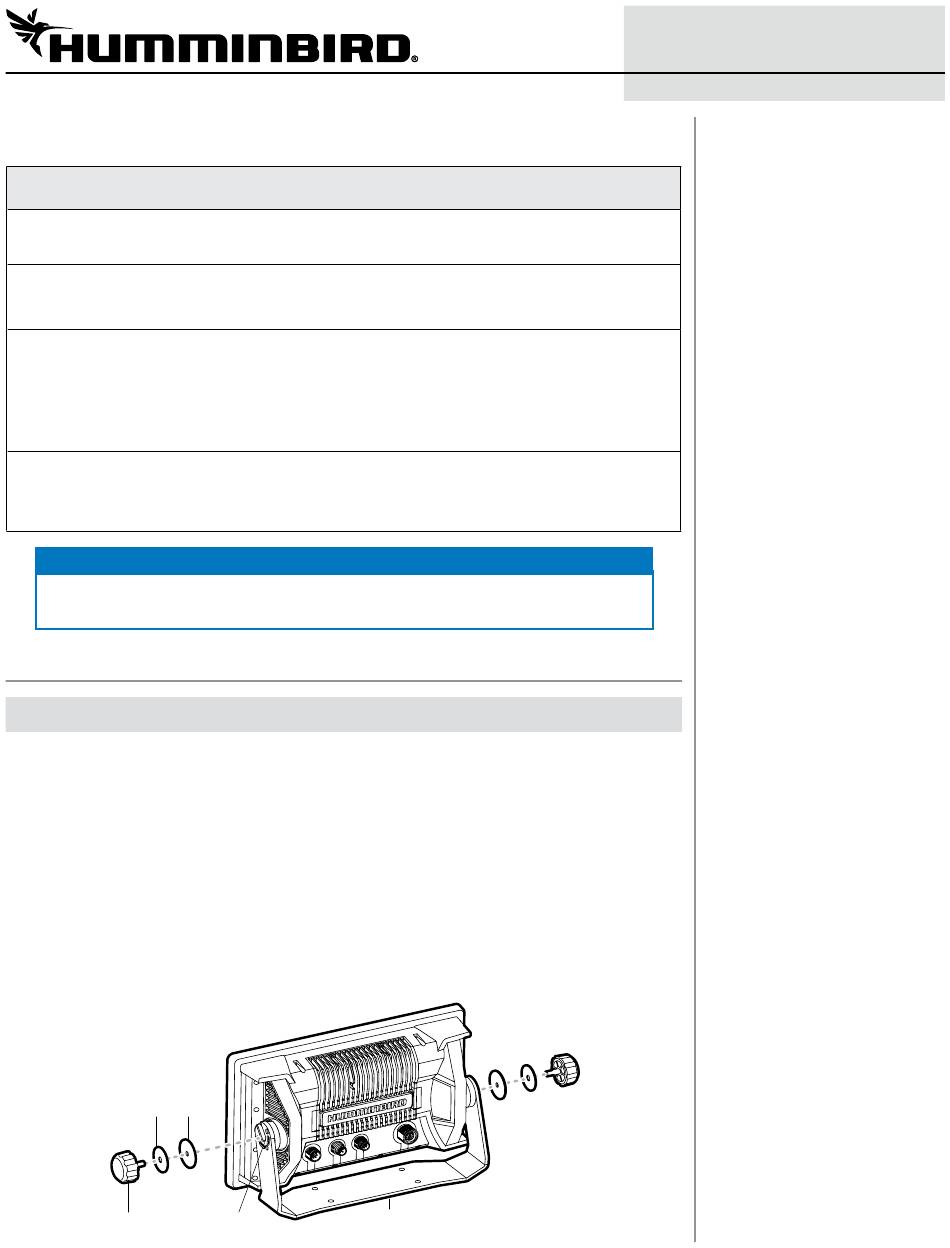

XPLORE™ SERIES CONTROL HEAD Installation Guide
Follow the instructions in this installation guide to gimbal mount the control head.
Read the instructions in this transducer guide completely to understand the mounting guidelines
before starting the installation.
Visit our Web site at humminbird.johnsonoutdoors.com for additional information and resources.
Also, visit youtube.com/humminbirdtv for informational videos.
Supplies: In addition to the hardware supplied with your control head, you will need a powered
hand drill and various drill bits, flat head screwdriver, pencil, safety glasses and dust mask, marine-
grade silicone sealant, dielectric grease (optional), extension cables (optional), Ethernet cables
(optional), and accessory cables (optional). Also, see Connect Power to determine the type of
connection, fuse size, and additional equipment you will need for the installation.
Accessories and Ethernet: Accessories and Ethernet equipment are available for purchase at
humminbird.johnsonoutdoors.com. The installation guides are available with the product, or they
can be downloaded from our Web site.
For RAM mounting installation, see the FAQ (Frequently Asked Questions) section of our
Web site at humminbirdjohnsonoutdoors.com.
Installation Overview
1
| Plan the Mounting Location
Pre-assemble the control head to plan the best mounting location.
1. Place 1 metal washer onto each gimbal knob.
2. Place 1 rubber washer onto each gimbal knob.
3. Install the gimbal knobs (with washers) into each side of the control head. Tighten the knobs
just enough so you can slide the control head into the gimbal bracket arms.
4. Install the control head into the arms of the bracket mount. Confirm the opening in the gimbal
bracket arms faces the rear of the control head. Confirm the ratchets on the bracket and
control head fit together.
metal
rubber
washer
washer
gimbal
bracket arm
knob
Installation Preparation
NOTE
Assembling the Control Head and Bracket
back of bracket
opening
(angled)
1
532986-1_A
Advertisement
Related Manuals for Humminbird XPLORE Series
Summary of Contents for Humminbird XPLORE Series
- Page 1 Read the instructions in this transducer guide completely to understand the mounting guidelines before starting the installation. Visit our Web site at humminbird.johnsonoutdoors.com for additional information and resources. Also, visit youtube.com/humminbirdtv for informational videos. Supplies: In addition to the hardware supplied with your control head, you will need a powered hand drill and various drill bits, flat head screwdriver, pencil, safety glasses and dust mask, marine-...
- Page 2 XPLORE™ SERIES CONTROL HEAD Installation Guide 532986-1_A Overhead Mount If you prefer to mount the control head overhead, flip the bracket to the top of the control head. The opening in the gimbal bracket arms must face the rear of the control head. back of bracket NOTE Overhead and/or thin panels may require additional hardware (separate purchase...
- Page 3 XPLORE™ SERIES CONTROL HEAD Installation Guide 532986-1_A 4. Place the control head back onto the gimbal bracket (see Plan the Mounting Location for details). Adjust the control head viewing angle as needed and tighten the gimbal knobs until the assembly is secured. Hand-tighten only! Overhead Mount NOTE Overhead and/or thin panels may require additional hardware (separate purchase...
- Page 4 NOTE The installation guides for Ethernet and optional-purchase accessories are available with your product, and they can be downloaded from our Web site at humminbird. johnsonoutdoors.com. 4. Route all cables to the control head. Your boat may have a pre-existing wiring channel or conduit that you can follow.
- Page 5 XPLORE™ SERIES CONTROL HEAD Installation Guide 532986-1_A 5. Pass the cables through the cable hole. Routing the Cables Behind the Bracket screw nut 6. Connect each cable to the appropriate ports on the control head. The ports are labeled, and the connectors are keyed to prevent incorrect installation.
-
Page 6: Contact Humminbird
Contact Humminbird This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance Contact Humminbird Technical Support through our Help Center at with the instructions, may cause harmful interference to https://humminbird-help.johnsonoutdoors.com/hc/en-us or in radio communications. -
Page 7: Préparation De L'installation
Lisez complètement les instructions de ce guide pour comprendre les directives avant de commencer l'installation. Visitez notre site Web à humminbird.johnsonoutdoors.com pour plus d'informations et de ressources. Visitez également youtube.com/humminbirdtv pour des vidéos d'information. Matériel : En plus du matériel fourni avec la tête de commande, vous avez besoin d’un perceuse électrique et de forets, ainsi que de divers outils à... - Page 8 TÊTE DE COMMANDE DE LA SÉRIE XPLORE Guide d'Installation 532986-1_A Si vous préférez monter le tête de commande en hauteur, faites pivoter le support au-dessus Installation en hauteur de la tête. L'ouverture dans les bras de support doit faire face à l'arrière de la tête de commande. arrière du support REMARQUE Une installation sur une surface en hauteur ou très mince peut nécessiter des accessoires...
- Page 9 TÊTE DE COMMANDE DE LA SÉRIE XPLORE Guide d'Installation 532986-1_A Installation du support à cardan ouverture sur bras du support rondelle(s) trou(s) du retour support (en angle) 4. Placez la tête de commande sur le support à cardan (pour plus de détails, voir Préparation de l'emplacement de montage).
- Page 10 Assurez-vous que le câble d’alimentation n’est pas branché à la tête de commande au début de cette procédure. Humminbird ne garantit pas le produit contre les surtensions et les surintensités. La tête de commande doit disposer d’une protection suffisante; installer de façon adéquate de la Porte-fusible en série...
- Page 11 Les guides d'installation Ethernet et des accessoires en option sont fournis avec le produit et peuvent être téléchargés depuis notre site Web humminbird.johnsonoutdoors.com. 4. Acheminez tous les câbles vers la tête de commande. Il se peut que votre bateau soit déjà muni d’une canalisation ou conduite de câblage que vous pouvez utiliser pour acheminer les câbles.
- Page 12 Pour des informations relatives au fonctionnement, consultez le guide de démarrage rapide qui accompagne votre tête de commande et le guide d'utilisation XPLORE (disponible au téléchargement sur humminbird.johnsonoutdoors.com).
- Page 13 Pour communiquer avec Humminbird DÉCLARATION DE CONFORMITÉ AVEC L’ENVIRONNEMENT : Johnson Outdoors Marine Electronics, Inc. entend agir en de façon responsable, et Contactez le support technique Humminbird via notre centre d’aide respecter la réglementation environnementales connues et applicables et 532744-1_A à...
