coastmaster
introduction
Humminbird® CoastMaster® chart cards are compatible with HELIX®
G3/G3N and G4/G4N control heads with chartplotting capabilities and
all APEX™ and SOLIX® control heads. To review the latest compatibility
information and to download a detailed CoastMaster Chart Card user
guide, visit our Web site at humminbird.johnsonoutdoors.com.
This quick start guide and the CoastMaster user guide contain
instructions that apply to your Humminbird control head(s) as follows:
• APEX Series
• SOLIX Series
• HELIX Series
Humminbird CoastMaster Chart Cards
Your control head is compatible with either an SD card or a microSD
card. It is important to note the following guidelines:
WARNING! Do NOT delete or change the contents of your chart card.
Changing the card will permanently damage it.

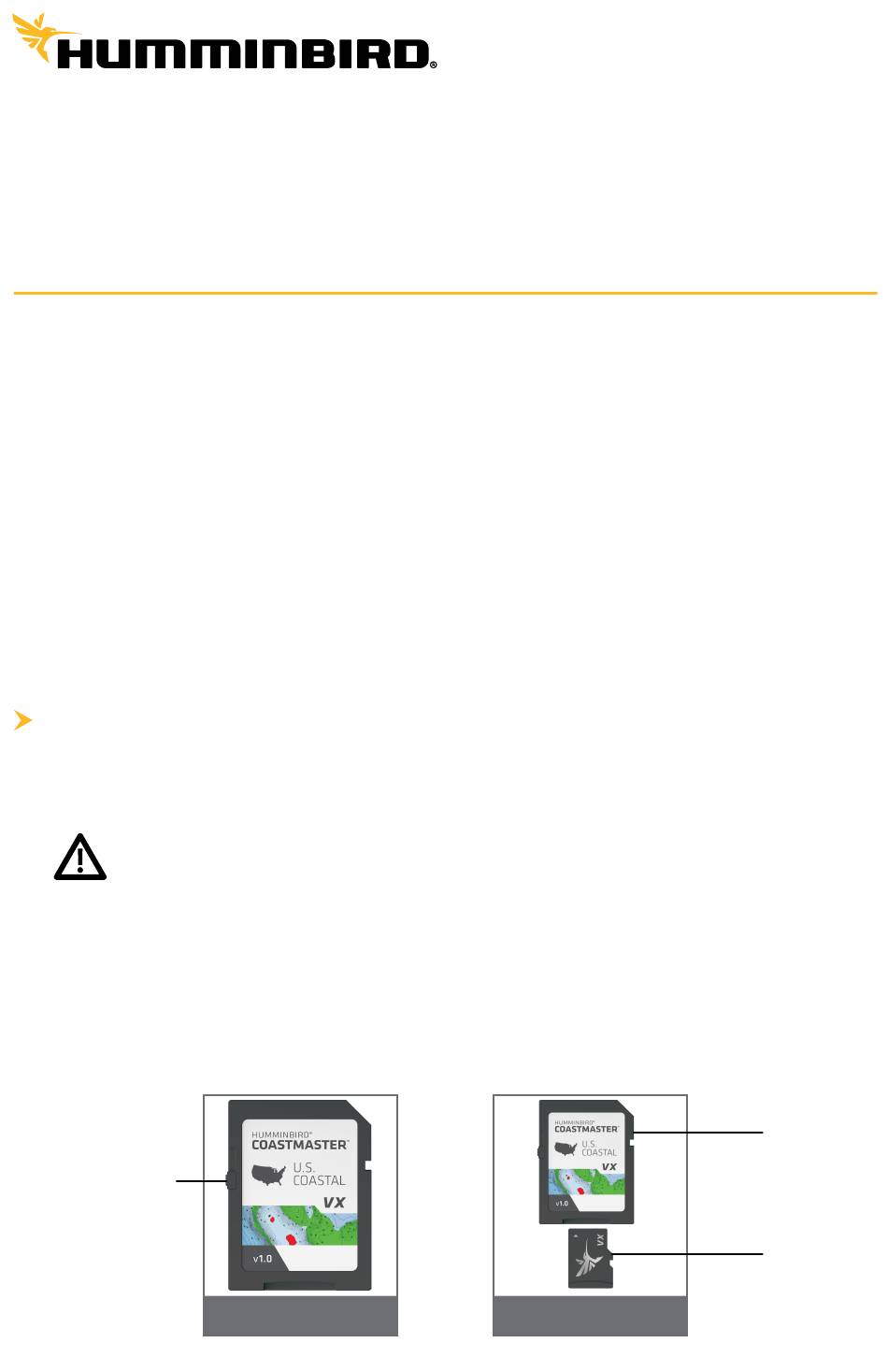

• Confirm the chart card is locked (see the illustrations below).
• Do not force the card into the slot. The card should click easily into place.
• Do not leave the card slot cover open. Close the slot cover to prevent
water damage to the unit.
switch in
locked
position
SD card
quick start guide
microSD card
1
®
532709-4EN_A
microSD
card
adapter
microSD
card
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Humminbird CoastMaster APEX Series
Summary of Contents for Humminbird CoastMaster APEX Series
- Page 1 CoastMaster Chart Card user guide, visit our Web site at humminbird.johnsonoutdoors.com. This quick start guide and the CoastMaster user guide contain instructions that apply to your Humminbird control head(s) as follows: • APEX Series • SOLIX Series •...
-
Page 2: Getting Started
3.920 and later APEX/SOLIX: HELIX: 2.380 and later To download the latest software, go to our Web site at humminbird. johnsonoutdoors.com and slick Support > Software updates. For complete details about the software update process, see your control head manual. -
Page 3: Using The Status Bar
chart view (apex/solix) chart view (helix) Using the Status Bar (APEX/SOLIX Only) The status bar is located at the top of the screen. It changes to match the on-screen view. You can tap the icons in the status bar to open and close a menu or make a selection. - Page 4 Set Depth Highlights Highlight deep and shallow waters in Chart View and Chart Combo Views using the following CoastMaster features. Highlight colors are customizable. • Depth Highlights allow you to select up to four depth ranges to be highlighted on the chart. •...
- Page 5 coastmaster in chart view APEX/SOLIX depth palette colors depth highlight 1 contour drying lines areas shallow water highlight spot chart object depth label chart object sounding (depth of (wreck) (landmark) label contour) HELIX shallow water depth highlight highlight 1 chart info labels (fish haven) (sand)
- Page 6 tips for using the map Move Across the Chart APEX/SOLIX HELIX Press any arrow on the Move the Joystick. 4-Way Cursor Control key. See More on the Chart Zoom in (+) and Zoom out (-) to see more of the chart display (contour lines, depth colors, etc.).
- Page 7 advanced coastmaster features CoastMaster Premium: Change Layers If you have a CoastMaster Premium chart card, you can display layers that show aerial imagery, bottom hardness or shaded relief in Chart View and Chart Combo Views. The transparency of these layers is customizeable. •...
- Page 8 Change Contour Source Customize the contour sources displayed on the chart with Fishing and Nautical Bathymetry. If you have a CoastMaster Premium chart card, you can also display Auxiliary Bathymetry (available in select regions only). Chart X-Press Menu > Chart Options > Depths/Contours > APEX/SOLIX: Depth/Contour Source HELIX:...
-
Page 9: Troubleshooting
APEX/SOLIX: Chart X-Press Menu > Set Simulation Position HELIX: Main Menu > Chart Menu Tab > Set Simulation Position Can I view the Humminbird CoastMaster chart card on my computer? No, the Humminbird CoastMaster chart card is not compatible with your computer. -
Page 10: Warranty
Johnson Outdoors for more information. WARNING: Never format a CoastMaster SD card. Formatting the card will permanently erase the map data. Never use a Humminbird SD card to store or transfer data as this may damage the card. - Page 11 WARNING! The electronic chart in your Humminbird unit is an aid to navigation designed to facilitate the use of authorized government charts, not to replace them. Only official government charts and notices to mariners contain all of the current information needed for the safety of navigation, and the captain is responsible for their prudent use.
- Page 12 notes...
- Page 13 notes...
-
Page 14: Contact Humminbird
Contact Humminbird Technical Support through our Help Center at https://humminbird-help.johnsonoutdoors.com/hc/en-us or by writing to the address below: Humminbird Service Department 678 Humminbird Lane Eufaula AL 36027 USA Social Media Resources: Facebook.com/HumminbirdElectronics Twitter.com (@humminbirdfish) Instagram.com/humminbirdfishing YouTube.com/humminbirdtv...
