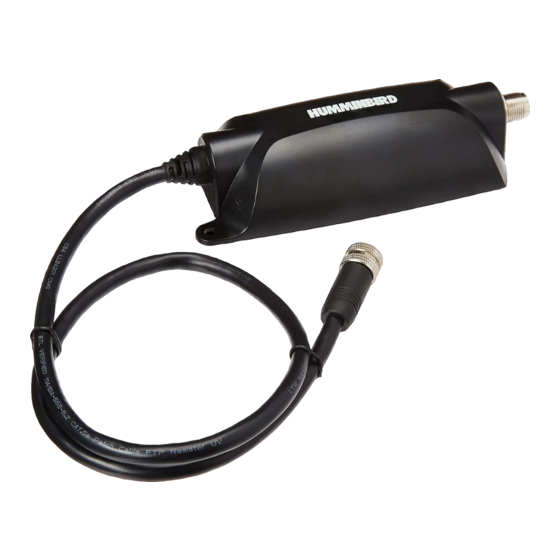

Humminbird NMEA 2000 Installation And Operation Manual
  1. Manuals
  2. Brands
  3. Humminbird Manuals
  4. Control Unit
  5. NMEA 2000 module
  6. Installation and operation manual

Humminbird NMEA 2000 Installation And Operation Manual

Hide thumbs Also See for NMEA 2000:

Advertisement

Quick Links

Download this manual
Humminbird
NMEA 2000
Installation and Operation

Advertisement

loading
Need help?

Need help?

Do you have a question about the NMEA 2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Humminbird NMEA 2000

Summary of Contents for Humminbird NMEA 2000

  • Page 1 Humminbird NMEA 2000 Installation and Operation...
  • Page 2 NMEA 2000 - References Install Guide PN 531951-1A Manual PN 531989-1A contains contains 4 pages of installation 40 pages of installation and setup and connection information and is guidance and is included with the included with the Ethernet Switch Ethernet to NMEA2000 Gateway...
  • Page 3 NMEA 2000 - Installation...
  • Page 4 NMEA 2000 - Installation...
  • Page 5 NMEA 2000 - Installation...
  • Page 6 NMEA 2000 - Installation...
  • Page 7 NMEA 2000 - Installation...
  • Page 8 NMEA 2000 - Installation...
  • Page 9 NMEA 2000 – PGN Support PGN is the Parameter Group Number which defines the type of data being transmitted or received...
  • Page 10 NMEA 2000 - Sources • NMEA2K Gateway is under the Accessory • Select sources for each data type needed • Setup and enter any offsets for depth, temperature, speed or heading • Setup and enter units of measurement...
  • Page 11 NMEA 2000 - Sources...
  • Page 12 NMEA 2000 – GPS Selection...
  • Page 13 NMEA 2000 – GPS Selection...
  • Page 14 NMEA 2000 – Alarms...
  • Page 15 NMEA 2000 – X-Press View...
  • Page 16 NMEA 2000 - Views...
  • Page 17 NMEA 2000 - Views...
  • Page 18 NMEA 2000 - Views...
  • Page 19 NMEA 2000 - Views...
  • Page 20 NMEA 2000 - Readouts...
  • Page 21 NMEA 2000 - Readouts...
  • Page 22 NMEA 2000 - Readouts...
  • Page 23 Humminbird RADAR Installation and Operational Overview...
  • Page 24 RADAR Installation – AS 12RD2KW...
  • Page 25 RADAR Installation – AS 21RD4KW...
  • Page 26 RADAR Installation...
  • Page 27 RADAR Installation...
  • Page 28 RADAR Installation...
  • Page 29 RADAR Installation...

  • Page 30: Radar Menu

    RADAR Menu • Located under the Main Menu, Accessories Tab • Used to access the Radar Installation menu and other less frequently adjusted radar settings.
  • Page 31 RADAR Menu – Transmission Time • There are two types of transmissions – continuous and timed. • A Timed Transmission is useful for conserving power. This is often used in sailing applications or when not running engines and helps extend battery run time. •...
  • Page 32 Radar Menu - Installation • Used for initial setup/installation of RADAR. • It should not need to be adjusted or changed by user after the installation has been completed.
  • Page 33 Radar Menu – Installation • Used to Auto Tune the RADAR. • Should not need to be used unless user perceives an obvious problem or when major service has been performed on the radar. • If used, Auto Tune needs to be accomplished in an open relatively unobstructed area.
  • Page 34 Radar Menu – Installation • Adjusts the return so that long straight lines appear straight on the display. • Too much trigger delay pulls objects into the center of the display. • Too little trigger delay pushes objects away from the center of the display.
  • Page 35 Radar Menu – Installation; Trigger Delay Too High...
  • Page 36 Radar Menu – Installation; Trigger Delay Too Low...
  • Page 37 Radar Menu – Installation; Trigger Delay Correct...
  • Page 38 Radar Menu – Installation • Used to filter out the Main Bang return in the immediate vicinity of the RADAR/boat. • Too much MBS will filter out close objects like boats and buoys. • Too little MBS leaves noise on the return that can hide close objects like boats and buoys.
  • Page 39 Radar Menu – Installation; MBS Too Low...
  • Page 40 Radar Menu – Installation; MBS Almost…right...
  • Page 41 Radar Menu – Installation; MBS Correct...
  • Page 42 Radar Menu – Installation • Used to prevent the RADAR from transmitting in a certain direction. • Useful if the RADAR is installed on a fly bridge behind the user head or in front of their feet. • After setup RADAR shows where the blanked sector is for safety reasons.
  • Page 43 Radar Menu – Sector Blanking Active...
  • Page 44 Radar Menu – Installation • Used to calibrate the heading of the RADAR with the keel of the boat. • Each installation will be slightly different so heading lines will have to be adjusted on the water • Using a finite target (usually a buoy or a small island/building) adjust heading line until RADAR...
  • Page 45 Radar Menu – Installation; Heading Line: Incorrect...
  • Page 46 Radar Menu – Installation; Heading Line Corrected...
  • Page 47 RADAR Menu • Filters noise from RADARs on other boats • There are three palettes (Red, Green, Yellow) • Turns Range Rings On/Off • Turns Bearing Scale On/Off...
  • Page 48 RADAR Menu – Range Rings / Bearing Scale ON...
  • Page 49 RADAR Menu – Range Rings / Bearing Scale OFF...
  • Page 50 RADAR Views – Radar only...
  • Page 51 RADAR Views – Split Chart and Radar...
  • Page 52 RADAR – Marking Targets on Chart with RADAR...
  • Page 53 X-Press Menu • Accessed from the RADAR views. • Press MENU key once to open. • Displays settings needed for general RADAR use.
  • Page 54 X-Press Menu - Transmission • Used to start a RADAR continuous transmission. • Used to stop a RADAR transmission. • Used to start a timed RADAR transmission...
  • Page 55 X-Press Menu - Gain • Adjusts the strength of the displayed RADAR return. • Works just like Sensitivity on Sonar views. • Adjustable from 0 to 255 • User should adjust Gain for each range as the gain settings are individually saved for each individual range.
  • Page 56 X-Press Menu – Gain: Too Low...
  • Page 57 X-Press Menu – Gain: Too High...
  • Page 58 X-Press Menu – Gain: Correct...
  • Page 59 X-Press Menu - STC • STC – Slow Time Constant • Used to filter out noise in the radar return due to waves. • Adjustable from 0 to 255 • User should adjust STC setting for each RADAR range setting depending on water conditions.
  • Page 60 X-Press Menu – STC: Too High...
  • Page 61 X-Press Menu – STC: Too Low...
  • Page 62 X-Press Menu – STC: Correct...
  • Page 63 X-Press Menu - FTC • FTC – Fast Time Constant • Used to filter out noise in the RADAR return due to rain or snow. • Adjustable from 0 to 8 • FTC is common between all RADAR ranges. • User should adjust FTC depending on weather conditions.
  • Page 64 X-Press Menu – FTC: Too High...
  • Page 65 X-Press Menu – FTC: Correct...
  • Page 66 X-Press Menu - Range • Can also be adjusted using ZOOM keys. • AS 12RD2KW is adjustable from 0.125nm to 24 nm. • AS 21RD4KW is adjustable from 0.125nm to 36 nm.
  • Page 67 X-Press Menu - EBL/VRM • EBL – Electronic Bearing Line – Measures the relative bearing from the boat’s heading to a target • VRM – Variable Range Marker – Measures distance from the boat to a target • User can create up to two independent EBL’s and VRM’s...
  • Page 68 X-Press Menu - EBL/VRM...
  • Page 69 Humminbird Radar Thank you for your attendance, can we answer any questions?
