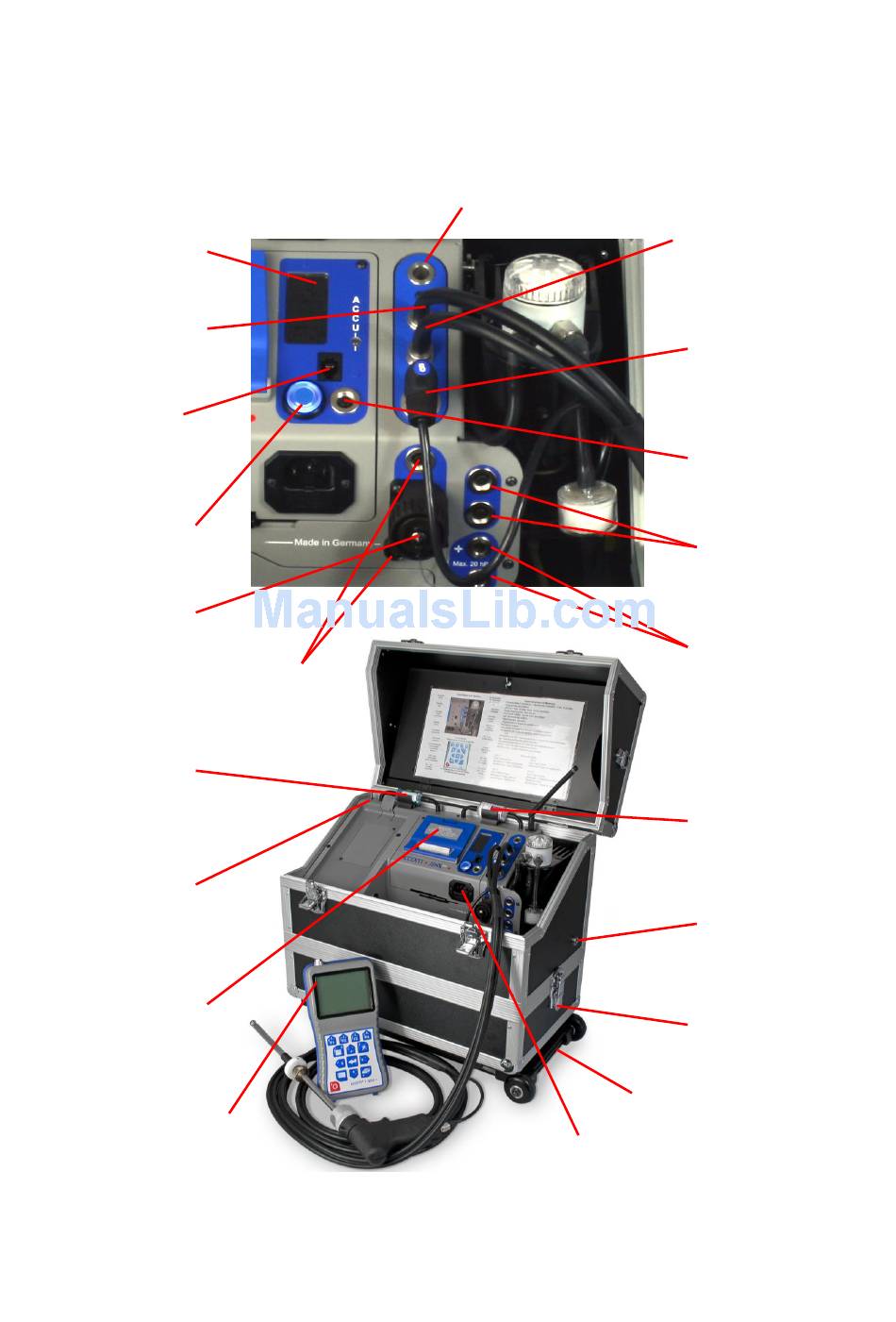

Instrument Design
J2KN Pro Base Unit
Info display
Draft/Pressure
connection
Data cable
connection
(used by ECOM
personnel only)
ON / OFF
button
Heated line power
supply connection
(optional)
Filter for
IR bench
(if applicable)
Fresh Air
Bypass Switch
(Pro IN only)
On-board
printer
Remote Display
Unit
(see next page)
Auxiliary
temperature
connections
Draft/Pressure
connection
Power cord
socket
Main gas
connection
Thermocouple
connection
Ambient air
temperature
sensor
Analogue
inputs
(optional)
Pitot tube
connections
(optional)
Nox/SOx
filter for
CO sensor
Water trap
drain hose
connection
Under case
(optional)
Trolley w/ wheels
(optional)
