Chapter 1: Introduction and Overview
14
6. Turn on the power switch.
7. The character LCD and VGA display, if connected, display various informational
messages and instructions. If an audio device is connected, the board offers words of
welcome in a variety of languages.
8. Use the rotary/push-button switch to control various board functions.
9. Optionally connect a PS/2-style keyboard to support one of the included
demonstrating designs.
10. Optionally connect a PC directly to the board using a standard 9-pin serial cable.
Power Supply Jumpers
(all jumpers installed)
J42 J41
J13
J12
J10

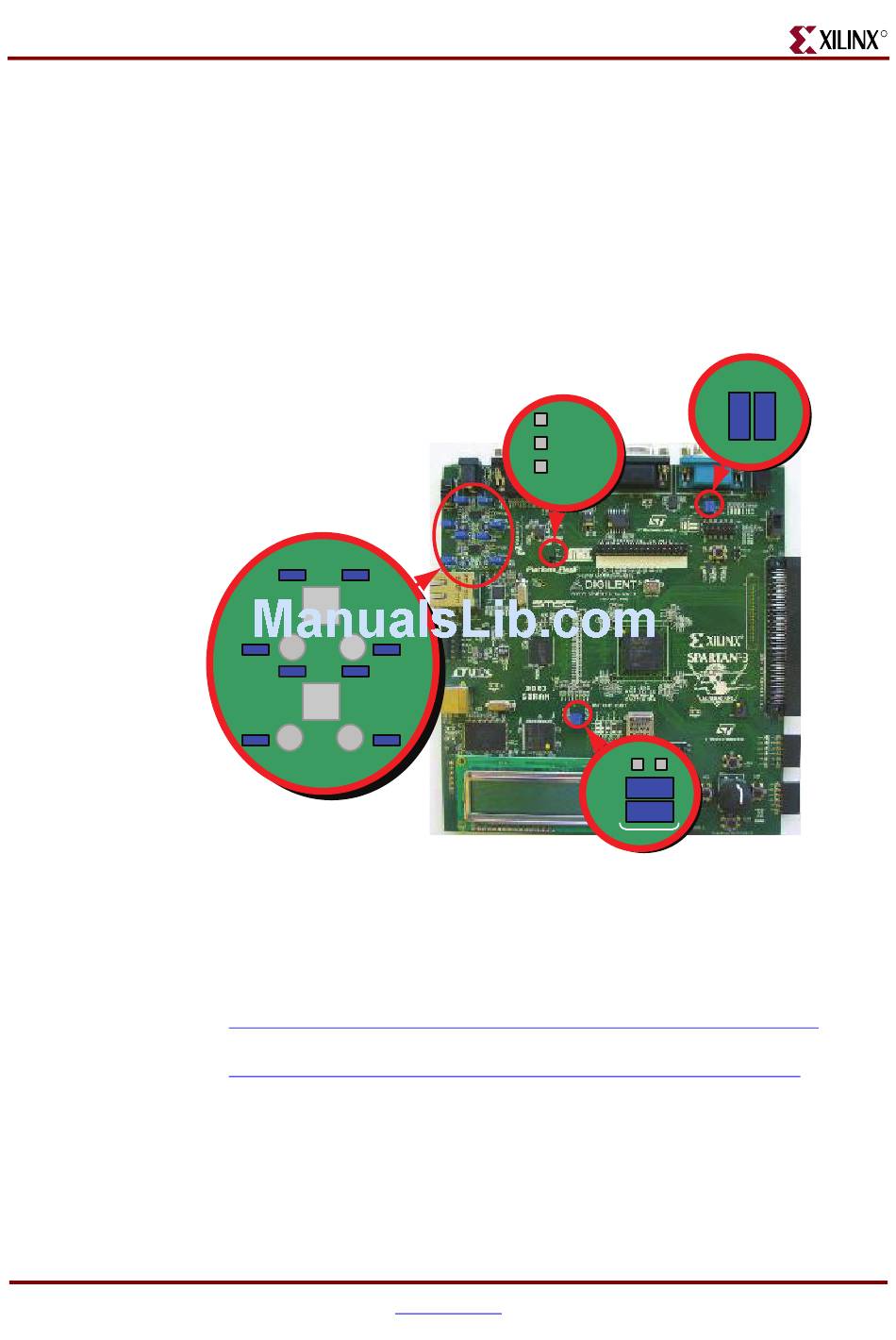

Figure 1-2: Default Jumper Settings for Starter Kit Board
For more information on the demonstration design, visit the Design Examples web page:
•
Spartan-3A/3AN FPGA Starter Kit Demo Design Overview
www.xilinx.com/products/boards/s3astarter/reference_designs.htm#demo
•
Restoring the "Out of the Box" Flash Programming
www.xilinx.com/products/boards/s3astarter/reference_designs.htm#out
Platform Flash Jumper
(jumper removed)
J46
J40
J11
J9
FPGA Mode Select Jumpers
www.xilinx.comSpartan-3A/3AN FPGA Starter Kit Board User Guide
SPI Flash Select Jumpers
(both jumpers installed, vertically)
DONE
CE
PROM
GND
M0
M1
M2
J26
(bottom two jumpers installed)
(SPI Mode)
UG334 (v1.1) June 19, 2008
R
J1
UG334_c1_02_052707
