Spartan-3A/3AN FPGA Starter Kit Board User
UG334 (v1.1) June 19, 2008
Creating and Programming Configuration Images for SPI Serial Flash
11. Select Bypass when prompted for the Platform Flash PROM programming file, as
shown in Figure 12-16.

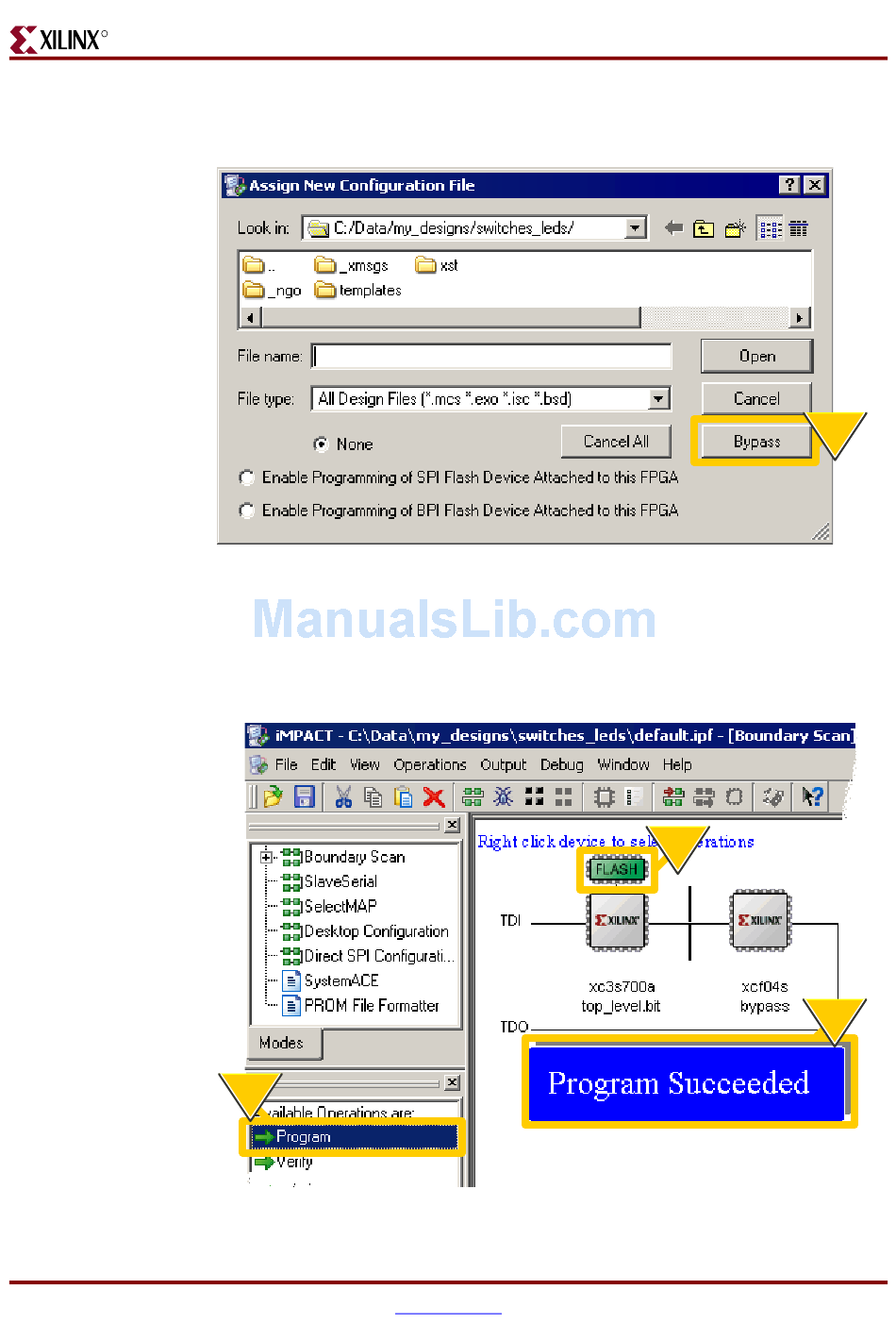

Figure 12-16: Bypass the Platform Flash PROM
12. As shown in Figure
XC3S700A Spartan-3A FPGA followed by the XCF04S Platform Flash PROM. A
similar display will be seen for the XC3S700AN Spartan-3AN FPGA. Click to highlight
the FLASH memory attached to the XC3S700A FPGA. This action enables the
command options shown in Step 13.
13
Figure 12-17: iMPACT Presents JTAG Chain, Shows Attached Flash PROM
Guidewww.xilinx.com
12-17, the iMPACT software then displays the JTAG chain for the
11
UG332_c4_28_032907
12
18
UG332_c4_25_032907
