Chapter 12: SPI Serial Flash
104
7.
As shown in
Figure
PROM.

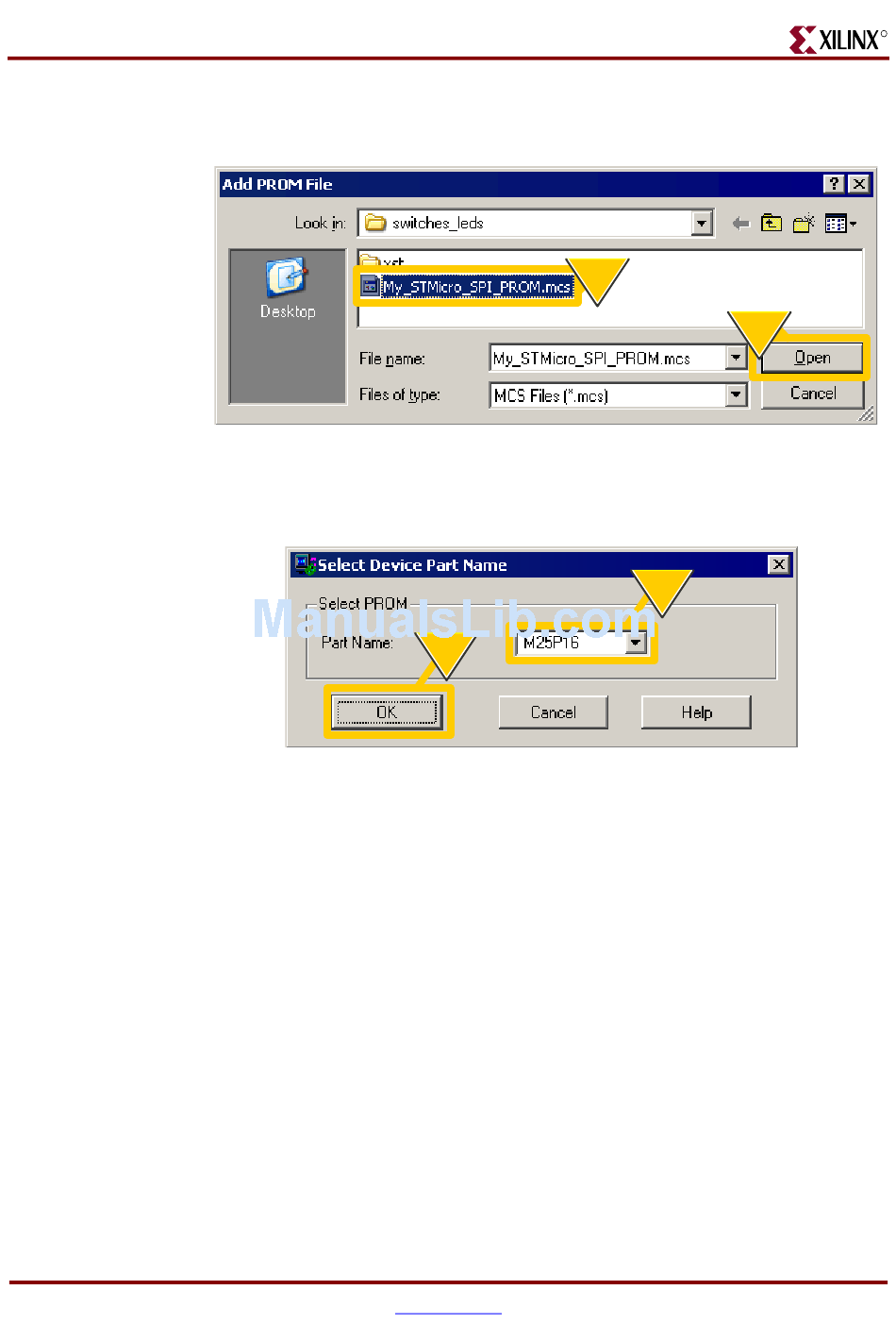

Figure 12-14: Select the SPI PROM Programming FIle
8.
Click Open.
9.
Select the part number for the attached SPI Flash PROM, as shown in
Figure 12-15: Select SPI Flash PROM Type
10. Click OK.
12-14, select the programming file for the attached SPI Flash
10
www.xilinx.comSpartan-3A/3AN FPGA Starter Kit Board User Guide
7
8
9
UG332_c4_27_032907
UG334 (v1.1) June 19, 2008
R
UG332_c4_26_032907
Figure
12-15.
