Civco GUS G10VP Operator's Manual

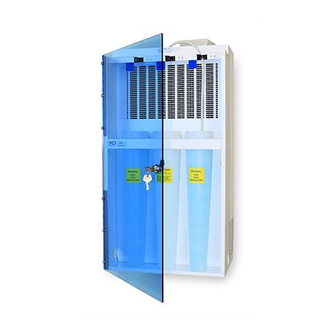

Wall-mounted disinfection soak station for transvaginal and transrectal ultrasound probes
Hide thumbs
Table of Contents

Advertisement

Quick Links

G10VP
Wall-Mounted
Disinfection Soak Station
For Transvaginal and Transrectal
Ultrasound Probes
Operator's Manual
Manufactured by:
CIVCO Medical Solutions
102 First Street South
Kalona, IA 52247 USA
Copyright © 2017 All Rights Reserved.
319.248.6757 / 800.445.6741
GUS® is a registered trademark of CIVCO Medical Solutions.
All other trademarks are property of their respective owners.
WWW.CIVCO.COM
Printed in the USA.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GUS G10VP and is the answer not in the manual?

Questions and answers

Related Manuals for Civco GUS G10VP

Summary of Contents for Civco GUS G10VP

  • Page 1 102 First Street South Kalona, IA 52247 USA Copyright © 2017 All Rights Reserved. 319.248.6757 / 800.445.6741 GUS® is a registered trademark of CIVCO Medical Solutions. All other trademarks are property of their respective owners. WWW.CIVCO.COM Printed in the USA.

  • Page 2: Table Of Contents

    GUS Disinfection Soak Station™ Table of Contents Principle of Operation Safety Precautions Environmental Conditions Ventilation Requirements Supply Ratings Warning Symbols Signal Words Quick Troubleshoot Installation and Setup Items Included Wall Mounting Instructions Using High-Level Disinfectants with GUS Step 1: Marking the Cable Step 2: Placing Probe in Container Step 3: Filling the Containers Step 4: Ready for Use...

  • Page 3: Principle Of Operation

    GUS Disinfection Soak Station™ Principle of Operation Your probe is suspended in the soaking container, preventing damage to the sensitive tip. Fumes are drawn into the unit away from the operator and into the filter. One of the containers is used for clean rinse water. This ensures that when the probe is removed from the unit for the final rinse, no high-level disinfectant will drip or off-gas.

  • Page 4: Warning Symbols

    4. Unscrew the fuse cover and remove the fuse. If the filament is damaged, replace it with a Type FSF 5 x 20mm 1 amp 250VAC. 5. If the unit is still not working, call CIVCO Medical Solutions at 1-800-445-6741. M0003_K...

  • Page 5: Installation And Setup

    GUS Disinfection Soak Station™ Installation and Setup Please check to ensure your new system arrived with the following parts. Items Included Small packet containing: Two hollow wall anchors and screws for wall mounting the unit ‘High-Level Disinfectant’ warning label Note: it is an OSHA requirement that containers holding high- level disinfectants be clearly marked as such.

  • Page 6: Using High-Level Disinfectants With Gus

    GUS Disinfection Soak Station™ 7. For masonry walls use a suitable lead or plastic shield and bolt. These shields are not supplied. 8. Remove the cardboard from the bottom of the unit and the tape on the fuse holder, which is on the left side of the soak station.

  • Page 7: Step 3: Filling The Containers

    GUS Disinfection Soak Station™ Practice this two or three times before you put the disinfectant into the container. This is really easier than it sounds and will insure the safety of your probe. Step 3: Filling the Containers 1. Plug in the unit and switch it on using the ON/OFF switch located on left side of unit. The red indicator will light when the unit is operating 2.

  • Page 8: Step 4: Ready For Use

    4. For cleaning containers, see "Cleaning the System." Repair and Modification Do not modify or repair the unit without reviewing with CIVCO Medical Solutions; contact CIVCO Medical Solutions to purchase replacement filters and parts. Before attempting to perform routine maintenance on the unit, thoroughly review and understand this manual for complete familiarization with the unit and its operation.

  • Page 9: Filter Life

    GUS Disinfection Soak Station™ Filter Life GUS® has a patented filter that, in normal everyday use, will have a six-month life. CIVCO Medical Solutions will automatically notify your facility 30 days prior to the replacement date and arrange for timely delivery of a replacement filter.

  • Page 10: Disposing Of Used High-Level Disinfectants

    Deactivation also protects the user from exposure to splashes and spills. CIVCO Medical Solutions manufactures Glute-Out®, a glycine-based neutralizer (part # 610-1099) which comes in a convenient single-use bottle. Glute-Out® is specifically for use with glutaraldehyde and OPA based disinfectants.

  • Page 11: Limited Warranty

    If the system is not working correctly or is defective, contact CIVCO Medical Solutions and we will repair or replace the device at our option during the warranty period.

  • Page 12: Registration Card

    GUS Disinfection Soak Station™ Registration Card Please complete and return the attached Warranty Card to CIVCO Medical Solutions. Call Technical Support at 1-800-445-6741 if you would like to be included in an annual filter replacement program. M0003_K G10VP...
