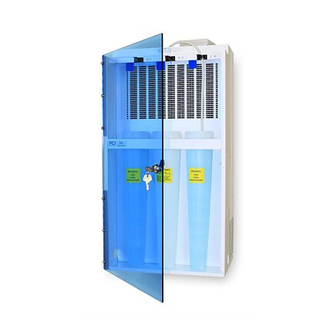

- Page 1 Disinfection Soak Stations For Transvaginal/Transrectal Ultrasound Probes & Endoscopes REF: G10-U2-EU G10VP-EU G10VPL-EU G10ENT-EU G14-U2-AC-EU G14-U3-EU G14KA-EU G14KAL-EU G14ENT-3-EU Operator’s Manual...
-
Page 2: Table Of Contents
GUS Disinfection Soak Station™ Contents Principle of Operation ......................3 Safety Precautions ......................... 4 Setting up your GUS....................... 5 Upon Delivery ................................5 GUS Components ................................. 5 Wall Mounting Installation Instructions ................. 6 Using High Level Disinfectants with your GUS ................. 7 For G10VP-EU, G10VPL-EU, G14KA-EU &... -
Page 3: Principle Of Operation
GUS Disinfection Soak Station™ Principle of Operation The GUS System allows Ultrasound Probes and/or Scopes to be immersed in a high-level disinfectant solution. The Probe and/or Scope is suspended in the soaking container, preventing damage to the sensitive tip. The system is designed to remove fumes from: •... -
Page 4: Safety Precautions
GUS Disinfection Soak Station™ Safety Precautions Signal Word The following signal words are used throughout this manual: WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. -
Page 5: Setting Up Your Gus
GUS Disinfection Soak Station™ Setting up your GUS Upon Delivery Match all items in the package with those on the list of components given below. Inspect each item for damage. If any components are missing or damaged or if you have any questions, do not use the system;... -
Page 6: Wall Mounting Installation Instructions
Apply the supplied labels as appropriate. Display the Warning Card on the wall in a visible location directly above or beside the unit. NOTE: Use of removable power cords not supplied by CIVCO Medical Solutions may affect the safety and performance of this device. 50010_F... -
Page 7: Using High Level Disinfectants With Your Gus
GUS Disinfection Soak Station™ Using High Level Disinfectants with your GUS The tip of your Ultrasound Probe and/or Scope is extremely delicate. CAUTION: Failure to follow these steps may result in expensive Probe or Scope damage. The connection between the strain relief and the Probe or Scope may NOT BE WATERTIGHT. -
Page 8: Step 3: Filling The Containers -For All Units
GUS Disinfection Soak Station™ Figure 3 Figure 4 Step 3: Filling the Containers –For ALL Units 1. Plug the power cord into the power inlet module, and plug the unit into a proper wall outlet. Switch the unit on using the ON/OFF switch located on left side of unit. The green indicator will light when the unit is operating 2. -
Page 9: Step 4: Ready For Use - For All Units
Probe or Scope. The following is a guide only. NOTE: Use of removable power cords not supplied by CIVCO Medical Solutions may affect the safety and performance of this device. NOTE: Follow your facility’s instructions for Personal Protective Equipment during cleaning and disinfecting. -
Page 10: For G10Ent-Eu, G14Ent-3-Eu, G10-U2-Eu, G14-U2-Ac-Eu, G14-U3-Eu - Only
GUS Disinfection Soak Station™ For G10ENT-EU, G14ENT-3-EU, G10-U2-EU, G14-U2-AC-EU, G14-U3-EU – ONLY 1. Place the scope into the soaking tube. 2. Align the light source cable with the top of the spring clip, push back on the blue plastic tab and slide the cable into the cushioned cable holder. -
Page 11: System Maintenance
, a glycine-based neutralizer (part # NG-QT) which comes in a convenient single-use bottle. Glute-Out is specifically for use with glutaraldehyde and OPA based disinfectants. CIVCO Medical Solutions also manufactures Oxid Out ®, a sodium-carbonate-based neutralizer (part # NO-QT) which comes in a convenient single-use bottle. Oxid Out is specifically for use with hydrogen- peroxide based disinfectants. -
Page 12: Cleaning
GUS Disinfection Soak Station™ 5. Replace with a new filter, making sure the airflow arrows are pointing to the rear of the machine. 6. Put the used filter into a plastic bag and dispose of it with other non-hazardous waste. 7. - Page 13 GUS Disinfection Soak Station™ CLEANING THE GUS CONTAINERS: • The containers that are supplied with the GUS Disinfection Soak Stations can be cleaned by the following methods: In an instrument washer/disinfector with a thermal • Manually cleaning with soap and water. Use the cleaning brush provided for ENT tubes. Rinse containers afterwards.
-
Page 14: Limited Warranty
This warranty does not include filters, acrylic, or disposal pump unless it can be determined that failure is due to defects in material or workmanship. If the system is not working correctly or is defective, contact CIVCO Medical Solutions, and we will repair or replace the unit at our option during the warranty period. -
Page 15: Appendix A: Troubleshooting
UNPLUG UNIT BEFORE REMOVING FUSE DRAWER. c) Squeeze the two tabs on the fuse drawer and pull outward to remove the fuses. d) If a filament is damaged, replace it with a CIVCO Medical Solutions approved Type FSF 5 x 20 mm 1 amp 250VAC. -
Page 16: Appendix B: Site Requirements
GUS Disinfection Soak Station™ APPENDIX B: SITE REQUIREMENTS Environmental Conditions • For indoor use only. • Altitude up to 2,000 meters. • Temperature range: 5°C to 40°C. • Main supply voltage fluctuations not to exceed +/- 10% of the nominal voltage. •... -
Page 17: Appendix C: Gus Product Specifications
GUS Disinfection Soak Station™ APPENDIX C: GUS PRODUCT SPECIFICATIONS GUS Product Specifications G10- GUS Model G10VP- G14-U2-AC- G14-U3- G14ENT-3- G10ENT-EU G10VPL-EU G14KA-EU G14KAL-EU Number of Probes and/or Scopes soaked Face Velocity (MPM) 13.7 13.7 13.7 13.7 15.2 15.2 15.2 15.2 15.2 Electrical (240V 50/60Hz) 0.5A... -
Page 18: Ul Approval
Kalona, IA 52247 USA Tel: 1-800-445-6741 Fax: 1-877-329-2482 Website: WWW.CIVCO.COM Copyright © 2017 All Rights Reserved. is a registered trademark of CIVCO Medical Solutions. ® All other trademarks are property of their respective owners. Printed in the USA. 50010_F GUS 10-14 (International) Series...
