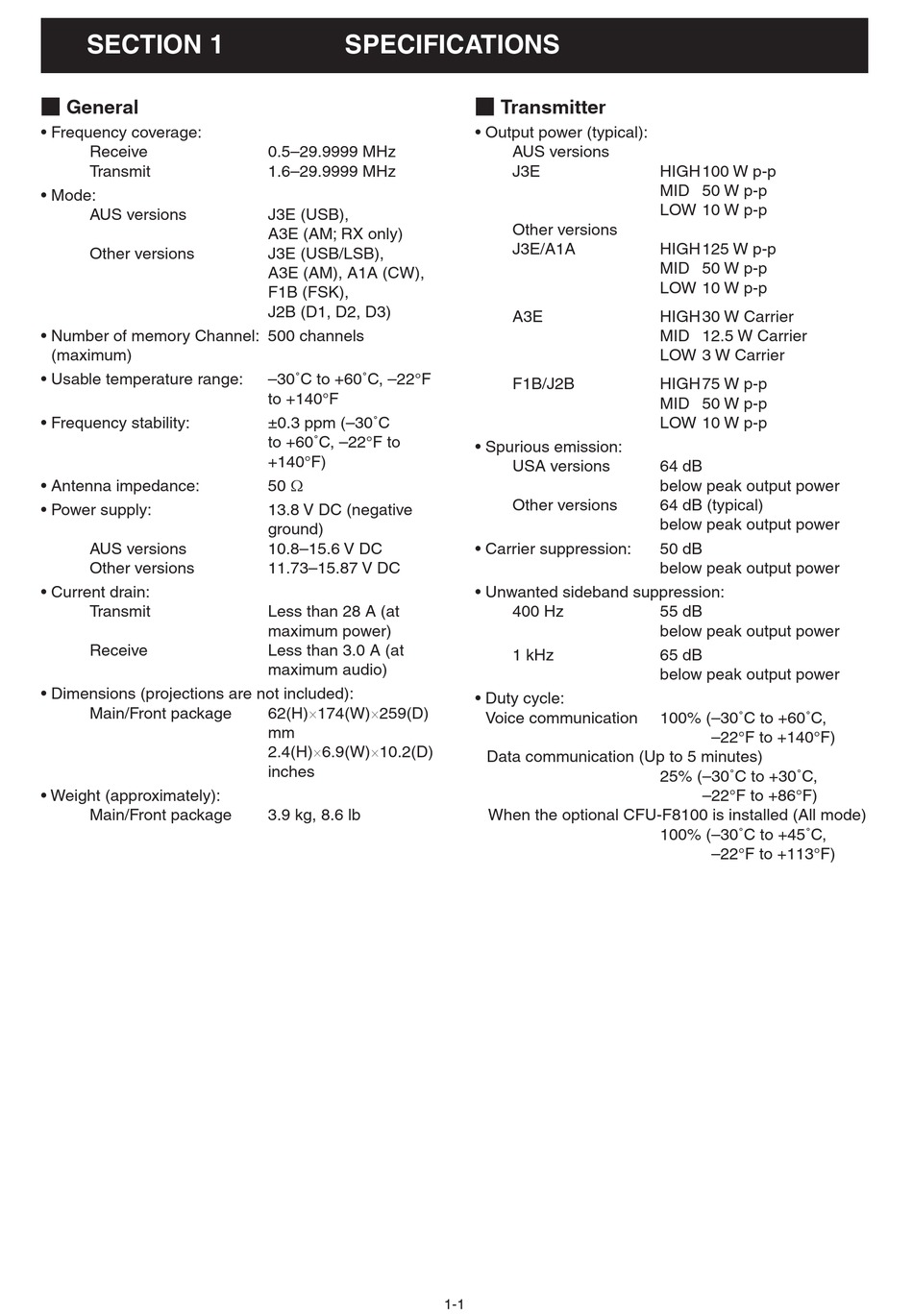

SECTION 1.
M General
• Frequency coverage:
Receive
Transmit
• Mode:
AUS versions
Other versions
• Number of memory Channel: 500 channels
(maximum)
• Usable temperature range:
• Frequency stability:
• Antenna impedance:
• Power supply:
AUS versions
Other versions
• Current drain:
Transmit
Receive
• Dimensions (projections are not included):
Main/Front package
• Weight (approximately):
Main/Front package

SPECIFICATIONS

0.5–29.9999 MHz
1.6–29.9999 MHz
J3E (USB),
A3E (AM; RX only)
J3E (USB/LSB),
A3E (AM), A1A (CW),
F1B (FSK),
J2B (D1, D2, D3)
–30˚C to +60˚C, –22°F
to +140°F
±0.3 ppm (–30˚C
to +60˚C, –22°F to
+140°F)
50 
13.8 V DC (negative
ground)
10.8–15.6 V DC
11.73–15.87 V DC
Less than 28 A (at
maximum power)
Less than 3.0 A (at
maximum audio)
62(H)174(W)259(D)
mm
2.4(H)6.9(W)10.2(D)
inches
3.9 kg, 8.6 lb
M Transmitter
• Output power (typical):
AUS versions
J3E
Other versions
J3E/A1A
A3E
F1B/J2B
• Spurious emission:
USA versions
Other versions
• Carrier suppression:
• Unwanted sideband suppression:
400 Hz
1 kHz
• Duty cycle:
Voice communication
Data communication (Up to 5 minutes)
When the optional CFU-F8100 is installed (All mode)
1-1
HIGH 100 W p-p
MID 50 W p-p
LOW 10 W p-p
HIGH 125 W p-p
MID 50 W p-p
LOW 10 W p-p
HIGH 30 W Carrier
MID 12.5 W Carrier
LOW 3 W Carrier
HIGH 75 W p-p
MID 50 W p-p
LOW 10 W p-p
64 dB
below peak output power
64 dB (typical)
below peak output power
50 dB
below peak output power
55 dB
below peak output power
65 dB
below peak output power
100% ( –30˚C to +60˚C,
–22°F to +140°F)
25% ( –30˚C to +30˚C,
–22°F to +86°F)
100% ( –30˚C to +45˚C,
–22°F to +113°F)
